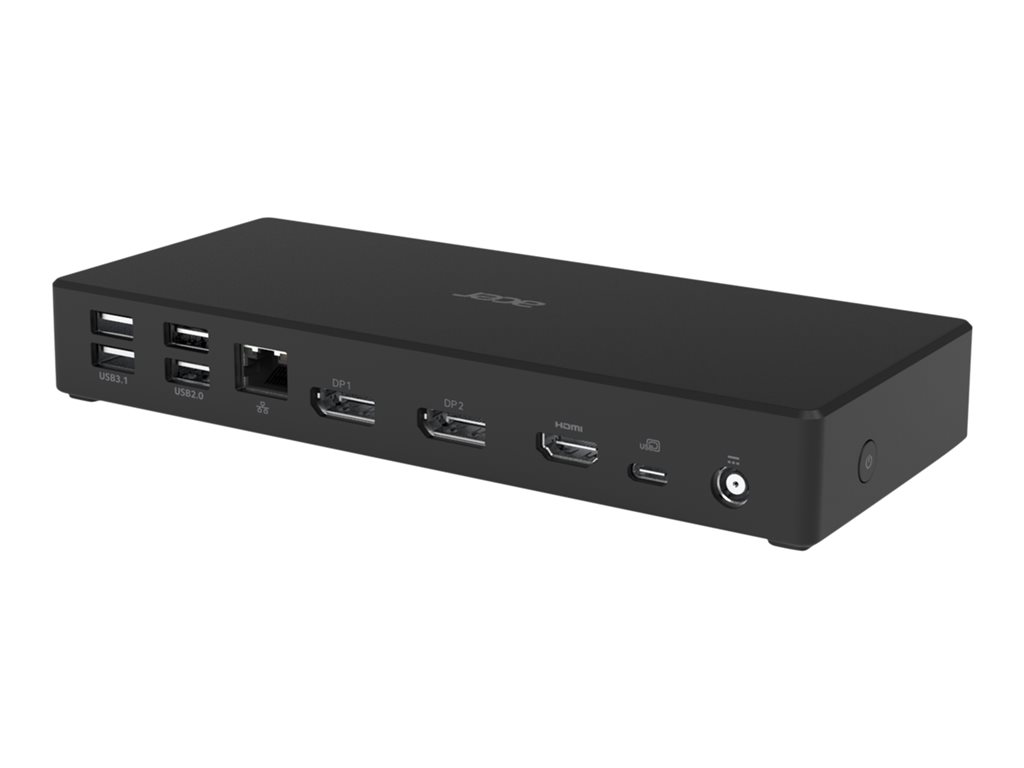

Docking station - USB-C - HDMI, DP - 1GbE - 135 Watt
| Main Specifications | |
|---|---|
| Product Description | Acer USB Type-C Dock M501 ADK243 - docking station - USB-C - HDMI, DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | HDMI, DP |
| Dimensions (WxDxH) | 3.5 in x 8.3 in x 1.3 in |
| Weight | 8.46 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter 135 Watt Power Provided |
| General | |
| Product Type | Docking station |
| Width | 3.5 in |
| Depth | 8.3 in |
| Height | 1.3 in |
| Weight | 8.46 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x headphones / speakers ¦ 2 x USB-C 3.1 Gen 1 (data only) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x network ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort (1.4) ¦ 1 x display / video - HDMI - 19 pin HDMI 2.0 ¦ 1 x USB-C with Power Delivery (85 W) |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), retail packaging |
| Security Slot Type | Kensington security slot |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Power Provided | 135 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Video | |
| Max Resolution Details | 4096 x 2160 - 60 Hz (Single Display (DisplayPort 1.4 / HDMI)) ¦ 4096 x 2160 - 60 Hz (Dual Display (DisplayPort 1.4 + HDMI / 2 x DisplayPort 1.4)) ¦ 4096 x 2160 - 30 Hz (Triple Display (2 x DisplayPort 1.4 + HDMI)) |
| System Requirements | |
| OS Required | Microsoft Windows 10 / 11 |
