Digital signage player - 1200
| Main Specifications | |
|---|---|

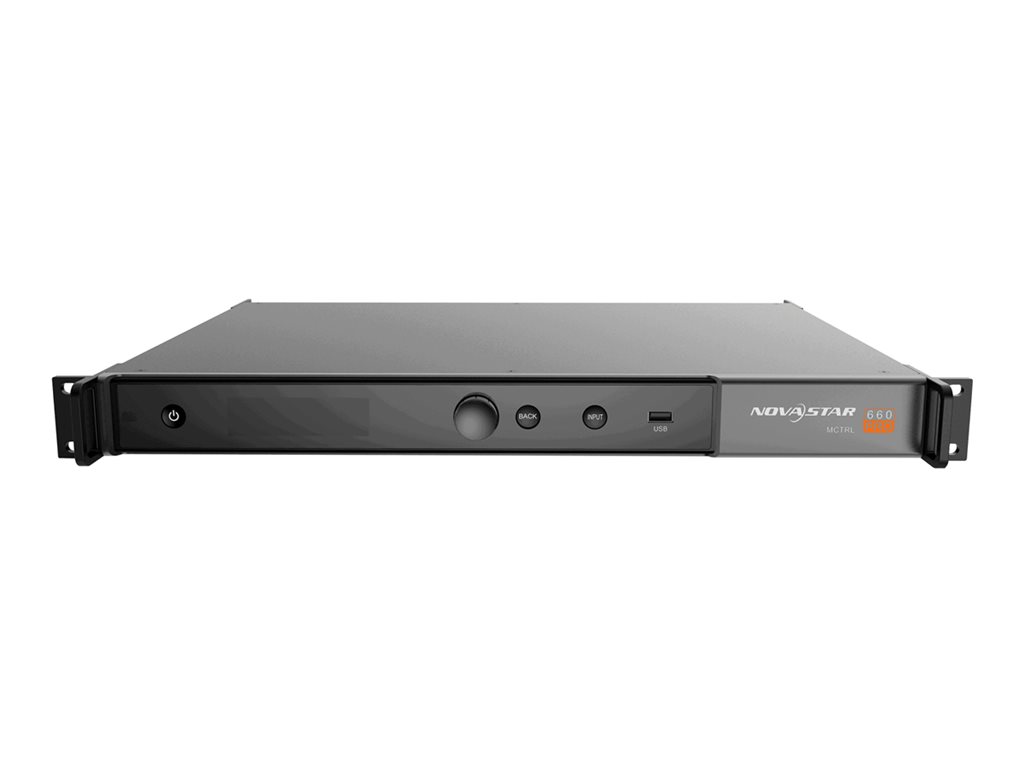

| Product Description | Novastar MCTRL660 PRO - digital signage player |
| Device Type | Digital signage player |
| Dimensions (WxDxH) | 19 in x 14 in x 2 in |
| Resolution | 1200 |
| Display Type | OLED |
| Interfaces | 3G-SDI, HDMI, DVI, USB 2.0, Gigabit Ethernet |
| Included Accessories | Power cable, network cable, USB cable, HDMI cable, DVI cable |
| General | |
| Device Type | Digital signage player |
| Width | 19 in |
| Depth | 14 in |
| Height | 2 in |
| Weight | 10.14 lbs |
| Interfaces | 3G-SDI, HDMI, DVI, USB 2.0, Gigabit Ethernet |
| Key Features | Digital audio player, digital photo viewer, digital video player |
| Features | 1ms ultra low latency, image mirror, image rotation |
| Miscellaneous | |
| Included Accessories | Power cable, network cable, USB cable, HDMI cable, DVI cable |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Video | |
| Resolution | 1200 |
| Connectivity | |
| Connections | 3G-SDI input ¦ HDMI input ¦ DVI input (single link) ¦ 10 x LAN (Gigabit Ethernet) ¦ 2 x optical output ¦ 3G-SDI output ¦ HDMI output ¦ DVI output ¦ USB (front) ¦ USB - USB type B (rear) ¦ USB - USB type A (rear) ¦ GENLOCK input ¦ GENLOCK loop |
| Display | |
| Display Type | OLED |
| Video Output | |
| Max Resolution | DVI-D: 1920 x 1200, HDMI: 1920 x 1200, 3G-SDI: 1920 x 1080 |
| Power Device | |
| Power Source | Integrated power supply |
| Output | AC 100-240 V |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.7 in |
| Shipping Depth | 17.3 in |
| Shipping Height | 6.9 in |
