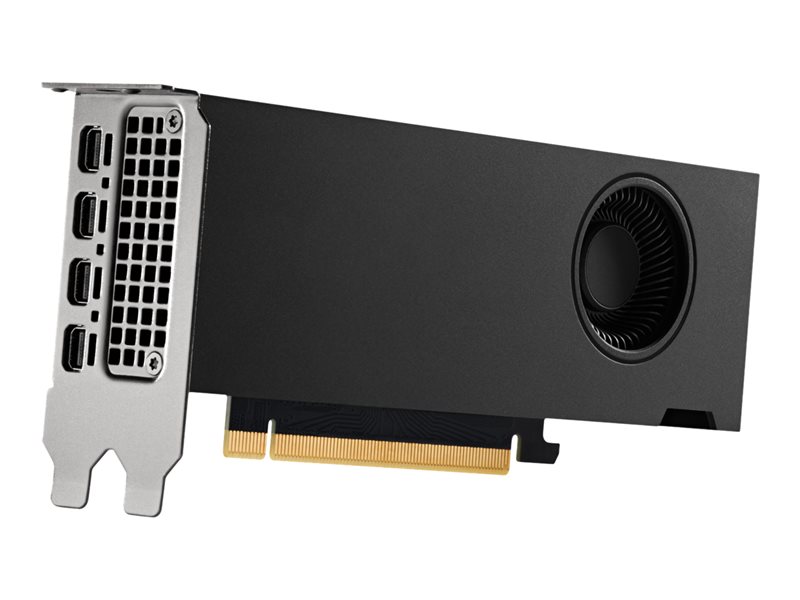

Graphics card - RTX A4500 - 20 GB GDDR6 - PCIe 4.0 x16 - 4 x DisplayPort - for ThinkSystem SR650 V3; SR655 V3; SR665 V3; SR850 V3; SR860 V3; ST650 V3
| Main Specifications | |
|---|---|
| Product Description | NVIDIA - graphics card - RTX A4500 - 20 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA RTX A4500 |
| Memory | 20 GB GDDR6 |
| CUDA Cores | 7168 |
| Memory Interface | 320-bit |
| Max Resolution | 7680 x 4320 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x DisplayPort |
| API Supported | DirectX 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3, CUDA 11.6, DirectCompute, OpenCL 3.0 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Designed For | ThinkSystem SR650 V3 7D75, 7D76; SR655 V3 7D9E; SR665 V3 7D9A; SR850 V3 7D96; SR860 V3 7D93; ST650 V3 7D7A |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA RTX A4500 |
| CUDA Cores | 7168 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x DisplayPort |
| API Supported | DirectX 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3, CUDA 11.6, DirectCompute, OpenCL 3.0 |
| Features | NVIDIA Ampere GPU technology, Error Correcting Codes (ECC) Memory, NVIDIA Mosaic, Nvidia CUDA technology, HDCP |
| Memory | |
| Size | 20 GB |
| Technology | GDDR6 SDRAM |
| Bus Width | 320-bit |
| Bandwidth | 640 GBps |
| Miscellaneous | |
| Power Consumption Operational | 200 watt |
| Software Included | NVIDIA RTX Experience |
| Compliant Standards | DisplayPort 1.4a, HDCP 2.2 |
| Depth | 6.6 in |
| Height | 2.7 in |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem SR650 V3 7D75, 7D76 ¦ Lenovo ThinkSystem SR655 V3 7D9E ¦ Lenovo ThinkSystem SR665 V3 7D9A ¦ Lenovo ThinkSystem SR850 V3 7D96 ¦ Lenovo ThinkSystem SR860 V3 7D93 ¦ Lenovo ThinkSystem ST650 V3 7D7A |
