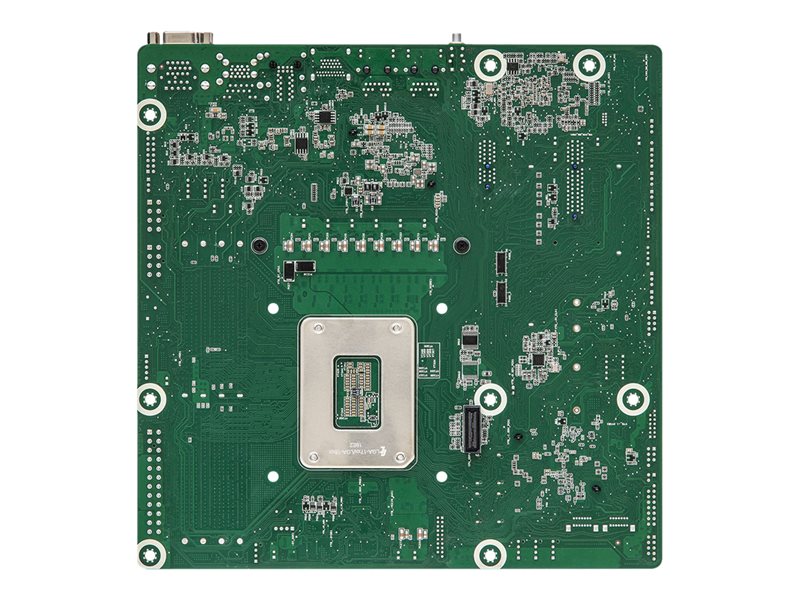

Motherboard - micro ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

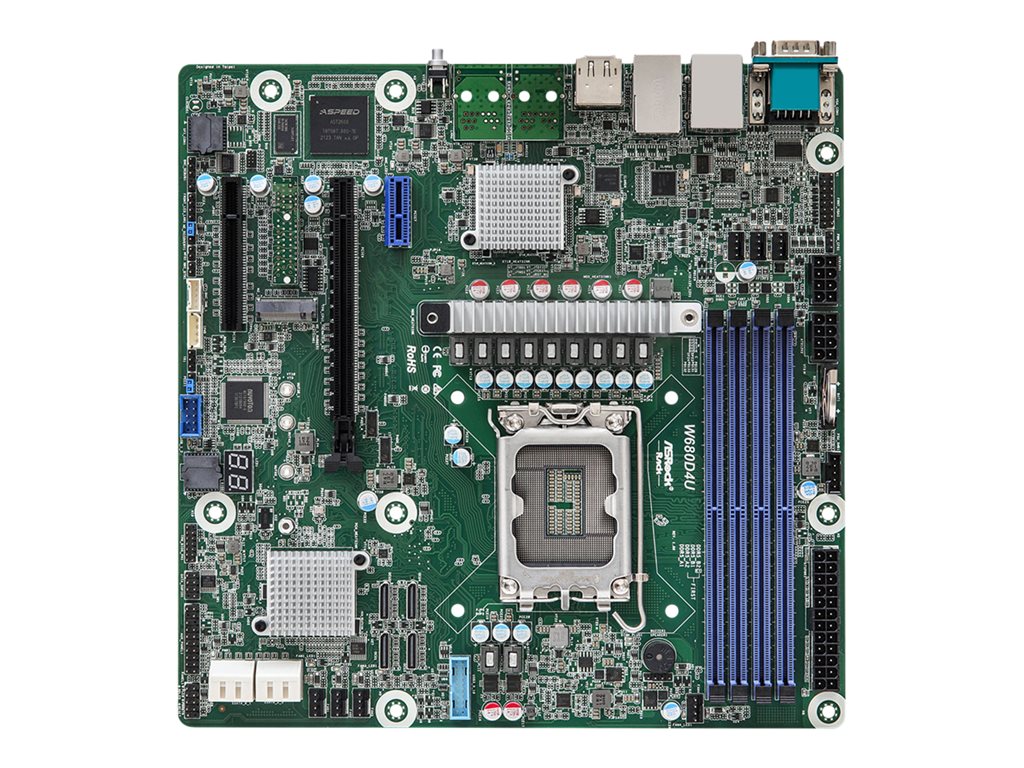

| Product Description | ASRock Rack W680D4U - motherboard - micro ATX - LGA1700 Socket - W680 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel W680 |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 4 x OCuLink port, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel W680 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) ¦ 1 x PCIe 4.0 x8 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x OCuLink ¦ PCIe 4.0 -connectors: 3 x OCuLink |
| RAID Features | Intel Rapid Storage Technology |

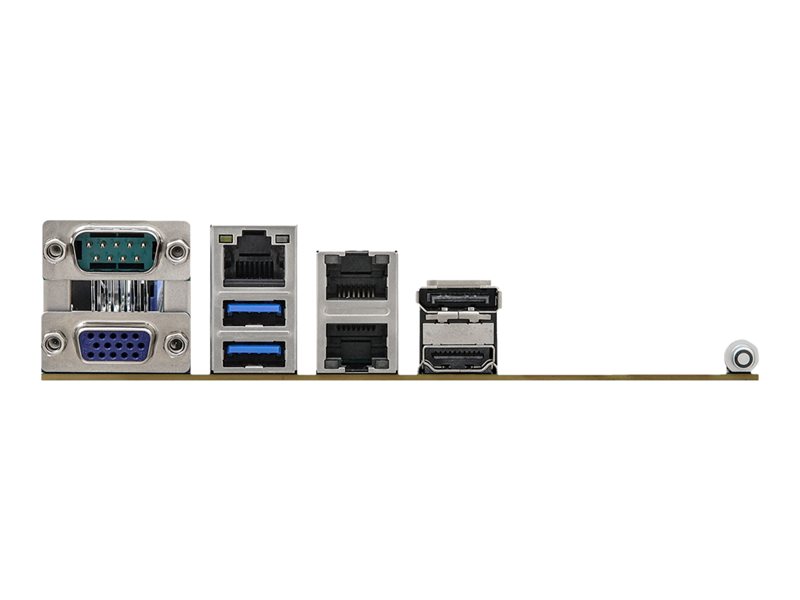

| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x serial ¦ DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 1 x IPMI |
| Internal Interfaces | 1 x speaker - header ¦ 1 x VGA - header ¦ 1 x SGPIO - header ¦ 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | iKVM support, IPMI support, SPI BIOS flashing, ACPI 6.4 support, SMBIOS 2.8 support, UEFI BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Hardware Features | vMedia support, ASRock Rack Instant Flash, Windows 11 compatible |
| LAN | |
| Network Controller | Intel I210 / Realtek RTL8211F |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz, 4400 MHz, 3600 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
