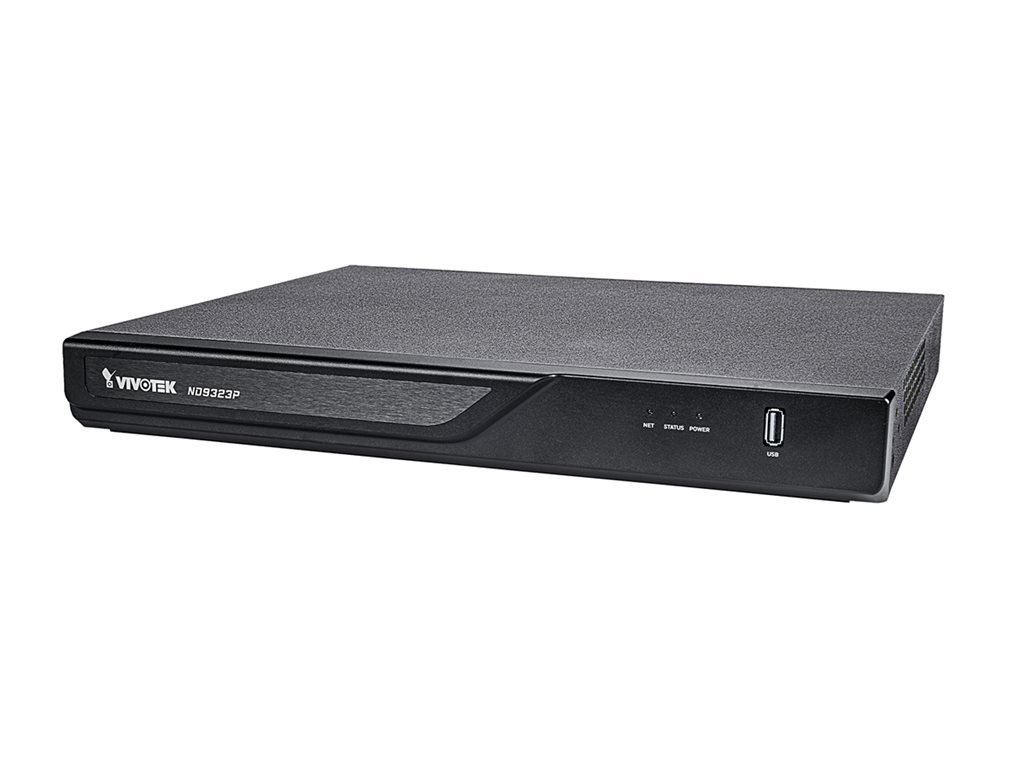

NVR + camera(s) - wired (GbE) - 8 channels - 1 x 2 TB - 4 camera(s) - dome - PS CMOS
| Main Specifications | |
|---|---|
| Product Description | Vivotek NVR + camera(s) - wired (GbE) |
| System | NVR + camera(s) - wired - Ethernet 10Base-T/100Base-TX/1000Base-T |
| Security DVR | 8 channels |
| Hard Drive | 1 x 2 TB |
| Camera | 4 cameras - outdoor - dome - night vision |
| Electronic Shutter Speed | 1/5 - 1/32,000 |
| General | |
| System | NVR + camera(s) - wired |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Features | Power over Ethernet (PoE), Embedded Linux OS |
| Package Content | 4 cameras, NVR |
| Hard Drive | |
| Quantity Installed | 1 |
| Quantity Supported | 1 |
| Capacity | 2 TB |
| Connections | |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Network Port | 10/100/1000Base-T |
| Other Ports | USB 3.0 x 1, USB 2.0, mini-phone stereo 3.5 mm x 2 |
| Dimensions & Weight | |
| Details | NVR: 14.4 in x 12.6 in x 1.8 in - 5.5 lbs ¦ Camera: 0.4 in x 0.4 in x 3.3 in - 16.4 oz |
| Security DVR | |
| Video Channels | 8 |
| Frame Rate (Playback) | 120 fps, 240 fps, 30 fps |
| Image Resolution | 1280x720, 1920x1080, 3840x2160 |
| Compression Format | MJPEG, H.264, H.265, G.711, G.726, JPEG |
| Record Events | Continuous, event, manual, scheduled |
| Features | Watermark, schedule backup, event notification, Pan/Tilt/Zoom support, picture-In-picture (PIP), manual backup, Instant Playback Fisheye Dewarp, smartphone support |
| Video Server | |
| Features | ONVIF compliant |
| Cameras | |
| Quantity | 4 cameras |
| Camera Type | Outdoor - dome |
| Sensor | PS CMOS - 1/3.1" - 2 Megapixel |
| Night Vision | Yes |
| Infrared LEDs | 1 |
| Infrared Distance | 98 ft |
| Signal-To-Noise Ratio | 59 dB |
| Electronic Shutter Speed | 1/5 - 1/32,000 |
| Focal Length | 2.8 mm |
| Lens Iris | Fixed iris |
| Voltage | PoE |
| Power Consumption | 6 watt |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Operating Humidity | 0-95% |
| Compliant Standards | IP66, IK10 |
