10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots - System bus extender
| Main Specifications | |
|---|---|
| Product Description | Startech 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots - system bus extender |
| Product Type | System bus extender |
| Dimensions (WxDxH) | 16.2 in x 5.4 in x 5.6 in |
| Weight | 5.07 lbs |
| Color | Black |
| Power | Power adapter AC 100-240 V |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | System bus extender |
| Width | 16.2 in |
| Depth | 5.4 in |
| Height | 5.6 in |
| Weight | 5.07 lbs |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | 4 (total) / 4 (free) x PCI Express 2.0 x1 |
| Interfaces | 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x power - terminal block |
| Compatible Slots | 1 x PCI Express 2.0 x2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Technical support - assistance - lifetime |
| Miscellaneous | |
| Cables Included | 1 x USB-C screw-lock cable - external - 6 ft |

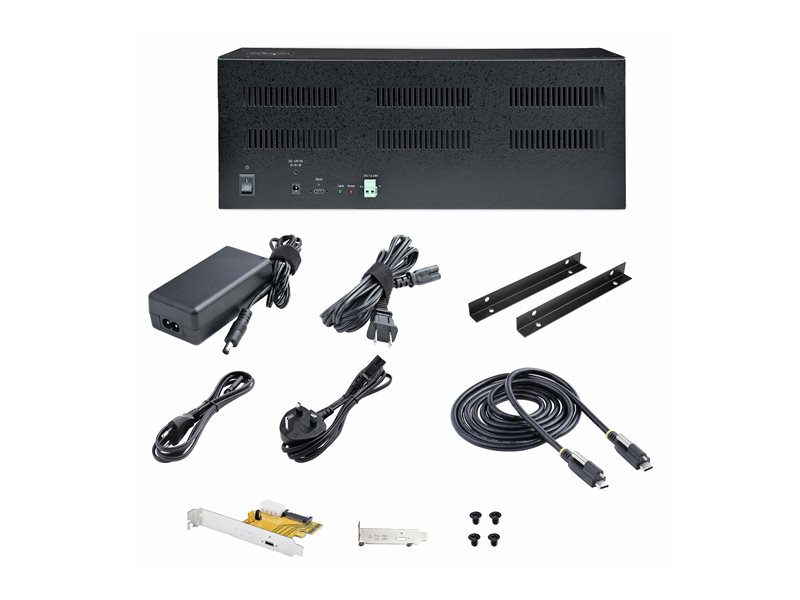

| Included Accessories | Screws, low profile bracket, 2 x mounting brackets, PCIe x2 to USB-C host card, terminal block connector |
| Features | Wake on LAN, vented, 2 LED indicators, full-length, on/off power switch, up to 10Gbps data transfer, Asmedia ASM1806 chipset, PCI Express Advanced Error Reporting (AER), EndPoint Cyclic Redundancy Check (ECRC) |
| Compliant Standards | WEEE, RCM, SECC |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.5 in |
| Shipping Depth | 7.9 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 13.23 lbs |
