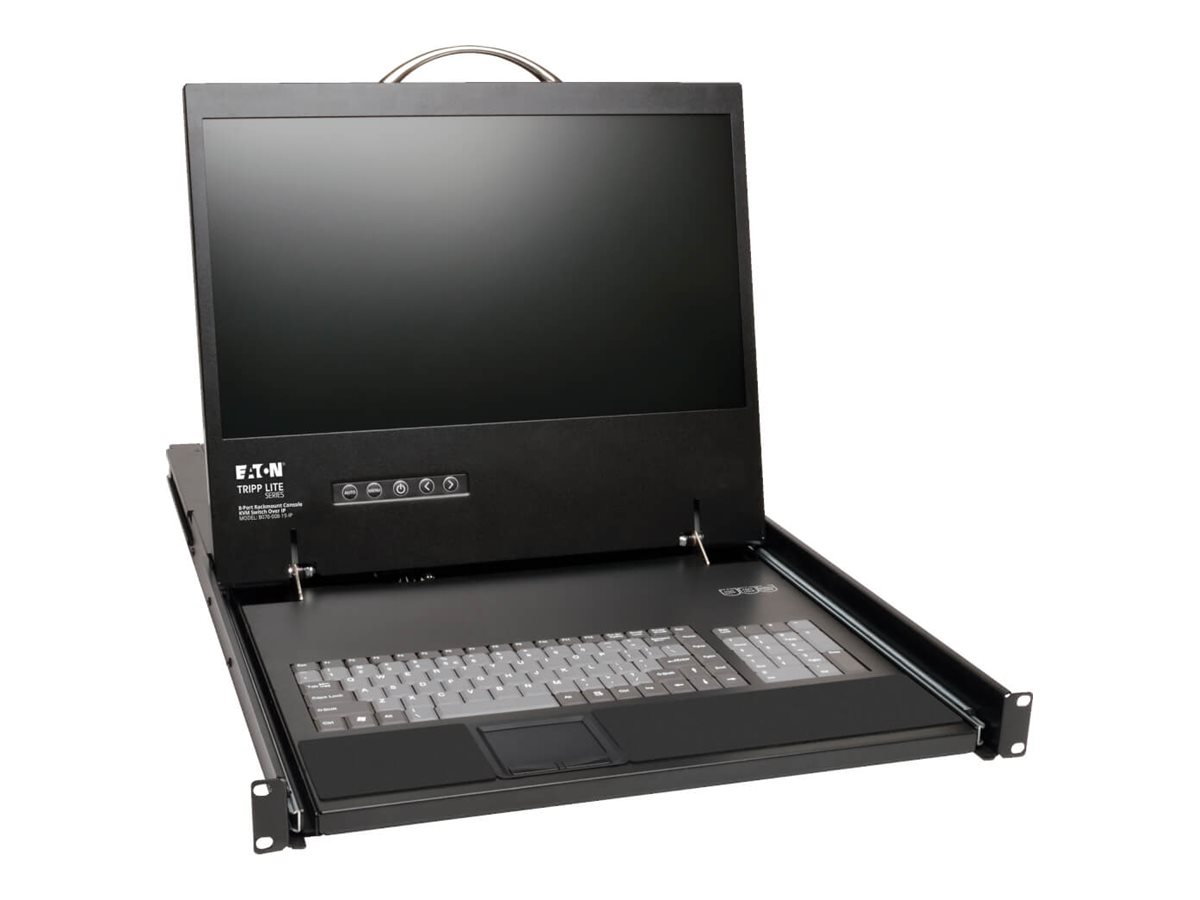

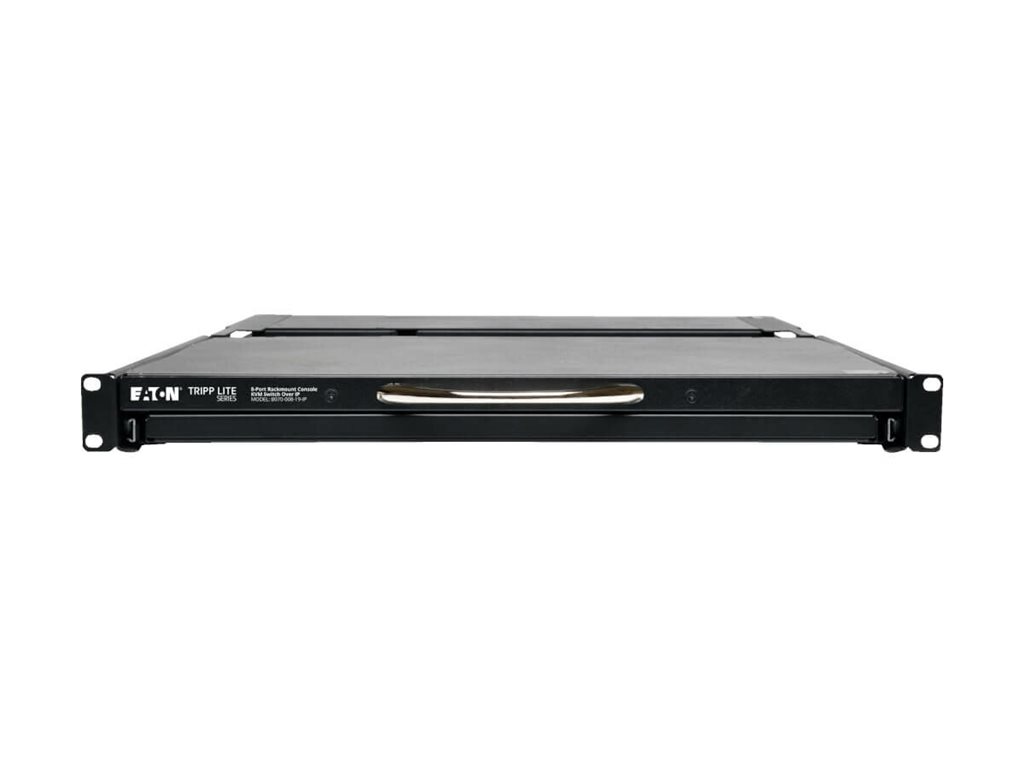

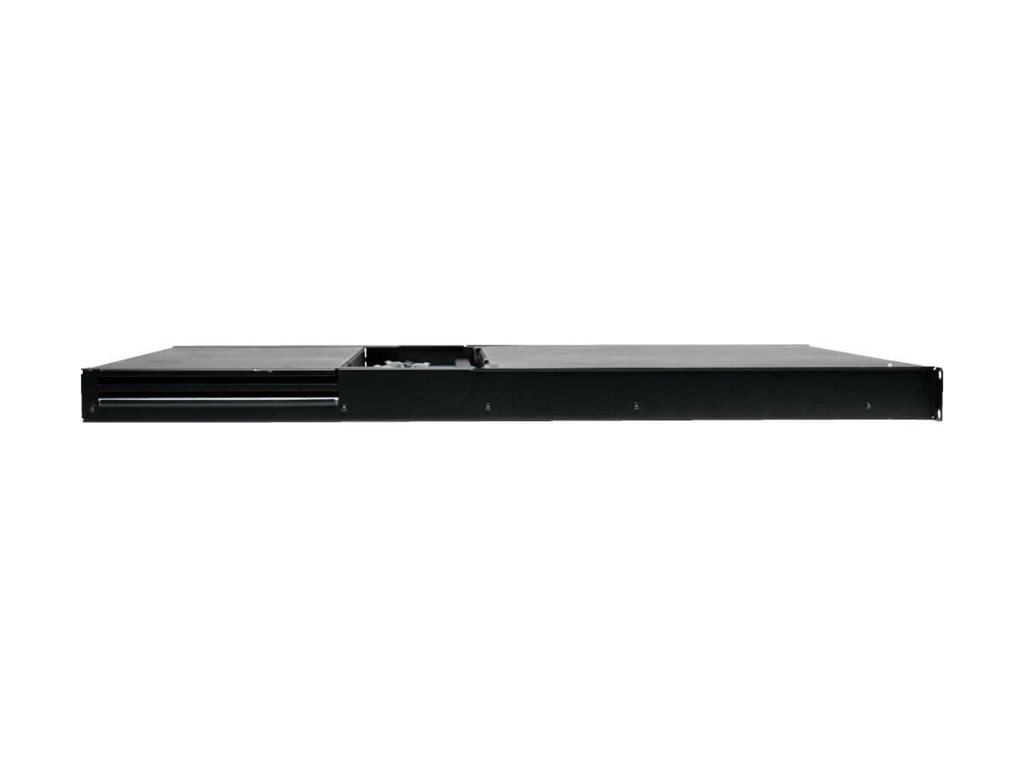

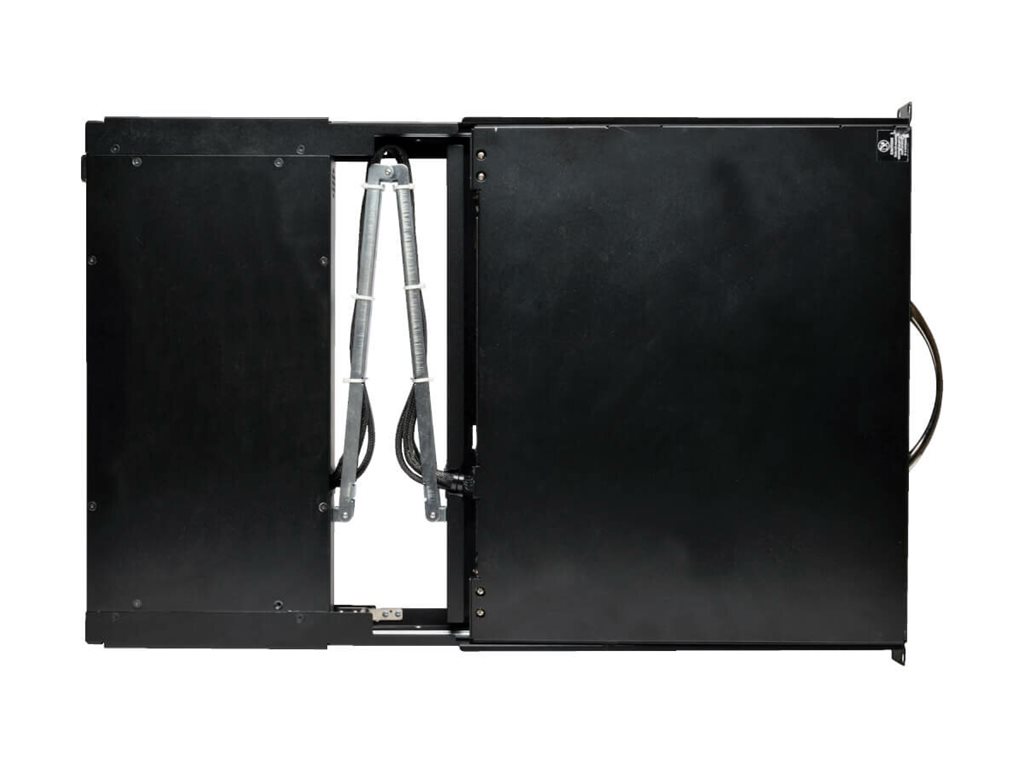

KVM console with KVM switch - 8 ports - PS/2, USB - 19" - rack-mountable - 1366 x 768 - black - 1U
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 8-Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM TAA - KVM console - 19" |
| Device Type | KVM console - 19" |
| KVM Switch | PS/2, USB - 8 ports |
| Features | Keyboard, touchpad, 8-port KVM switch |
| Native Resolution | 1366 x 768 |
| Voltage | AC 120/230 V (50/60 Hz) |
| Color | Black |
| Dimensions (WxDxH) | 17.4 in x 28.4 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 28.66 lbs |
| Compliant Standards | RoHS, 128-bit SSL |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 19" |
| Built-in Devices | 8-port KVM switch |
| Native Resolution | 1366 x 768 |
| Color | Black |
| Dimensions (WxDxH) | 17.4 in x 28.4 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 28.66 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Hot keys, handle |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS, 128-bit SSL |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 30 Watt |
| Power Consumption Stand by | 5 Watt |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Connectivity | |

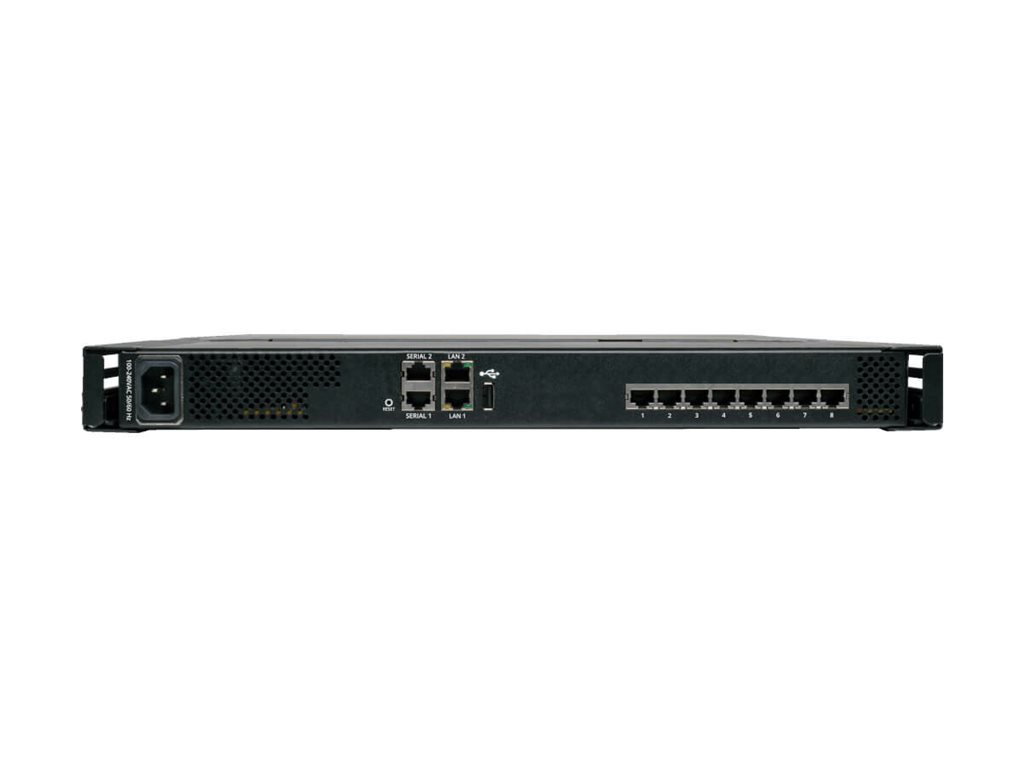

| Interfaces | 8 x KVM (RJ-45) ¦ 2 x network (RJ-45) ¦ 2 x serial (RJ-45) ¦ USB |
| KVM | |
| Type | KVM switch - 8 ports |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Features | User access management |
| Input | |
| Type | Keyboard, touchpad |
