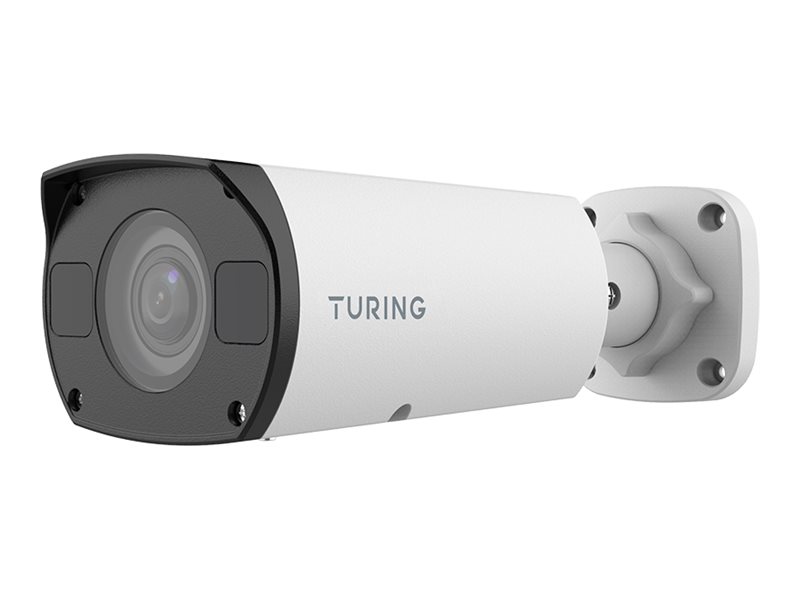

Network surveillance camera - bullet - ingress protection / vandal resistant - color (Day&Night) - 8 MP - 3840 x 2160 - audio - LAN 10/100 - H.265, H.264, Ultra 265, MJPEG - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | Turing SMART Series TP-MMB8AV2 - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - ingress protection / vandal resistant |
| Audio | Yes |

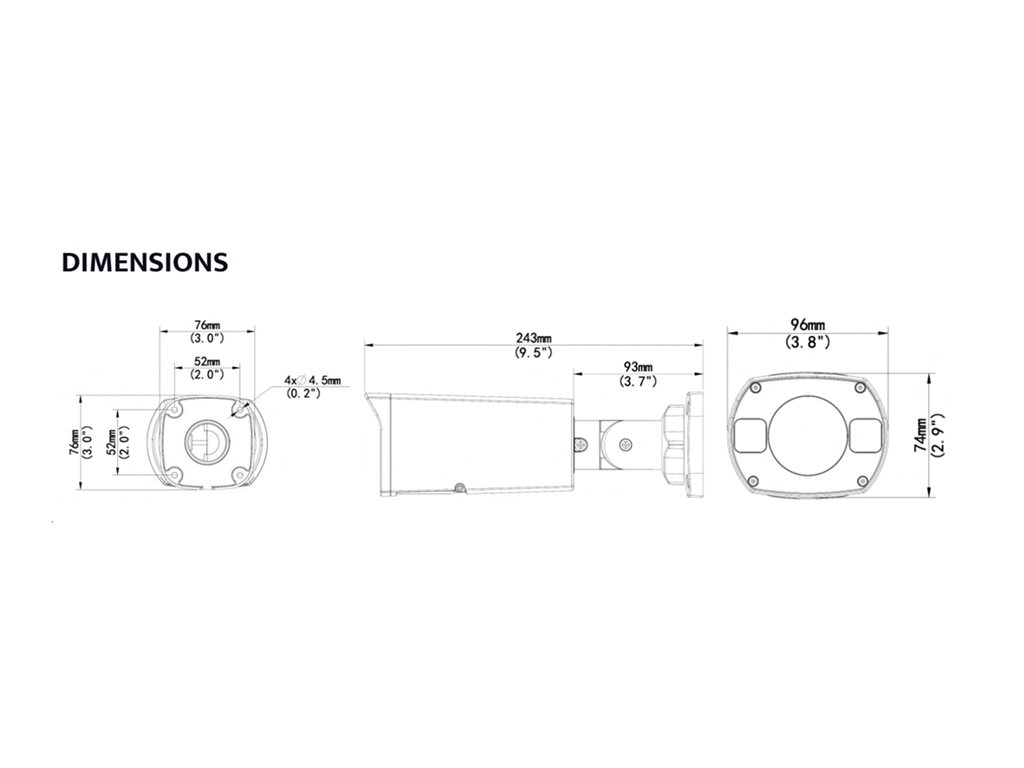

| Dimensions (WxDxH) | 9.6 in x 3.8 in x 2.9 in |
| Weight | 32.45 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 4.3 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 8 MP |
| Minimum Illumination | 0.0025 lux - color - F1.6 - AGC on ¦ 0 lux - IR |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.6 |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | 120 dB dynamic range, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 850nm illuminator, Audio Detection, Defog, enter area detection, image flip, intrusion detection, line-crossing detection, motion detection, non-motor vehicle detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF support, People Detection, privacy masking (up to 4 areas), tampering alarm, Vehicle Detection, WDR technology, 6KV surge protection |
| Environmental Parameters (operating) | -22 °F - 140 °F; ? 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.711 |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 9.6 in |
| Depth | 3.8 in |
| Height | 2.9 in |
| Weight | 32.45 oz |
| Expansion / Connectivity | |
| Ports | RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card |
| Miscellaneous | |
| Compliant Standards | IK10, IP67, FCC, UL |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 10.5 watt |
| Software / System Requirements | |
| Software Included | Core AI (1 year license) |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | ? 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - ingress protection / vandal resistant |
| Digital Video Format | H.265, H.264, Ultra 265, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Minimum Illumination | 0.0025 lux - color - F1.6 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 720 x 576 |
| Frame Rate (max) | 30 frames per second |
| Features | 120 dB dynamic range, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 850nm illuminator, Audio Detection, Defog, enter area detection, image flip, intrusion detection, line-crossing detection, motion detection, non-motor vehicle detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF support, People Detection, privacy masking (up to 4 areas), tampering alarm, Vehicle Detection, WDR technology, 6KV surge protection |
| Lens Construction | |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 29.2 - 107.4 |
| Vertical Field of View (degree) | 16.3 - 54 |
| Diagonal Field of View (degree) | 33.1 - 111 |
| Image Sensor | |
| Type | 8 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
