Network extender - 1GbE - 2 ports - up to 656 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet - network extender - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Network extender |
| Ports Qty | 2 |
| Form Factor | Wall mountable |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 656 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 6.6 in x 2.9 in x 1.7 in |
| Weight | 9.38 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network extender |
| Form Factor | Wall mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++ input) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female - 30 W ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE output) - RJ-45 female - 15.4 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

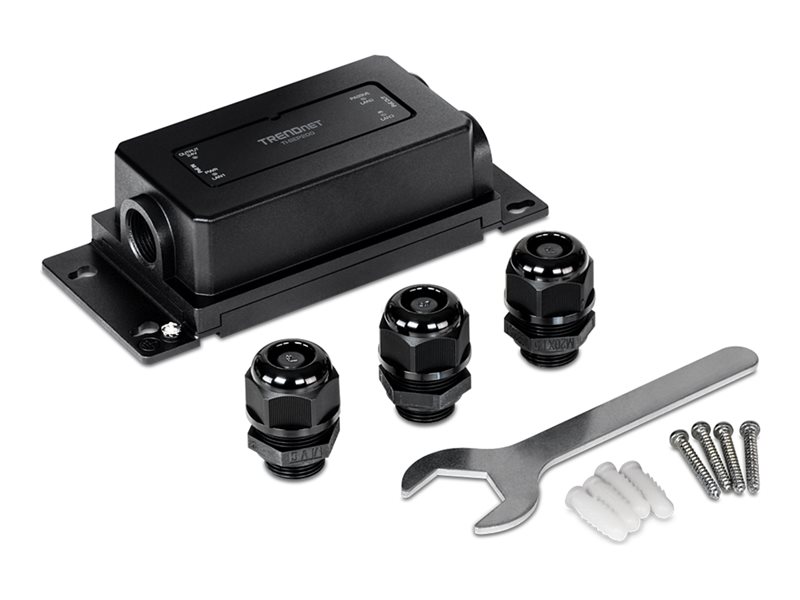

| Included Accessories | Mounting screws, wrench, 3 x cable glands |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP67, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 656 ft |
| Features | Half duplex mode, full duplex mode, 1Mbit packet buffer, 4KV Surge protection, 9 KB Jumbo Frame, outdoor enclosure |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 2.9 in |
| Height | 1.7 in |
| Weight | 9.38 oz |
