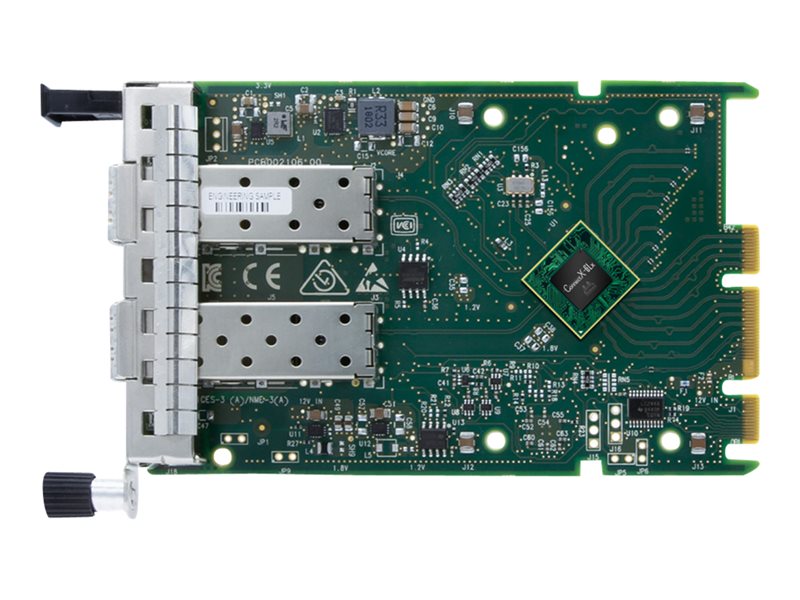

Network adapter - OCP 3.0 - 10/25 Gigabit SFP28 x 2
| Main Specifications | |
|---|---|
| Product Description | NVIDIA ConnectX-6 Lx - network adapter - OCP 3.0 - 10/25 Gigabit SFP28 x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ports | 10/25 Gigabit SFP28 x 2 |
| Dimensions (WxDxH) | 3 in x 4.5 in |
| Data Link Protocol | 25GbE, 10GbE |
| Data Transfer Rate | 25 Gbps |
| Compliant Standards | IEEE 802.3ae, IEEE 802.3by, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.3az, IEEE 802.3ap, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 1588v2, IEEE 1149.1, IEEE 1149.6 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 25Gb Ethernet - SFP28 |
| Miscellaneous | |
| Compliant Standards | CB, cTUVus, EMC, FCC, VCCI, ICES, RCM, RoHS |
| Networking | |
| Ports | 10/25 Gigabit SFP28 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 25 Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Features | SR-IOV, VXLAN, NVGRE, GENEVE support, RoCE, ASAP, PXE support, burst buffer offload, DCT, iSER, NC-SI, MCTP over PCIe VDM, MCTP over SMBus, OpenStack compatible, TCP/IP offloading, UDP/IP offloading, LSO, LRO, RSS, TSS, NVMe-oF |
| Compliant Standards | IEEE 802.3ae, IEEE 802.3by, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.3az, IEEE 802.3ap, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 1588v2, IEEE 1149.1, IEEE 1149.6 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4.5 in |
