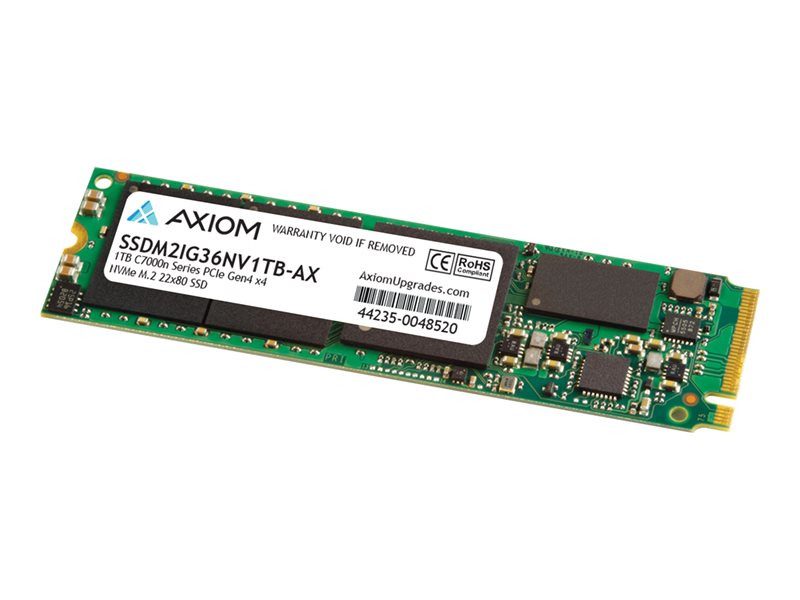

SSD - 1 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe)
| Main Specifications | |
|---|---|
| Product Description | Axiom C7000n Series - SSD - 1 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | Dynamic SLC caching, NVM Express (NVMe) 1.4, 3D NAND Technology, IG5236 controller, Global Wear Leveling, StaticDataRefresh Technology, Garbage Collection technology, NVM Express (NVMe) deallocate support, Host Memory Buffer (HMB), DDR4 DRAM Cache, NVMe Secure Erase support, Low-Density Parity Check, S.M.A.R.T. |
| Dimensions (WxDxH) | 0.9 in x 3.1 in |
| Weight | 1.41 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Bytes per Sector | 512 |
| Features | Dynamic SLC caching, NVM Express (NVMe) 1.4, 3D NAND Technology, IG5236 controller, Global Wear Leveling, StaticDataRefresh Technology, Garbage Collection technology, NVM Express (NVMe) deallocate support, Host Memory Buffer (HMB), DDR4 DRAM Cache, NVMe Secure Erase support, Low-Density Parity Check, S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Weight | 1.41 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption | 9.1 Watt (active) ¦ 3 mW (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.46 |
| SSD Endurance | 500 TB |
| Internal Data Rate | 7430 MBps (read) / 5935 MBps (write) |
| Maximum 4KB Random Write | 1000000 IOPS |
| Maximum 4KB Random Read | 390000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
