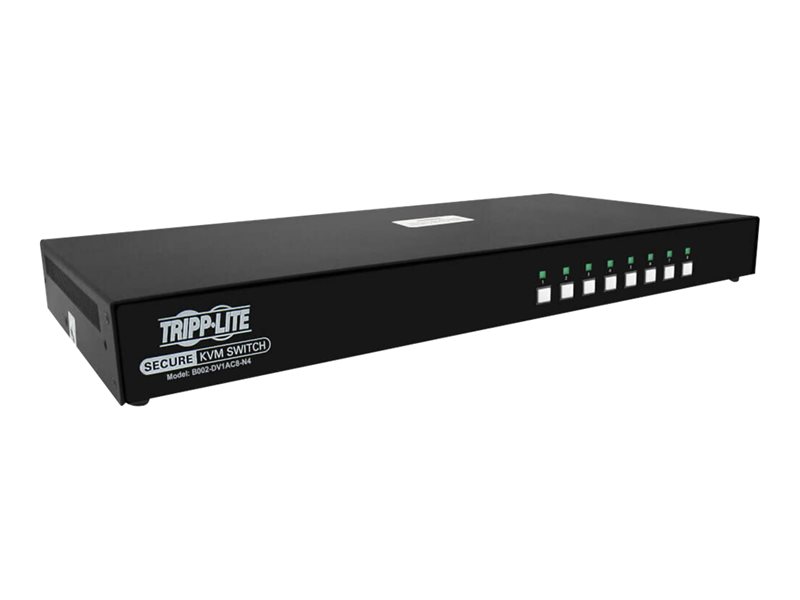

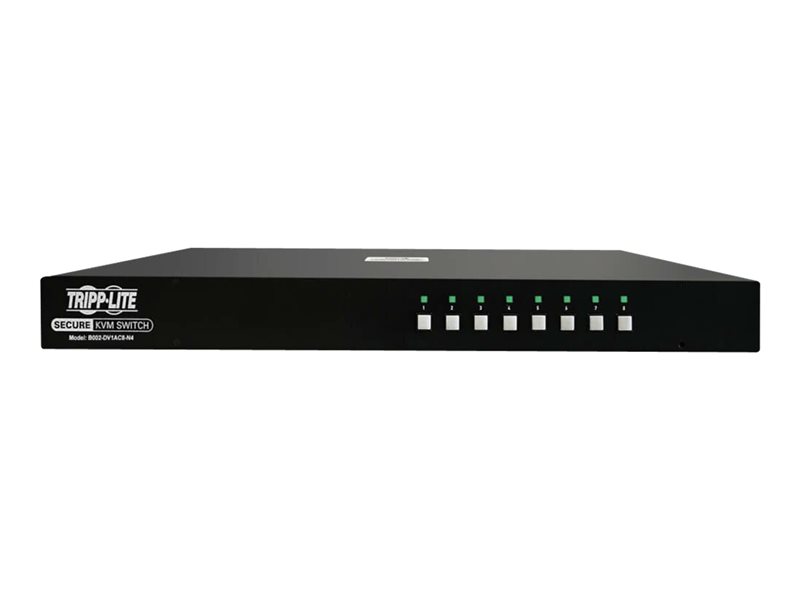

KVM / audio switch - 8 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite Secure KVM Switch, 8-Port, Single Head, DVI to DVI, NIAP PP4.0, Audio, CAC, TAA - KVM / audio switch - 8 ports - TAA Compliant |
| Device Type | KVM / audio switch - 8 ports |
| Subtype | KVM |
| Ports | 8 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | CAC reader support, Pushbutton/Hotkey switching, metal housing, anti-tampering protection |
| Compliant Standards | USB 1.1, USB 2.0 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 16.9 in x 8.7 in x 1.8 in |
| Weight | 6.31 lbs |
| Color | Black |
| Localization | United States, United Kingdom, Europe, Australia, North America |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: P782-006-DH, P782-010-DH, UR022-001, UR030-006 |
| General | |
| Device Type | KVM / audio switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 8 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 2560 x 1600 @ 60 Hz |
| Features | CAC reader support, Pushbutton/Hotkey switching, metal housing, anti-tampering protection |
| Compliant Standards | USB 1.1, USB 2.0 |
| Status Indicators | Port status, video, CAC |
| Expansion / Connectivity | |

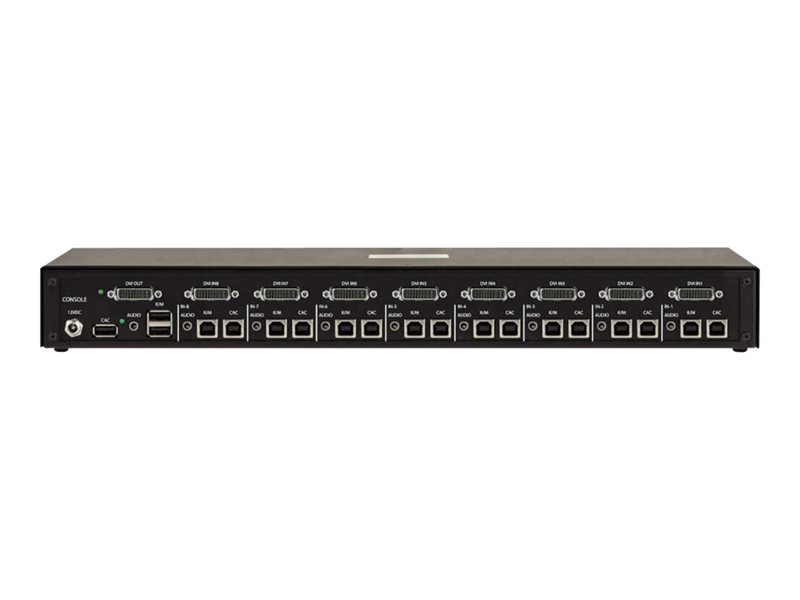

| Interfaces | 8 x DVI-I (dual link) input ¦ 1 x DVI-I (dual link) output ¦ 8 x audio input mini-jack ¦ 1 x audio output mini-jack ¦ 8 x keyboard (USB) / mouse (USB) Type B ¦ 8 x USB Type B common access card (CAC) ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 1 x USB 2.0 Type A common access card (CAC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | 4 power plug adapters |
| Cables Included | Power cable - 5 ft |
| Compliant Standards | NIAP PP 4.0, RoHS, UKCA, FCC, Mexico NOM, cUL, DVI 1.0, EDID compatible |
| TAA Compliant | Yes |
| Localization | United States, United Kingdom, Europe, Australia, North America |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 3 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 8.7 in |
| Height | 1.8 in |
| Weight | 6.31 lbs |
| Compatibility Information | |
| Designed For | P/N: P782-006-DH, P782-010-DH, UR022-001, UR030-006 |
