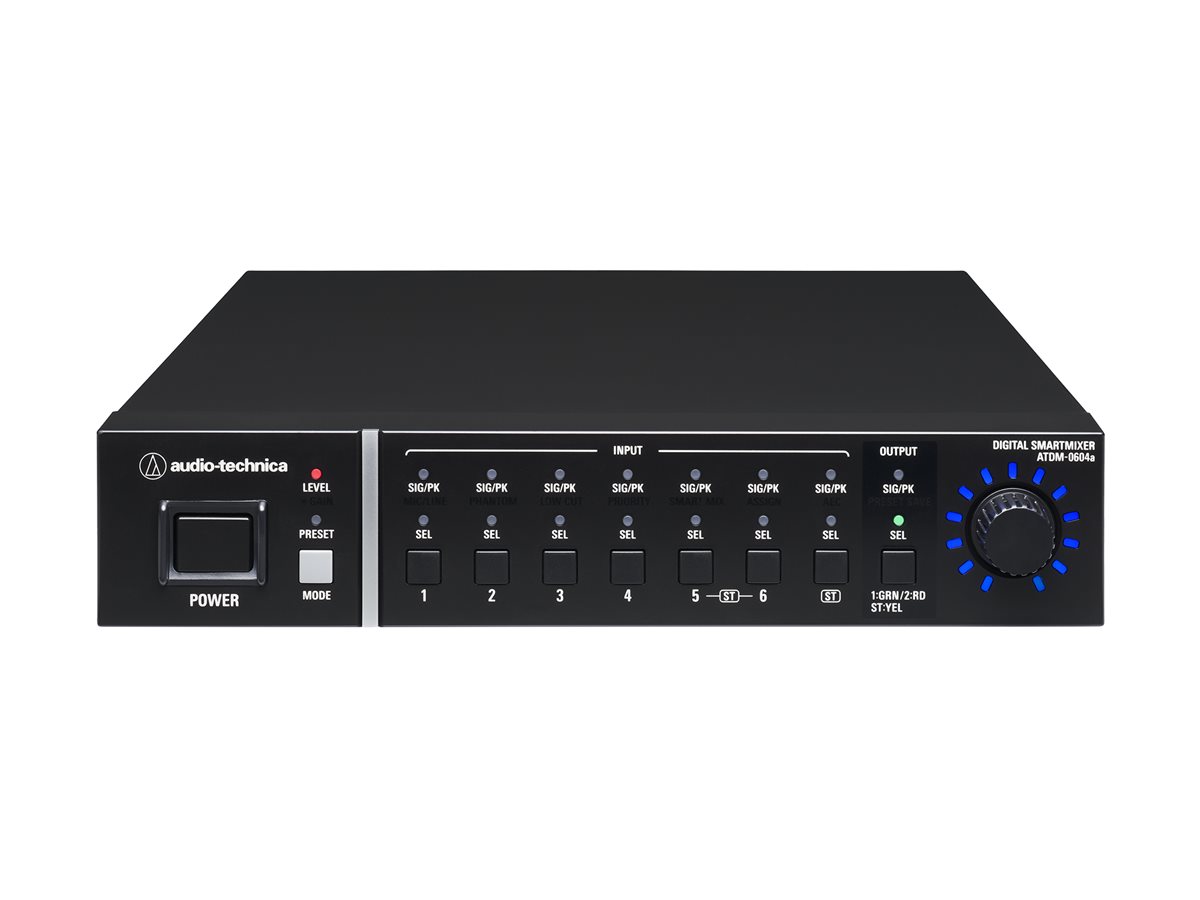

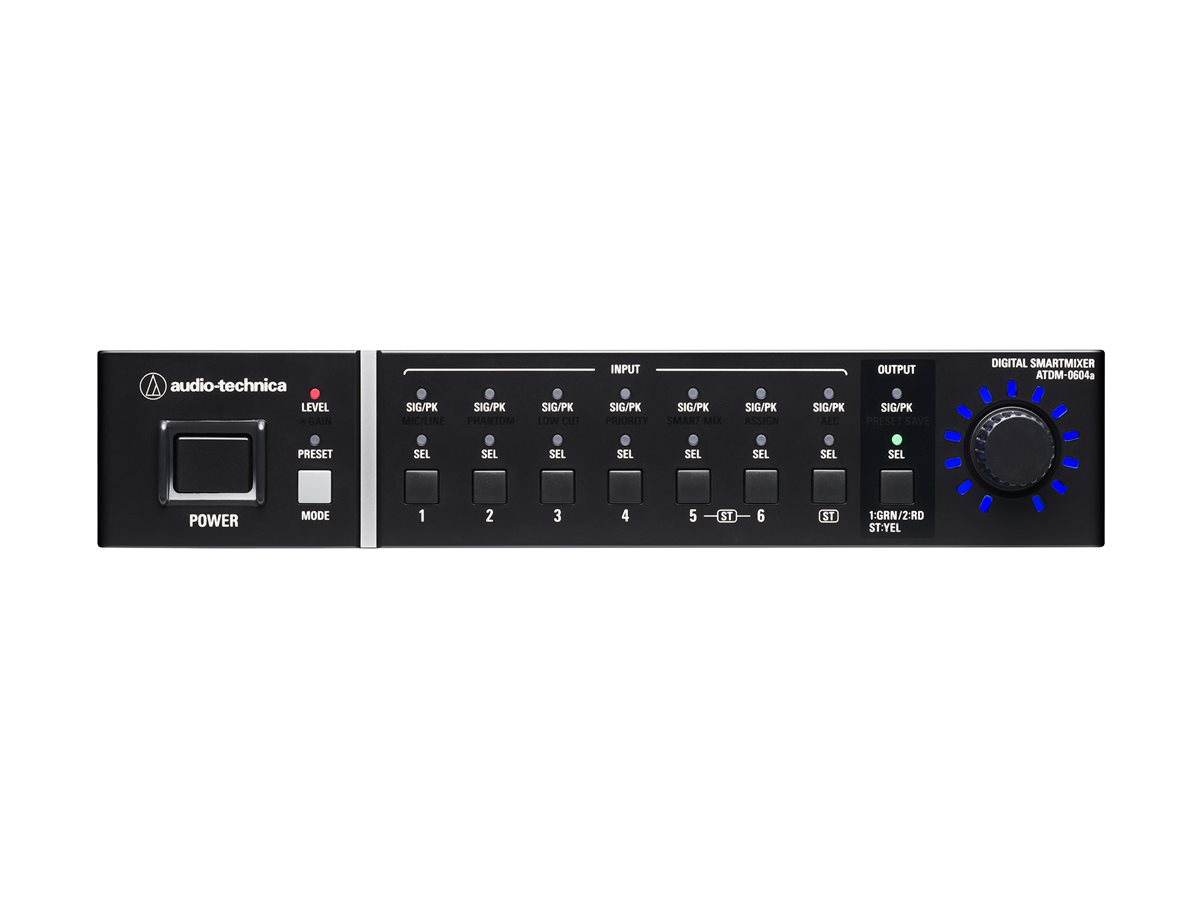

Digital mixer - 6-channel - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Audio-Technica Digital SmartMixer ATDM-0604A digital mixer - 6-channel |
| Type | Digital mixer - 6-channel - rack-mountable |
| Bus Type | Ethernet, USB |
| Frequency Response | 20 Hz - 20000 kHz |
| Mic Phantom Power | 48 V |
| Mic Channels | 6 mono / 1 stereo |
| Input Gain Level | 64 dB |
| Color | Black, silver |
| Dimensions (WxDxH) | 8.6 in - 13.6 in - 1.7 in |
| Weight | 4.17 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Digital mixer |
| Bus Type | Ethernet, USB |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Miscellaneous | |
| Included Accessories | Euroblock connectors, 4 rubber feet |
| Color | Black, silver |
| Power | |
| Voltage Required | AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 17 watt |
| Connections | |

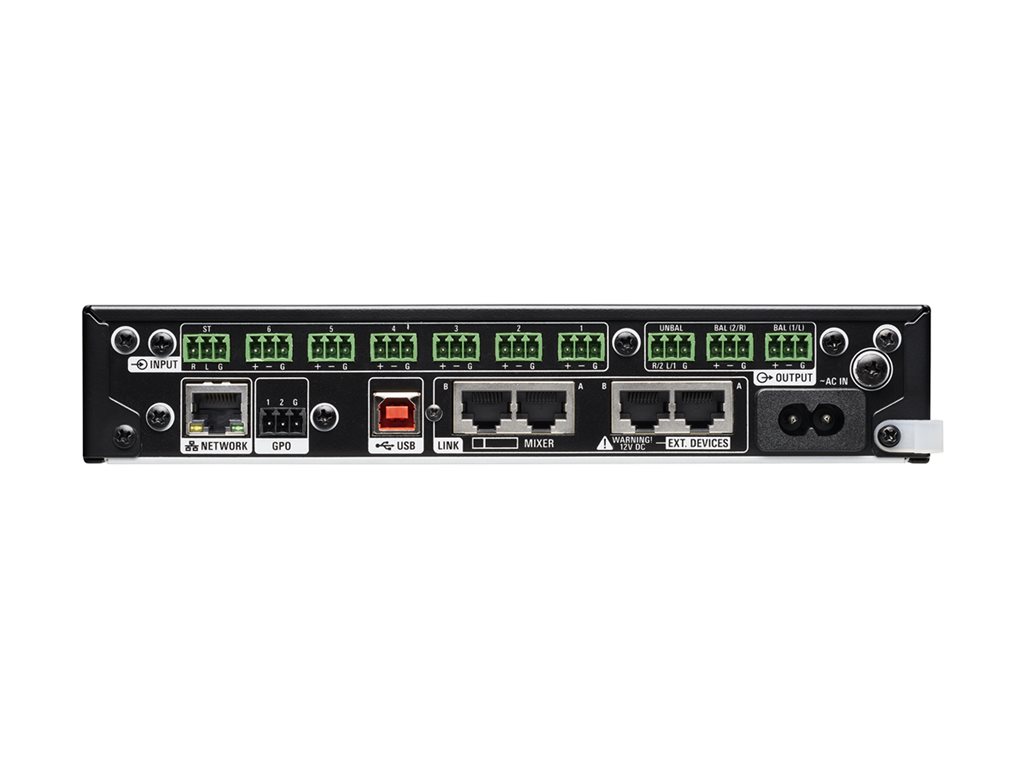

| Connector Type | 6 x microphone/line input (3 pin terminal block) - rear ¦ Audio line-in (stereo) (3 pin terminal block) - rear ¦ 1 x unbalanced audio output (3 pin terminal block) - rear ¦ 2 x balanced audio output (3 pin terminal block) - rear ¦ 1 x network (RJ-45) - rear ¦ 1 x USB (4 pin USB Type B) - rear ¦ 4 x system components control bus (RJ-45) - rear |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 13.6 in |
| Height | 1.7 in |
| Weight | 4.17 lbs |
| Mixer | |

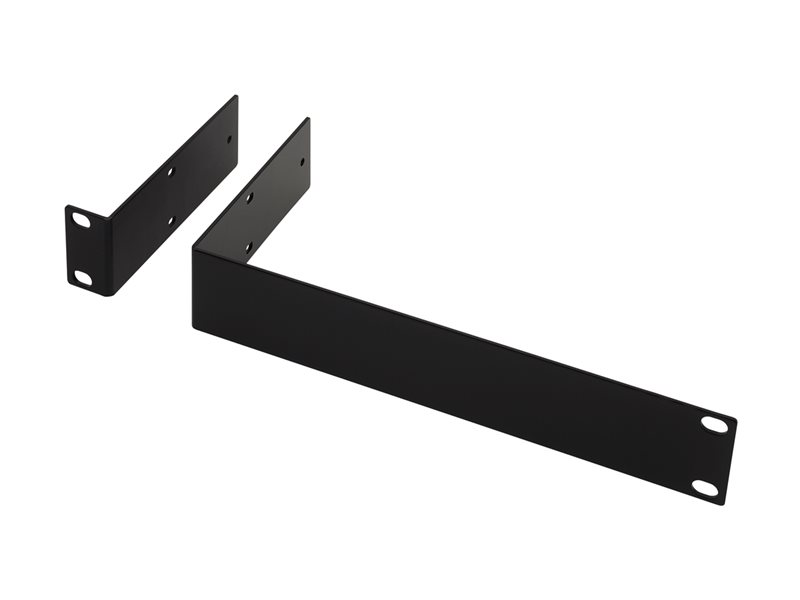

| Rack Mount | Rack-mountable |
| Channels Qty (total) | 6-channel |
| Frequency Response | 20 Hz - 20000 kHz |
| Mic Phantom Power | 48 V |
| Control Types | Knobs |
| Channel Description | |
| Mic Channels | 6 mono / 1 stereo |
| Mic Channels Connector | Terminal block (clamp) |
| Input Gain Level | 64 dB |
| Input Level Switch | Mic/line |
| Equalizer Bus | |
| Bands Qty | 12 |
| Details | Parametric |
| Mixer Amplifier | |
| Amplifier Output Details | - THD 0.03% |
