Wireless audio receiver for wireless microphone system
| Main Specifications | |
|---|---|

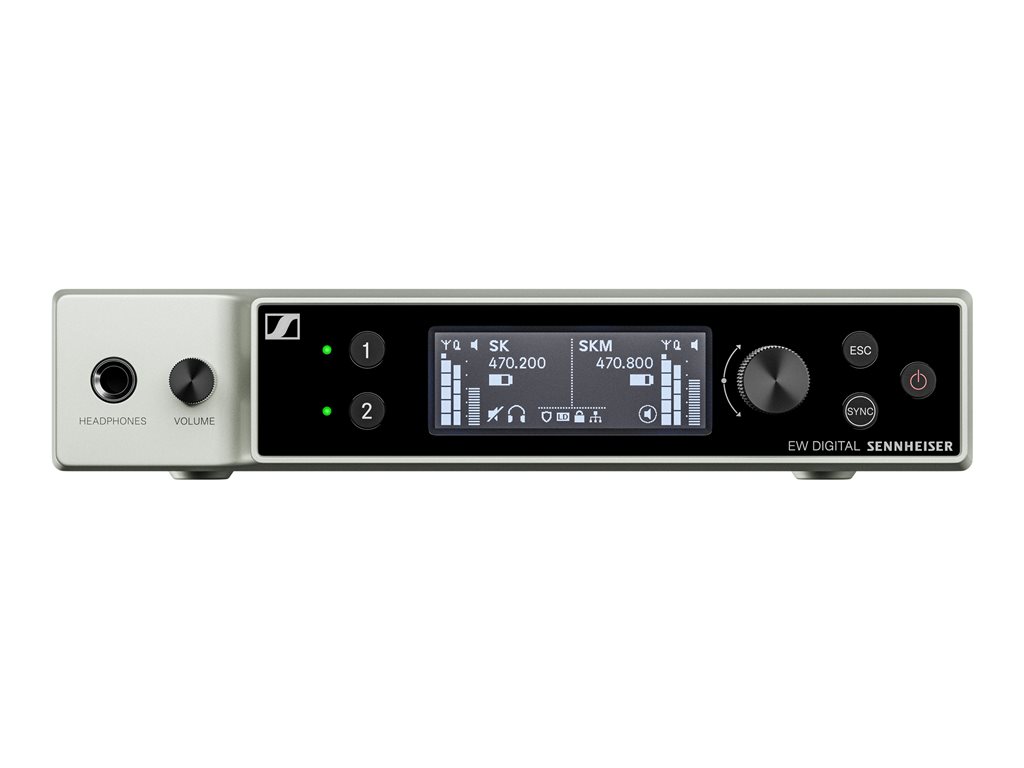

| Product Description | Sennheiser EW-DX EM 2 DANTE (R1-9) - wireless audio receiver for wireless microphone system |
| Product Type | Wireless audio receiver |
| Intended For | Wireless microphone system |
| Wireless Interface | Bluetooth LE |
| Package Content | EW-DX EM 2 Dante rack receiver, GA 3 rack mount kit, EW-D power supply with country adapters, 2 rod antennas, 4 rubber feet |
| Product Material | Metal housing |
| Dimensions (WxDxH) | 8.4 in x 6.7 in x 1.7 in |
| Weight | 2.2 lbs |
| Compatible Software | Sennheiser Control Cockpit, Wireless System Manager |
| General | |
| Product Type | Wireless audio receiver |
| Intended For | Wireless microphone system |
| Display | OLED display |
| Wireless Interface | Bluetooth LE |
| Compatible Software | Sennheiser Control Cockpit, Wireless System Manager |
| Frequency Range | 520 - 607.8 MHz |
| Supported Digital Audio Standards | SePAC |
| Frequency Response | 20 - 20000 Hz |
| Controls | Volume, on/off |
| Package Content | EW-DX EM 2 Dante rack receiver, GA 3 rack mount kit, EW-D power supply with country adapters, 2 rod antennas, 4 rubber feet |
| Product Material | Metal housing |
| Width | 8.4 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 2.2 lbs |
| Miscellaneous | |
| Compliant Standards | AES-256, IEEE 802.3af Class 0, IPv4, IPv6 |
| Placing / Mounting | Rack, table-top |
| Power Source | Power over Ethernet (PoE), AC power adapter |
| Connections | |
| Connections | 3 x network - RJ-45 ¦ Headphone output - phone 6.3 mm ¦ 2 x balanced audio output - 3 pin XLR ¦ 2 x unbalanced audio output - phone 6.3 mm ¦ 2 x antenna - BNC |
