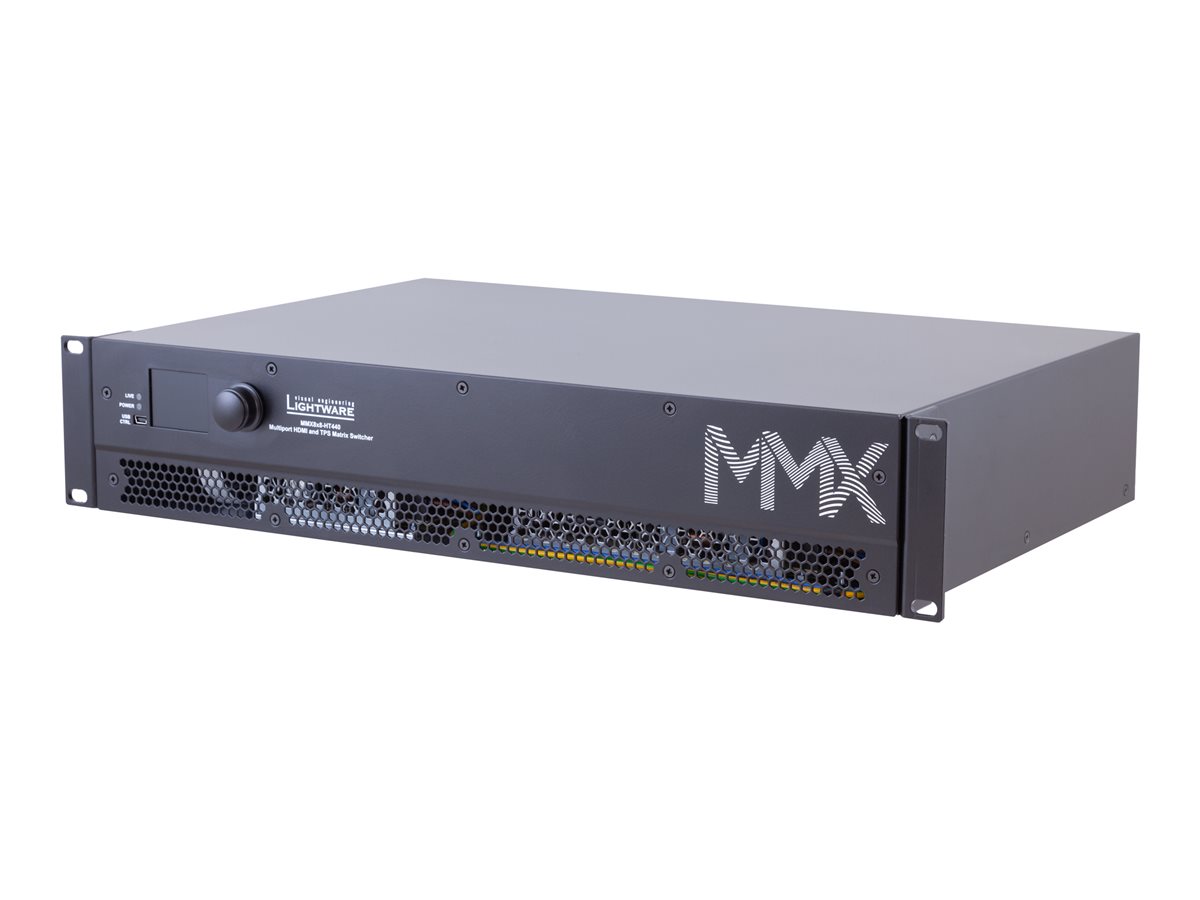

Video/audio switch - 8 x 8 - front to back airflow - rack-mountable - PoE
| Main Specifications | |
|---|---|
| Product Description | Lightware MMX8x8-HT440 - video/audio switch - 8 x 8 - rack-mountable |
| Device Type | Video/audio switch - 8 x 8 |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | HDMI |
| Power Over Ethernet (PoE) | PoE |
| Features | 3D support, HDCP compliant, up to 170 m transmission distance, EDID Management, steel housing, PCM |
| Compliant Standards | DVI 1.0, HDCP 1.4 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 11.8 in x 3.5 in |
| Weight | 12.13 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch - 8 x 8 |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | HDMI |
| Power Over Ethernet (PoE) | PoE |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Video Bandwidth | 300 MHz |
| Features | 3D support, HDCP compliant, up to 170 m transmission distance, EDID Management, steel housing, PCM |
| Compliant Standards | DVI 1.0, HDCP 1.4 |
| Built-in Devices | Status LCD |
| Status Indicators | Live, power |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 4 x HDMI output ¦ 4 x HDBaseT input RJ-45 ¦ 4 x HDBaseT output RJ-45 ¦ 8 x balanced bi-directional analog audio 5 pin Phoenix ¦ 1 x LAN RJ-45 ¦ 2 x LAN RJ-45 control ¦ 2 x serial (RS-232) 3 pin Phoenix ¦ 2 x remote control (IrDA) 2 pin Phoenix ¦ 4 x IrDA ¦ 4 x relay 8 pin Phoenix ¦ 6 x GPIO 8 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UKCA, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 63000:2018, EN IEC 62368-1:2020, IEEE 802.3af, EDID 1.3 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 11.8 in |
| Height | 3.5 in |
| Weight | 12.13 lbs |
