Receipt printer - direct thermal - - 203 dpi - up to 240 inch/min - USB 2.0, NFC, Bluetooth 4.0 LE - tear bar - black
| Main Specifications | |
|---|---|

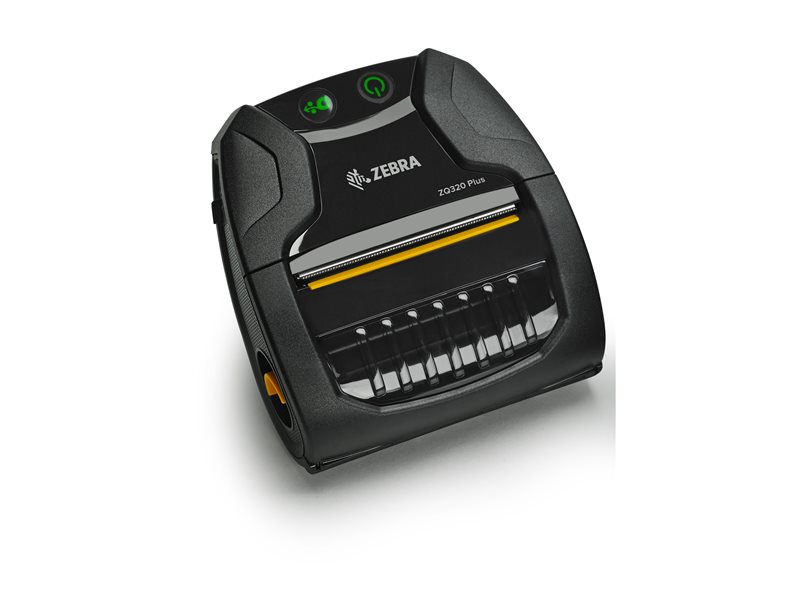

| Product Description | Zebra ZQ320 Plus - receipt printer - B/W - direct thermal |
| Printer Type | Receipt printer - direct thermal - B/W |
| Form Factor | Portable |
| Weight | 15.17 oz |
| Max Media Size | Roll (3.15 in) |
| Min Media Size (Custom) | 0.49 in |
| Max Media Size (Custom) | 3.15 in |
| Print Speed | Up to 236.2 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB 2.0, NFC, Bluetooth 4.0 LE |
| RAM Installed (Max) | 128 MB (256 MB) |
| Flash Memory Installed (Max) | 256 MB (512 MB) |
| Language Simulation | ZPL, Comtec Printer Control Language (CPCL) |
| Barcodes | Code 93, Code 39, NW-7, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, UCC/EAN-128, UPC-A, UPC-E, Aztec code, Data Matrix, GS1 DataBar, QR code, MaxiCode, MicroPDF417, PDF417, TLC39, Codabar, RSS |
| Media Type | Receipt paper, linerless labels |
| Fonts | CG Triumvirate Bold Condensed |
| Features | Tear bar, open cover sensor, Black Mark sensor, linerless |
| Battery | Required 1 lithium ion Included Qty 1 |
| System Requirements | Microsoft Pocket PC, Microsoft Windows Mobile for Pocket PC 2002, Microsoft Windows CE .NET, Microsoft Windows Mobile for Pocket PC 2003 Second Edition, Microsoft Windows NT / 2000 / XP, Android 2.3, Apple iOS 5, Android 4.0, Android 4.1 (Jelly Bean), Apple iOS 6, Apple iOS 7, Apple iOS 10 |
| Enclosure Color | Black |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 4.6 in x 5.1 in x 1.9 in |
| General | |
| Printer Type | Receipt printer - direct thermal - monochrome |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Included Accessories | Belt clip |
| Cables Included | 1 x USB-C to USB-A cable |
| Features | Drop-resistant, outdoor usage, water-resistant |
| Compliant Standards | IP54, MFI, MIL-STD-810, FCC Part 15, EN55022 Class B, IC, TUV, IEC 60950, VCCI, C-Tick, NOM, PSE Mark, S Mark, CCC |
| Printer | |
| Print Speed | Up to 236.2 inch/min - max speed |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, NFC, Bluetooth 4.0 LE |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, Comtec Printer Control Language (CPCL) |
| Fonts | CG Triumvirate Bold Condensed |
| Features | Tear bar, open cover sensor, Black Mark sensor, linerless |
| Fonts Included | 25 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Code 39, NW-7, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, UCC/EAN-128, UPC-A, UPC-E, Aztec code, Data Matrix, GS1 DataBar, QR code, MaxiCode, MicroPDF417, PDF417, TLC39, Codabar, RSS |
| RAM | |
| RAM Installed (Max) | 128 MB / 256 MB (max) |
| Media Handling | |
| Media Type | Receipt paper, linerless labels |
| Max Media Size | Roll (3.15 in) |
| Min Media Size (Custom) | 0.49 in |
| Max Media Size (Custom) | 3.15 in |
| Media Sizes | Roll (3.15 in) |
| Max Printing Width | 2.83 in |
| Media Thickness Range | 0.05334 mm - 0.16 mm |
| Roll Maximum Outer Diameter | 1.6 in |
| Media Feeders | 1 x manual - 1 roll - Roll (3.15 in) |
| Software / System Requirements | |
| Software Included | Link-OS |
| OS Required | Microsoft Pocket PC, Microsoft Windows Mobile for Pocket PC 2002, Microsoft Windows CE .NET, Microsoft Windows Mobile for Pocket PC 2003 Second Edition, Microsoft Windows NT / 2000 / XP, Android 2.3, Apple iOS 5, Android 4.0, Android 4.1 (Jelly Bean), Apple iOS 6, Apple iOS 7, Apple iOS 10 |
| Environmental Parameters | |
| Min Operating Temperature | 5 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Battery | |
| Type | Lithium ion |
| Required Qty | 1 |
| Included | 1 |
| Capacity | 2280 mAh |
| Flash Memory | |
| Flash Memory | 256 MB (installed) / 512 MB (max) |
| Dimensions & Weight | |
| Width | 4.6 in |
| Depth | 5.1 in |
| Height | 1.9 in |
| Weight | 15.17 oz |
