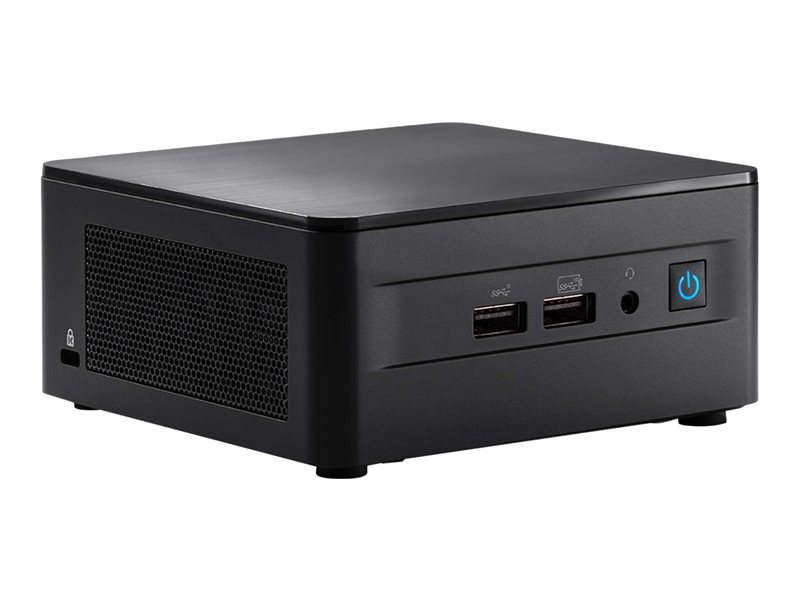

NUC12WSHi3 - Barebone - tall chassis 1 x Core i3 1220P / up to 4.4 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2
| Main Specifications | |
|---|---|
| Product Description | Intel Next Unit of Computing 12 Pro Kit - NUC12WSHi3 - tall chassis Core i3 1220P - 0 GB - no HDD |
| Type | PC barebone - tall chassis |
| Localization | Region: United States |
| Processor | 1 x Intel Core i3 (12th Gen) 1220P (up to 4.4 GHz, (10-core) |
| Processor Main Features | Intel Virtualization Technology, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT), Intel AES New Instructions, Intel Smart Cache |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe)) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Thunderbolt 4 / HDMI - Intel UHD Graphics |
| Audio Output | 7.1 channel surround |
| Networking | 1GbE, 2.5GbE, 802.11ax, 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.2 |
| Software Included | Intel Management Engine Firmware 16 |

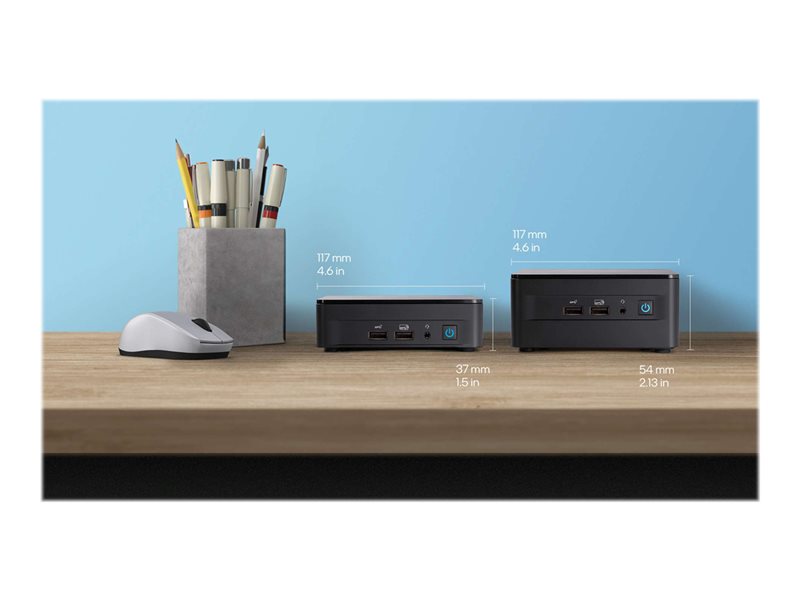

| Dimensions (WxDxH) | 4.6 in x 4.4 in x 2.1 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | PC barebone |
| Product Form Factor | Tall chassis |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x Thunderbolt 4/USB4/DisplayPort 1.4 - Type C ¦ 3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear) ¦ 2 x USB 2.0 - header (2 internal) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 2 x HDMI ¦ 1 x headphones/microphone - stereo mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CEC, ARPANSA, AS/NZS 2772.2, AS/NZS 4268, AS/NZS CISPR 32, BSMI CNS 13438, CEL, China RoHS, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 489-3, EN 301 893, EN 55032, EN 62311, EN55024, ERP, E-Standby, EU RoHS, FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, GEMS, ICES-003, IEC/EN 60950-1, IEC/EN/UL 62368-1, KN32, KN35, REACH, Taiwan BSMI RoHS, VCCI 32 |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Networking | |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I225-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.2 |
| Power | |
| Device Type | Power supply |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Storage Controller | |
| Type | SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | Thunderbolt 4 / HDMI |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 4 |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| Software | Intel Management Engine Firmware 16 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 4.6 in |
| Depth | 4.4 in |
| Height | 2.1 in |
| Processor / Chipset | |
| CPU | Intel Core i3 (12th Gen) 1220P |
| Max Turbo Speed | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT), Intel AES New Instructions, Intel Smart Cache |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
