Device server - converter - RS-232, 100Mb LAN
| Main Specifications | |
|---|---|
| Product Description | TRENDnet - device server - converter |
| Device Type | Device server |
| Form Factor | External |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet |
| Included Accessories | Power adapter |
| OS Required | Microsoft Windows |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 2.4 in x 1.7 in x 0.9 in |
| Weight | 3.6 oz |
| Manufacturer Warranty | 20-year warranty |
| General | |
| Device Type | Device server |
| Width | 2.4 in |
| Depth | 1.7 in |
| Height | 0.9 in |
| Weight | 3.6 oz |
| Expansion / Connectivity | |

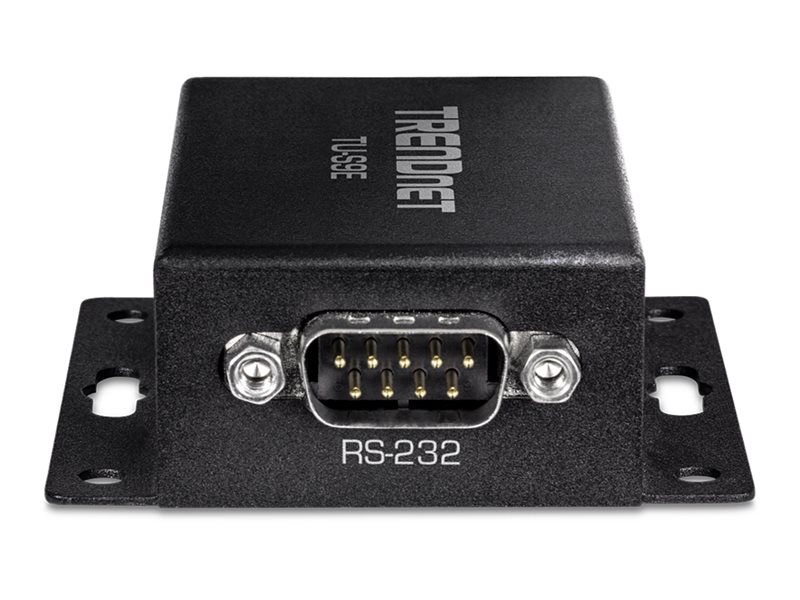

| Interfaces | 1 x RS-232 - DB-9 ¦ 1 x 10/100Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Compliant Standards | FCC, NDAA |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet |
| Network / Transport Protocol | DHCP, TFTP |
| Features | DHCP support, virtual serial port support, rugged |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 1.1 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 95% (non-condensing) |
