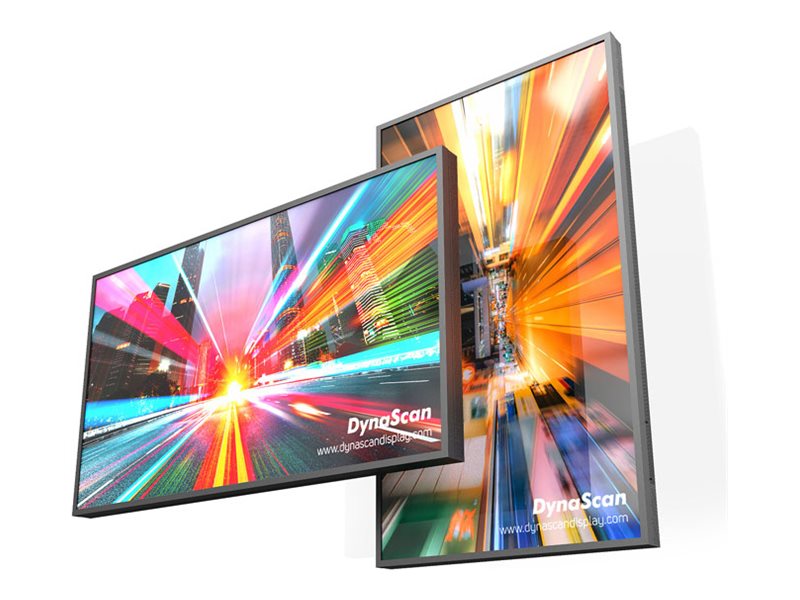

65" Diagonal Class (64.53" viewable) - DW Series LCD flat panel display - digital signage - 4K UHD (2160p) 3840 x 2160 - black
| Main Specifications | |
|---|---|
| Product Description | DynaScan DW651LR5 DW Series - 65" Class (64.53" viewable) LCD flat panel display - 4K - for digital signage |
| Product Type | LCD flat panel display |
| Diagonal Class | 65" |
| Diagonal Size | 64.53" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | SNMP 3.0 support |
| Storage Capacity | 16 GB Flash |
| Supported Memory Cards | microSD |
| USB | Yes |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 510 watt |
| Power Consumption Stand by | 1 watt |
| Dimensions (WxDxH) | 58 in x 2.9 in x 33.4 in |
| Weight | 94.8 lbs |
| General | |
| Product Type | LCD flat panel display |
| Power Consumption (Max) | 740 watt |
| Power Consumption Operational | 510 watt |
| Diagonal Class | 65" |
| Diagonal Size | 64.53" |
| Commercial Use | Yes - digital signage |
| Series | DW Series |
| Operating System | Android OS |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Auto orientation sensor, ambient light sensor (ALS), temperature sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort |
| Modes | Portrait mode, landscape mode |
| Design | 19 mm bezel |
| Width | 58 in |
| Depth | 2.9 in |
| Height | 33.4 in |
| Weight | 94.8 lbs |
| Enclosure Color | Black |
| Miscellaneous | |
| Compliant Standards | HDCP 2.3, FCC, RoHS |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 1 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Color Temperature | 6500K |
| Image Contrast Ratio | 3000:1 |
| Brightness | 4000 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Display Menu Language | English |
| Backlight Life | 100,000 hour(s) |
| Commercial Features | SNMP 3.0 support |
| Additional Features | TrueColor Calibration, Intel SDM Ready, Direct Sunlight, 10-bit support, Power On/Off Scheduler, OSD Rotation |
| Connections | |
| Connector Type | 2 x HDMI ¦ DisplayPort ¦ USB 3.0 ¦ Audio line-out ¦ Serial ¦ 2 x LAN |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Media Player | |
| Supported Video Formats | MPEG-1, VC-1, MPEG-2, MPEG-4, VP8, H.265, H.264, VP9 |
| Supported Memory Cards | microSD |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Configuration | ARM Cortex-A73 + A53 - 2 GB DDR4 - 16 GB Flash - Mali-G51 |
