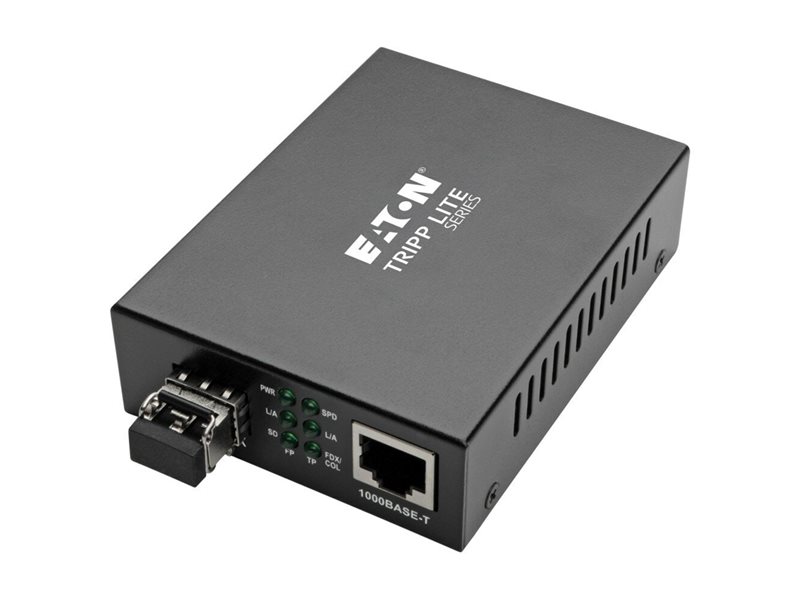

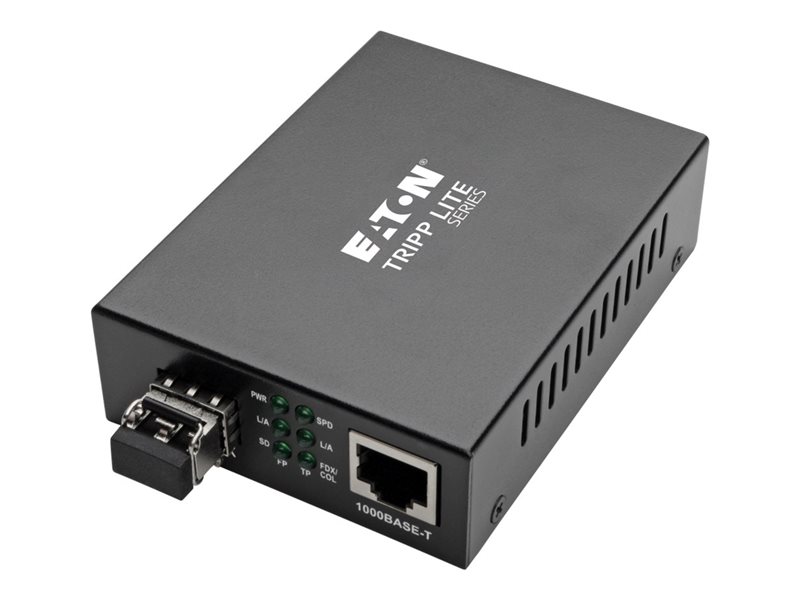

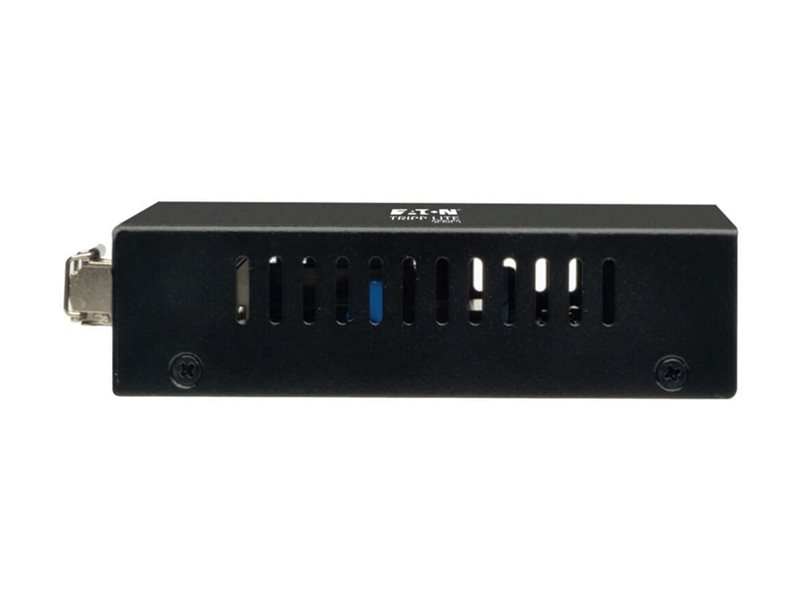

Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / LC multi-mode - up to 1800 ft - 850 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 LC, International Power Supply, 850 nm, 550 m (1,804 ft.) - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Fiber media converter - RJ-45 / LC multi-mode |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 1800 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 4.7 in x 2.7 in x 1 in |
| Weight | 16.01 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Ethernet 1000 - LC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

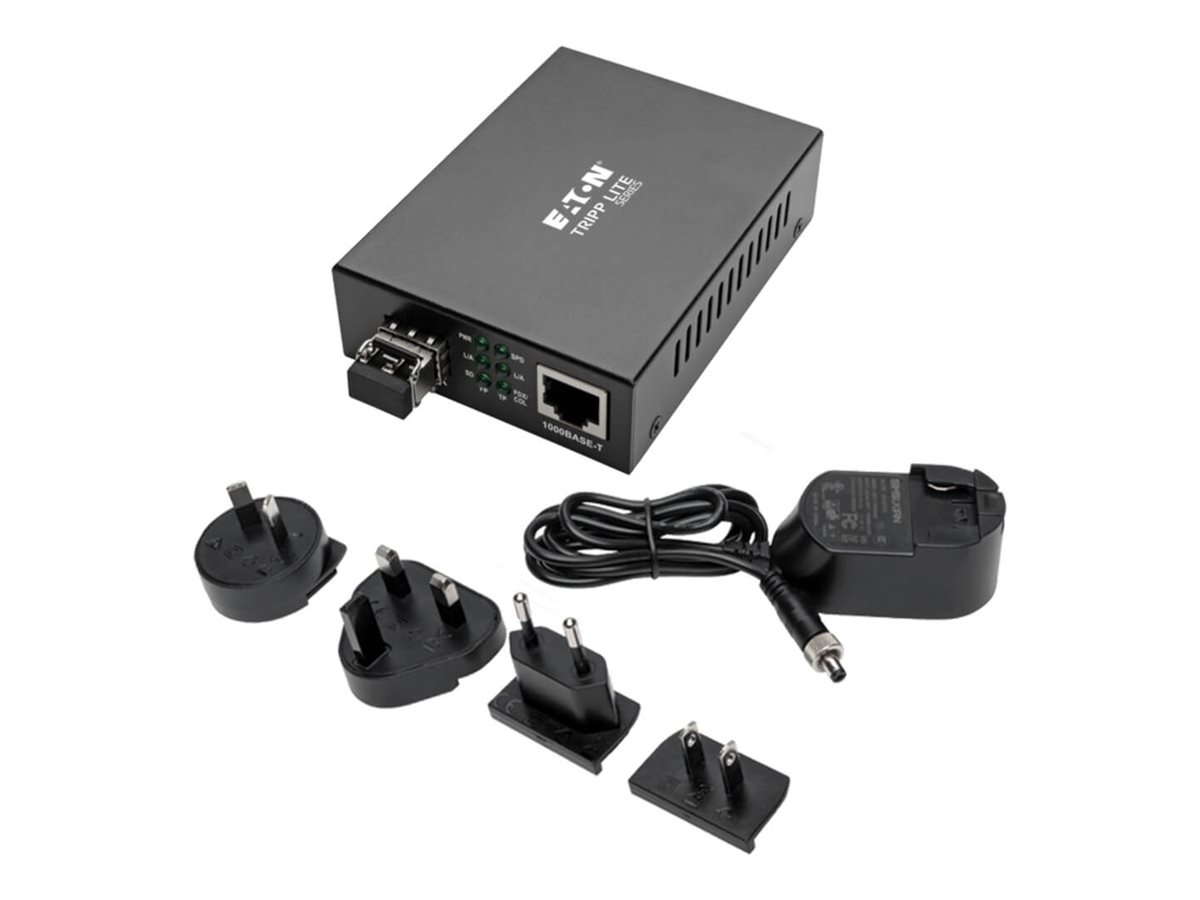

| Included Accessories | 4 power plug adapters |
| Compliant Standards | Plug and Play, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |

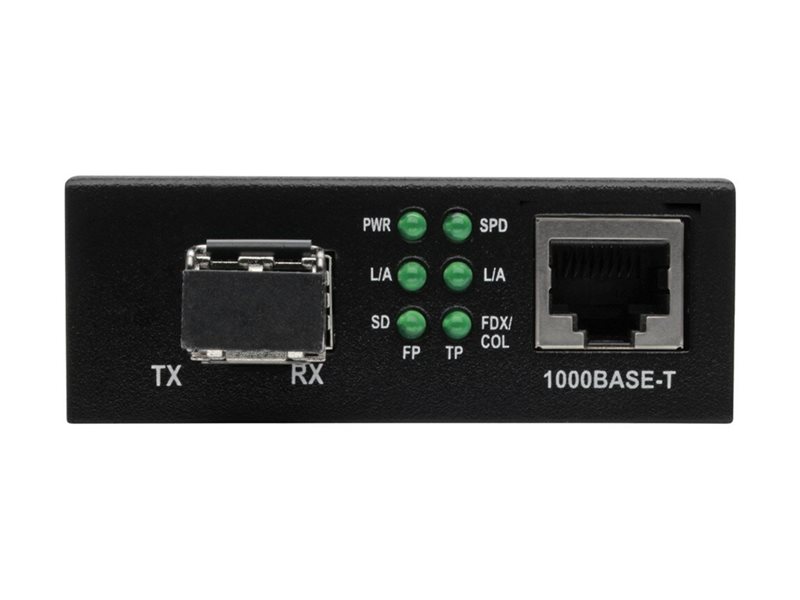

| Status Indicators | Power, link/activity, port transmission speed, status |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Power | |

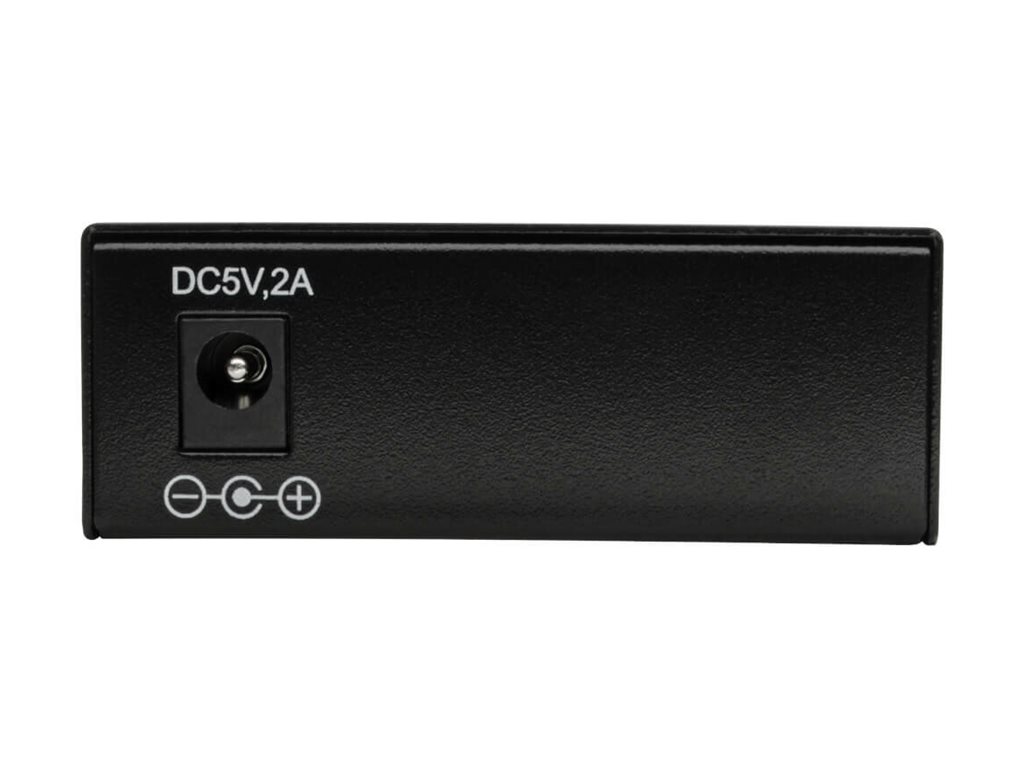

| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 2.7 in |
| Height | 1 in |
| Weight | 16.01 oz |
