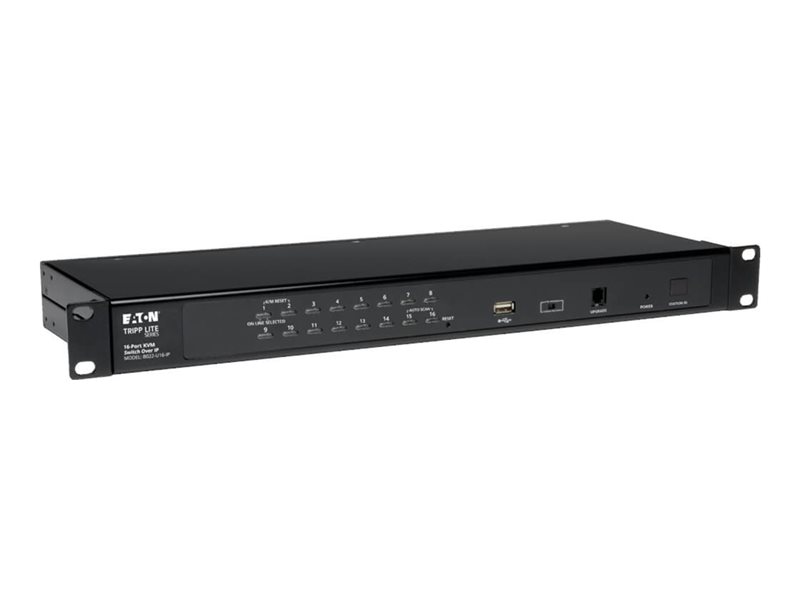

KVM switch - 16 x KVM port(s) - 1 local user - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U - KVM switch - 16 ports - rack-mountable |
| Device Type | KVM switch - 16 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Users Qty | 1 local user |
| Features | IPv6 support, RADIUS support, IPv4 support |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 6 in x 1.7 in |
| Weight | 6.5 lbs |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM switch - 16 ports |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | PS/2, USB |
| Encryption Algorithm | DES, Triple DES, RC4, 256-bit AES, 128-bit SSL, 1024-bit RSA |
| Authentication Method | RADIUS, LDAP |
| Max Resolution | 1600 x 1200 @ 60 Hz |
| Features | IPv6 support, RADIUS support, IPv4 support |
| Expansion / Connectivity | |
| Interfaces | 16 x KVM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Cables Included | 2 x keyboard / mouse / video cable - 6 ft |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 6 in |
| Height | 1.7 in |
| Weight | 6.5 lbs |
