Console server - 4 ports - 1GbE, RS-232 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 4-Port Console Server with Dual GB NIC, 4G, Flash & 4 USB Ports - console server - TAA Compliant |
| Device Type | Console server |
| Form Factor | External |
| Flash Memory | 4 GB |
| Ports Qty | 4 |
| Data Link Protocol | Gigabit Ethernet, RS-232 |

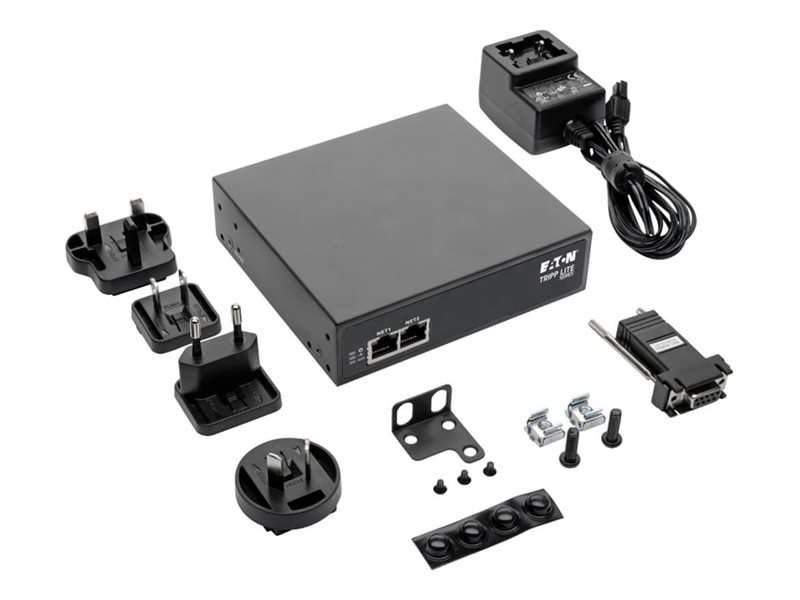

| Included Accessories | 4 rubber feet, rack mount kit, power terminal block |
| Power | AC 120/230 V (50/60 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 5.1 in x 4.7 in x 1.4 in |
| Weight | 15.98 oz |
| Manufacturer Warranty | 4-year warranty |
| General | |
| Device Type | Console server |
| Width | 5.1 in |
| Depth | 4.7 in |
| Height | 1.4 in |
| Weight | 15.98 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |

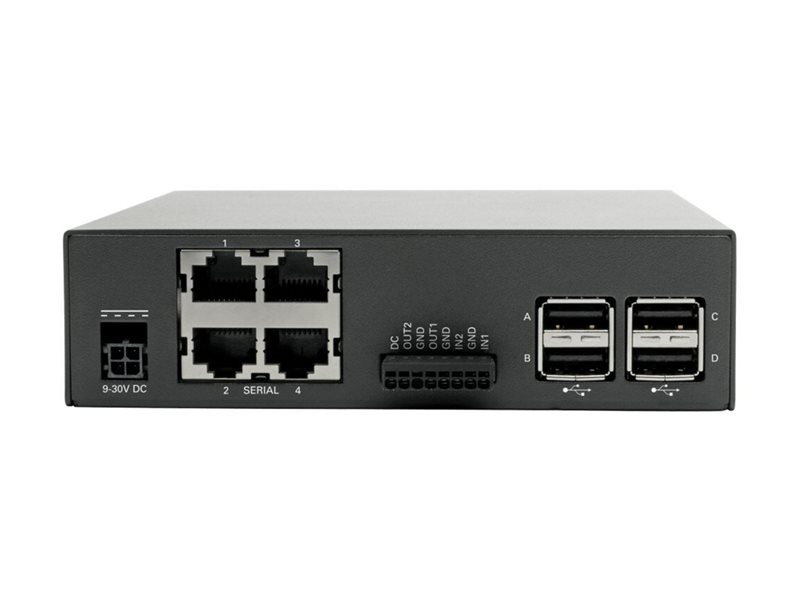

| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 4 x serial - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ 1 x - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 years |
| Miscellaneous | |
| Included Accessories | 4 rubber feet, rack mount kit, power terminal block |
| Cables Included | 1 x serial adapter |
| Compliant Standards | UL, TUV, C-Tick, cUL, GS, CB, FCC, RoHS, FIPS 140-2, PSE Mark, PCI DSS |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, RS-232 |
| Remote Management Protocol | SSH |
| Status Indicators | Port status, power, serial |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP) |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11.5 Watt |
| Software / System Requirements | |
| Software Included | GUI software |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Flash Memory | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.3 in |
| Shipping Depth | 7.5 in |
| Shipping Height | 4.1 in |
