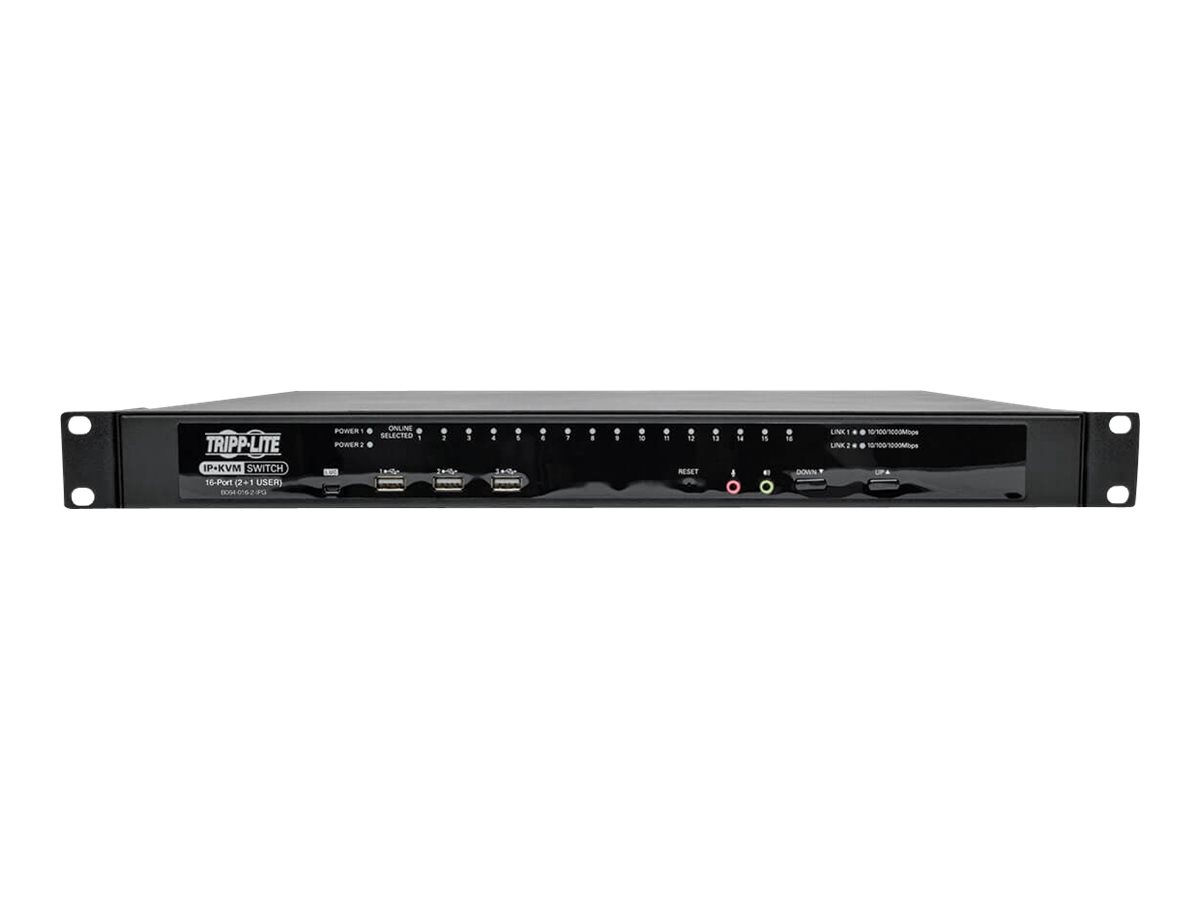

KVM switch - CAT5 - 16 x KVM port(s) - 1 local user - 2 IP users - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 16-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA - KVM switch - 16 ports - TAA Compliant |
| Device Type | KVM switch - 16 ports - CAT5 |
| Enclosure Type | 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Users Qty | 1 local user, 2 IP users |
| Features | On-Screen Display, firmware upgradable |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 17 in x 16 in x 1.7 in |
| Weight | 16.98 lbs |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM switch - 16 ports |
| Enclosure Type | Desktop 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 2 IP users |
| Server Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | PS/2, USB |
| Encryption Algorithm | DES, RSA, SSL, 256-bit AES |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Max Resolution | 1600 x 1200 @ 60 Hz |
| Features | On-Screen Display, firmware upgradable |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 16 x KVM RJ-45 ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 3 x USB Type A ¦ 1 x console RJ-45 ¦ 1 x KVM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Cables Included | 1 x keyboard / mouse / video cable ¦ 1 x serial adapter |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, cUL, FCC |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 16 in |
| Height | 1.7 in |
| Weight | 16.98 lbs |
