4-Port, 4K, NIAP PP3.0 Certified, Audio - KVM / audio switch - 4 x KVM / audio - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|

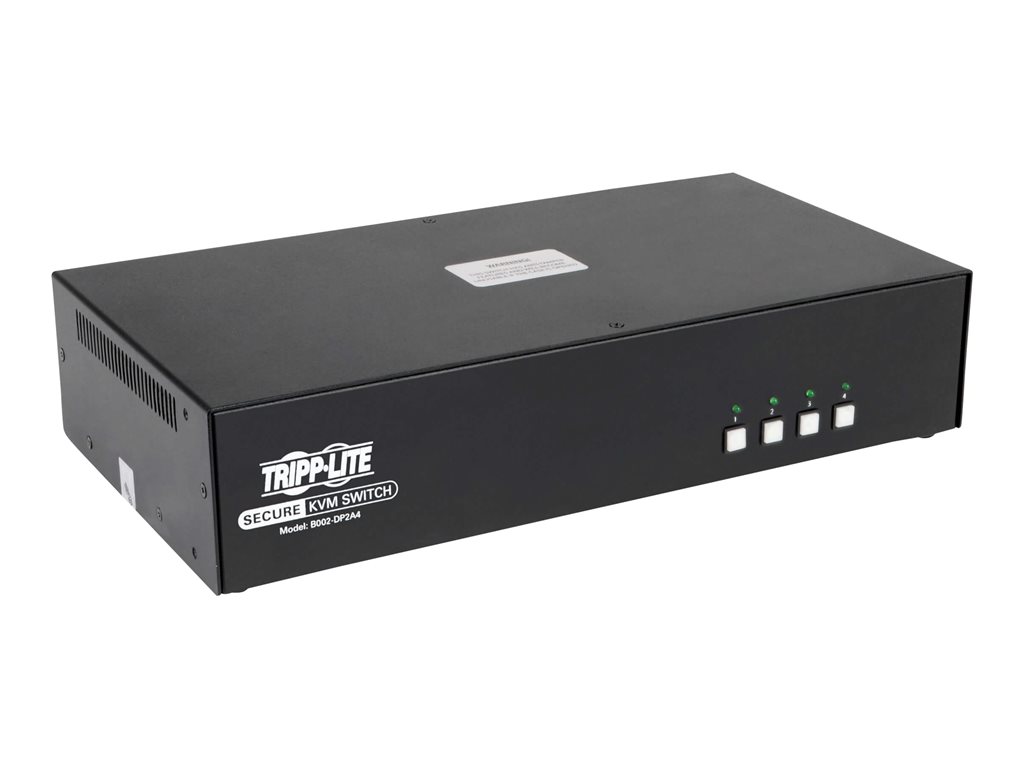

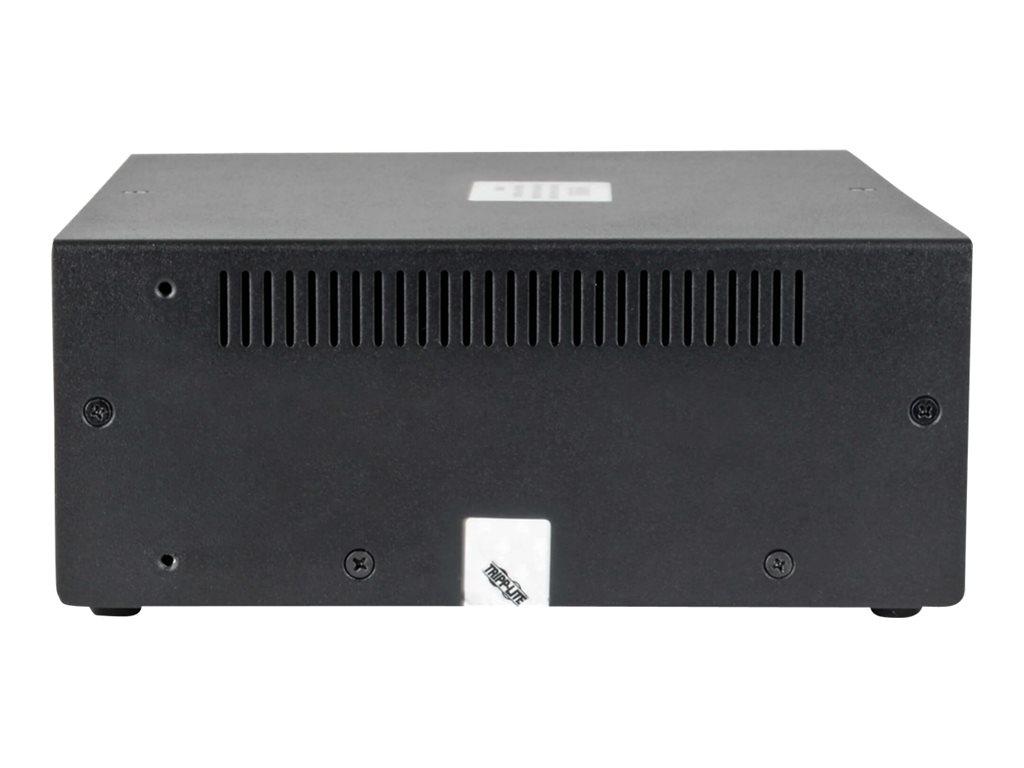

| Product Description | Tripp Lite Secure KVM Switch, Dual Monitor, DisplayPort to DisplayPort - 4-Port, 4K, NIAP PP3.0 Certified, Audio - KVM / audio switch - 4 ports - TAA Compliant |
| Device Type | KVM / audio switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM / audio |
| KVM Users Qty | 1 local user |
| Features | 4K resolution support, Pushbutton/Hotkey switching |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 12.6 in x 6.7 in x 2.7 in |
| Weight | 3 lbs |
| Color | Black |
| System Requirements | Microsoft Windows, Apple MacOS, Linux |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | 4K resolution support, Pushbutton/Hotkey switching |
| Expansion / Connectivity | |
| Interfaces | 8 x DisplayPort input ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x audio input mini-jack ¦ 1 x audio output mini-jack ¦ 2 x DisplayPort output ¦ 2 x keyboard (USB) / mouse (USB) Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FCC, UL, cUL, NIAP PP 3.0, GSA, RoHS, EDID compatible |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows, Apple MacOS, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 12.6 in |
| Depth | 6.7 in |
| Height | 2.7 in |
| Weight | 3 lbs |
