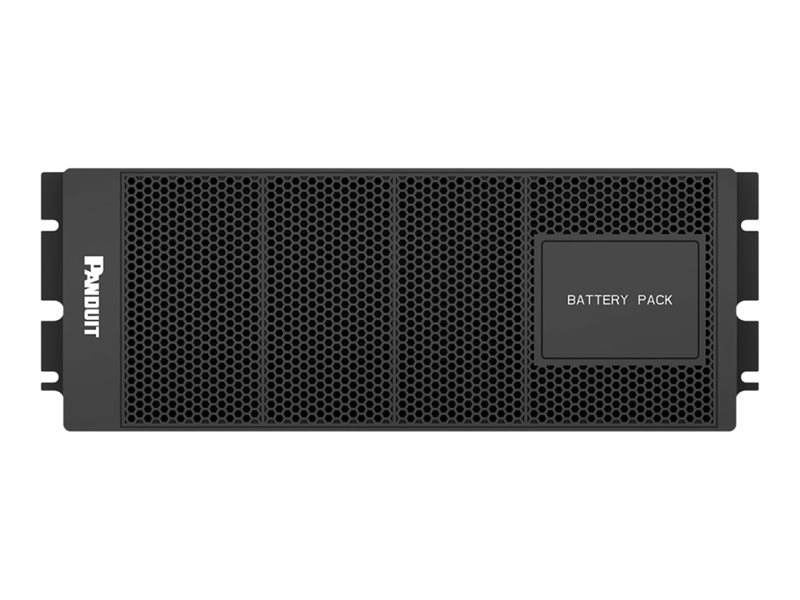

Battery enclosure (rack-mountable) - 40 x battery - lead acid - 4U
| Main Specifications | |
|---|---|
| Product Description | Panduit SmartZone - battery enclosure - lead acid |
| Device Type | Battery enclosure - rack-mountable |
| Rack Size | 4U |
| Weight | 337.3 lbs |
| Battery | Lead acid |
| Batteries Qty | 40 |
| Dimensions (WxDxH) | 17.4 in x 35.3 in x 5.2 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Battery enclosure - rack-mountable |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 62040-1:2008+A1:2013, ISTA 2B, IEC 62040-1:2013, BS 62040-1-2013 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Sound Emission | 0 dB |
| Battery | |
| Quantity | 40 |
| Technology | Lead acid |
| Voltage Provided | DC 480 V |
| Features | Maintenance free, valve-regulated |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 35.3 in |
| Height | 5.2 in |
| Weight | 337.3 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 396.83 lbs |
