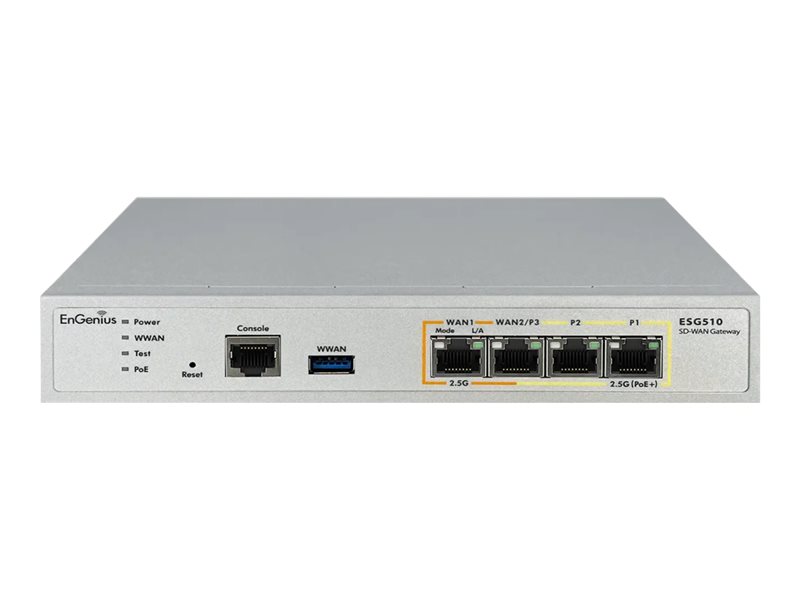

SD-WAN gateway - security, with quad core 1.6GHz and 4x 2.5G ports - 2.5GbE - cloud-managed - wall mountable
| Main Specifications | |
|---|---|
| Product Description | EnGenius Cloud Managed ESG510 - SD-WAN gateway - security, with quad core 1.6GHz and 4x 2.5G ports - cloud-managed |
| Device Type | SD-WAN gateway |
| Form Factor | Wall mountable |
| Processor | 1 x 1.6 GHz |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Performance | SPI firewall throughput: 4 Gbps ¦ VPN throughput: 970 Mbps |
| Capacity | Concurrent TCP sessions: 1000000 ¦ Concurrent VPN tunnels: 200 ¦ Maximum number of VLANs: 96 |
| Included Accessories | Power cord, wall mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 8.3 in x 7.1 in x 1.4 in |
| Weight | 34.21 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | SD-WAN gateway |
| Width | 8.3 in |
| Depth | 7.1 in |
| Height | 1.4 in |
| Weight | 34.21 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x 2.5 GBase-T - RJ-45 (WAN) ¦ 1 x 2.5 GBase-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x 2.5 GBase-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Power cord, wall mounting kit |
| Cables Included | 1 x console cable |
| Compliant Standards | FCC Part 15 B, IC, EMC Class B, BSMI, FCC |
| Networking | |
| Form Factor | Wall mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Network / Transport Protocol | PPPoE |
| Cloud-Managed | Yes |
| Performance | SPI firewall throughput: 4 Gbps ¦ VPN throughput: 970 Mbps |
| Capacity | Concurrent TCP sessions: 1000000 ¦ Concurrent VPN tunnels: 200 ¦ Maximum number of VLANs: 96 |
| Status Indicators | Power, WWAN, debug, PoE |
| Features | Cloud managed, cellular failover, firewall protection, site-site IPsec VPN, Quad-core CPU, load balancing, VPN client, Trusted Platform Module (TPM), port forwarding, NAT support, IPSec NAT-Traversal (NAT-T), Dead Peer Detection (DPD), router mode, bridge mode, Weighted Round Robin (WRR), static route, multiple WANs support, VLAN Tagging, Captive Portal, dynamic routing, DHCP client, DHCP relay, DHCP server, dynamic DNS, reset button, 3G/4G USB Dongle Support |
| Encryption Algorithm | DES, 3DES, 256-bit AES, MD5, SHA-1, 512-bit SHA-2, IKEv1, IKEv2 |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x 1.6 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB |
| Flash Memory | 8 GB |
