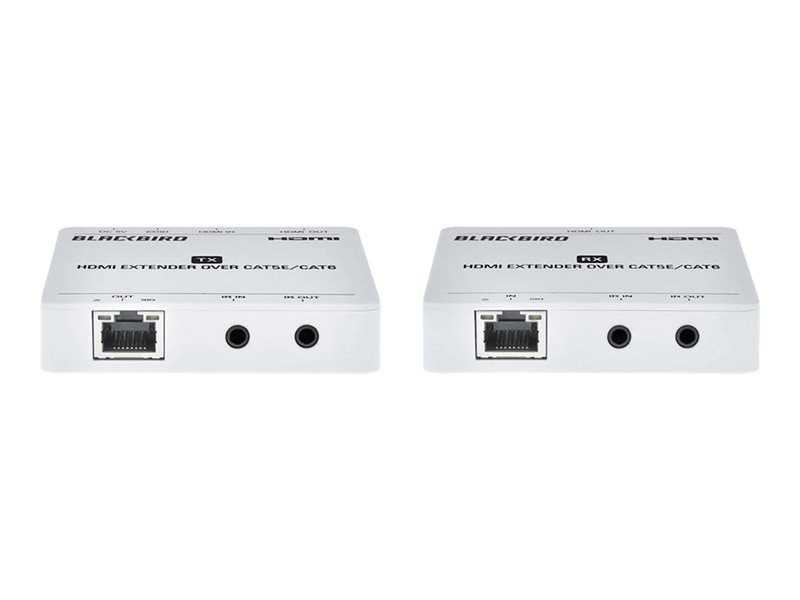

Video/audio/infrared extender - HDMI - over CAT 5e/6/7 - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | Monoprice Blackbird - video/audio/infrared extender - HDMI |
| Device Type | Video/audio/infrared extender |
| Form Factor | Desktop / rack mountable |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 5e/6/7 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | DC 5 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | Desktop / rack mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A ¦ 2 x HDMI (output) - 19 pin HDMI Type A ¦ 1 x USB (power only) - USB type C ¦ 1 x Ethernet (output) - RJ-45 ¦ 2 x IR (input) - 3.5 mm ¦ 2 x IR (output) - 3.5 mm ¦ 1 x Ethernet (input) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Power adapter, 2 x hook and loop strip, IR receiver, IR transmitter |
| Compliant Standards | FCC, ICES-003 Class B, NMB-003 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Transfer Distance | 230 ft |
| Features | Power over cable (PoC), EDID Management, HDMI loop out, 1080p/60 resolution support, 4K30Hz support, YCbCr 4:4:4, bidirectional |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | DC 5 V |
