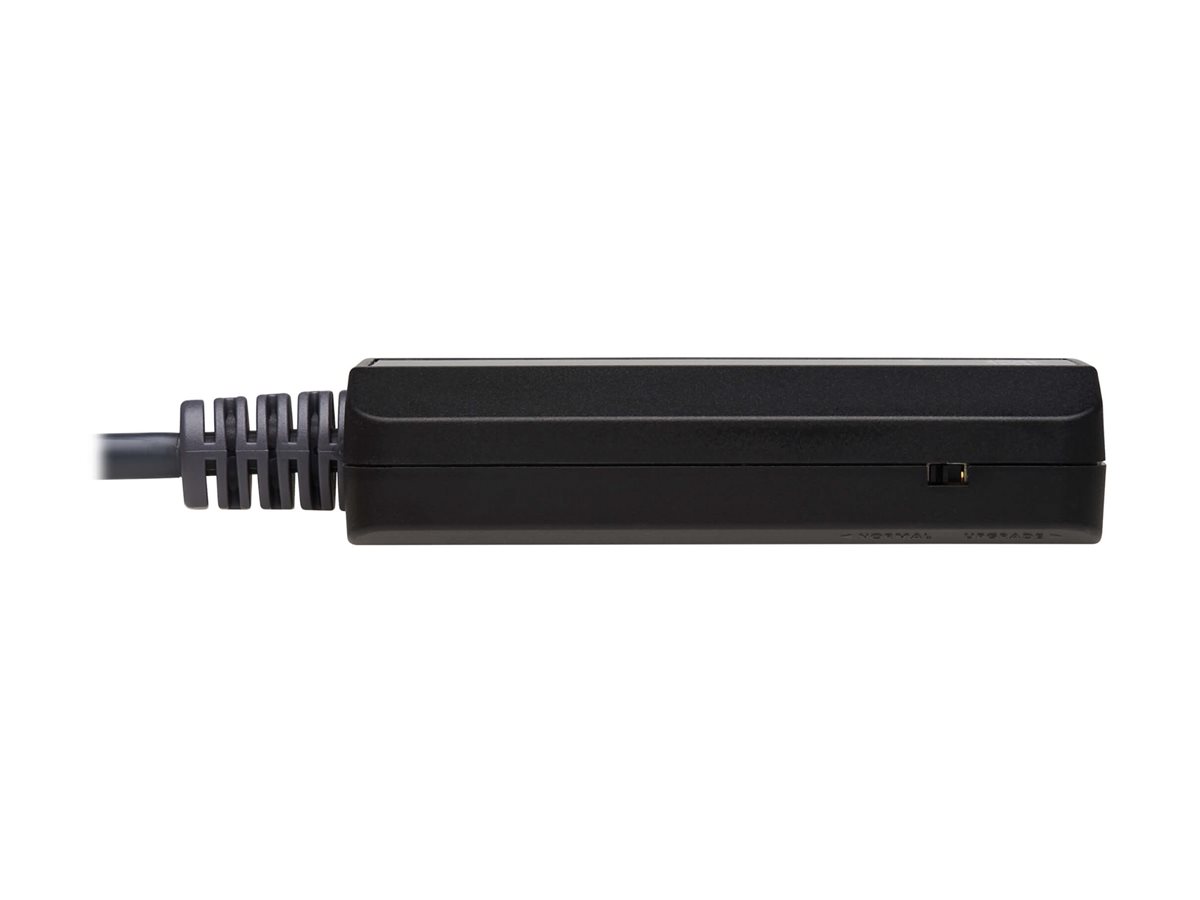

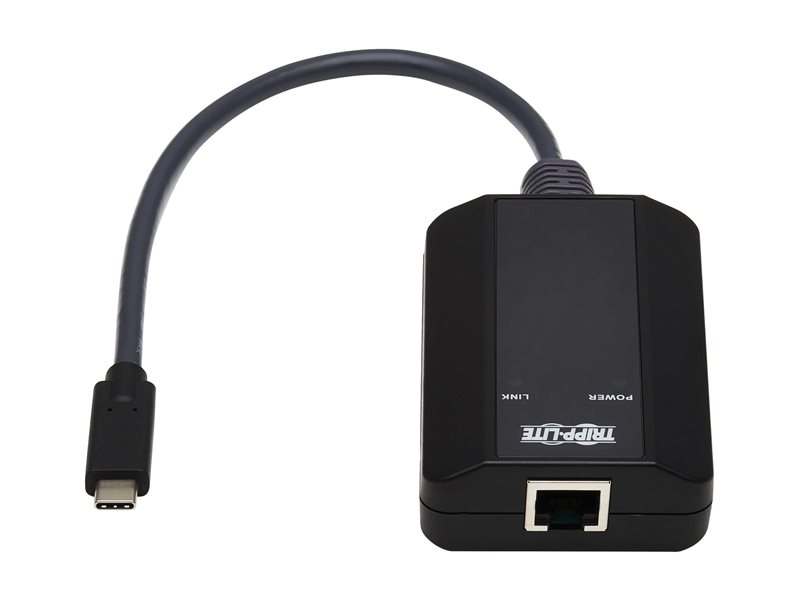

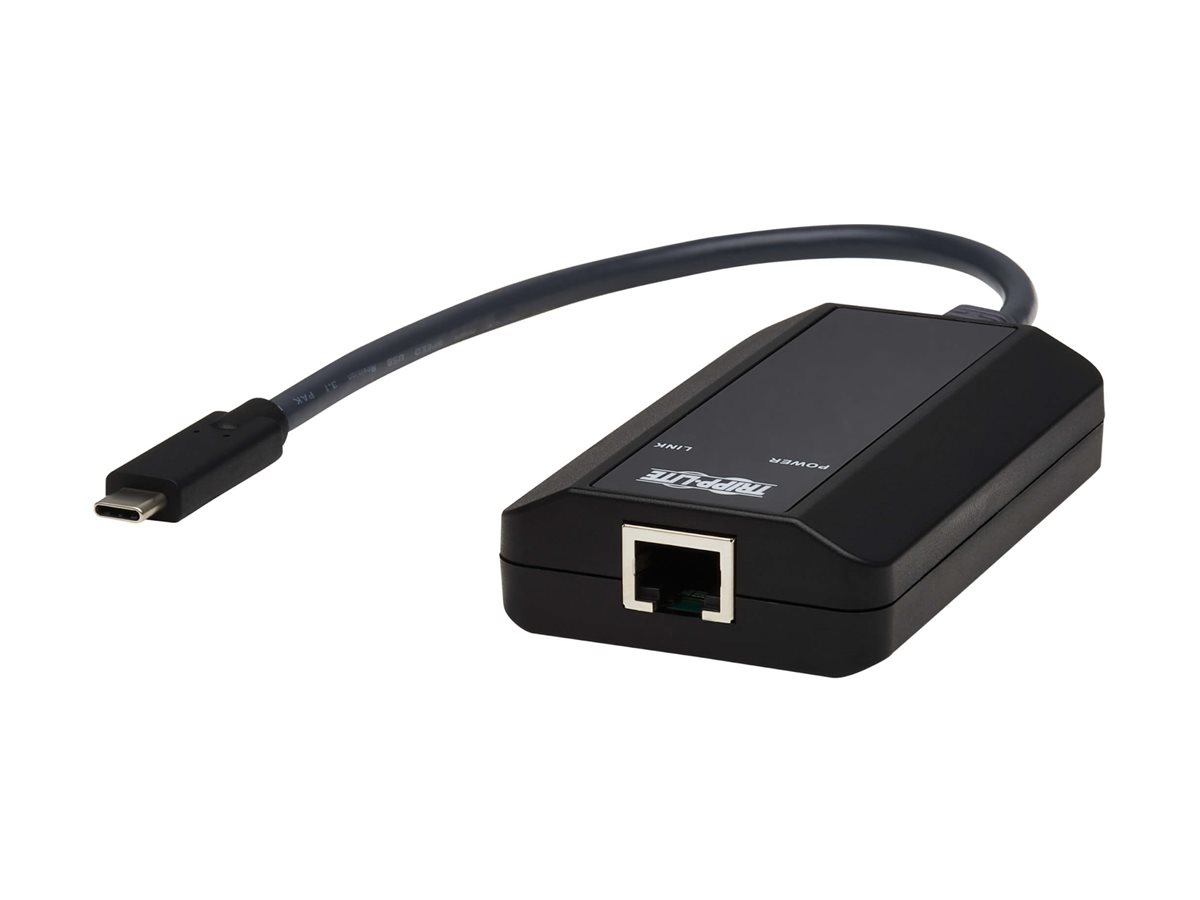

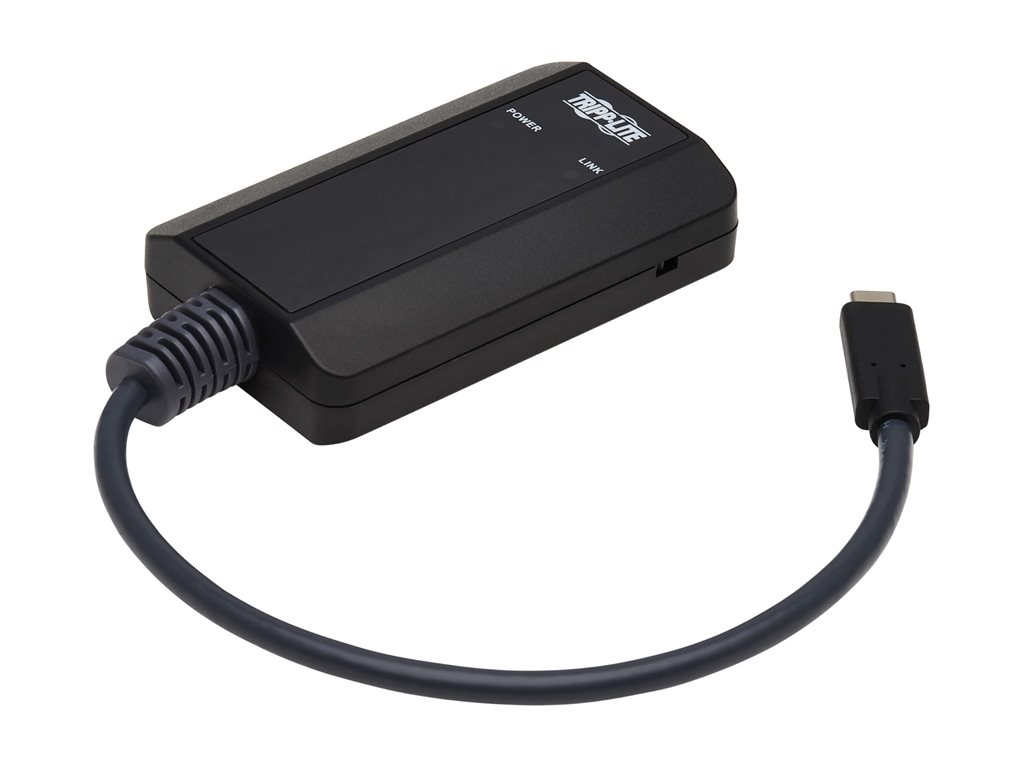

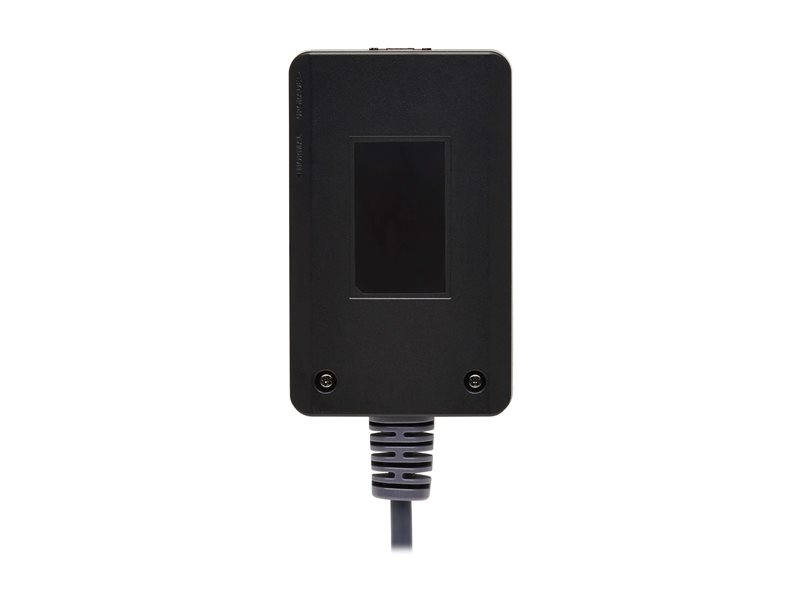

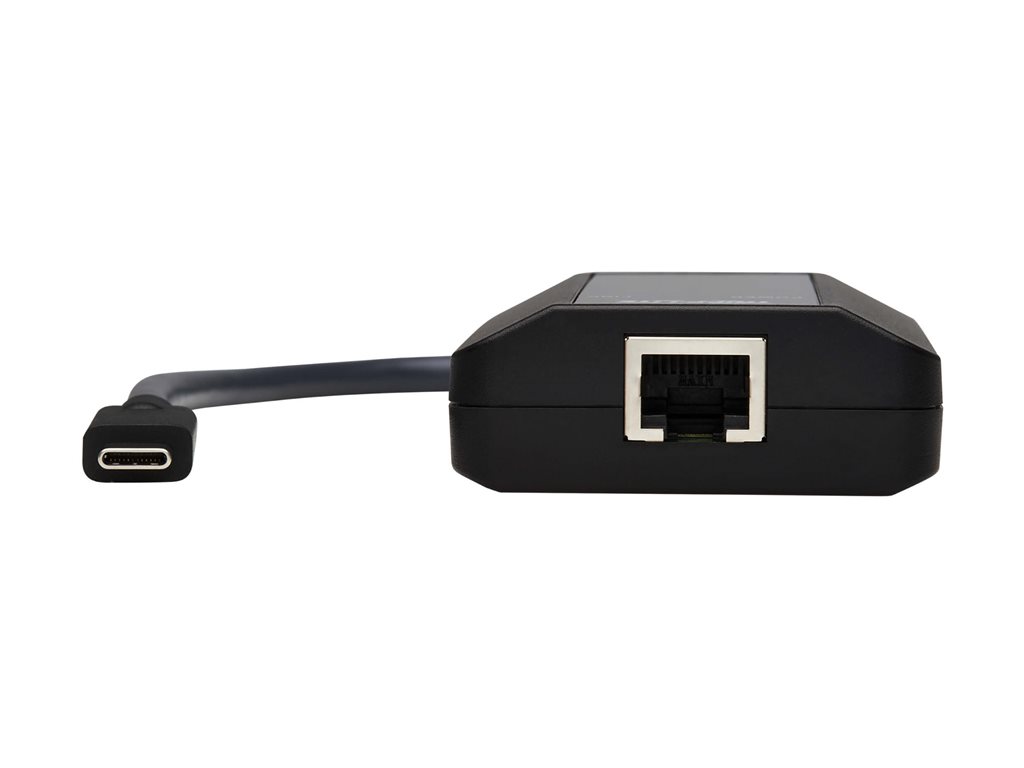

KVM extender - up to 164 ft - TAA Compliant - for P/N: B064-016-02-IPG, B064-032-02-IPG, B064-032-04-IPG, N001-003-GY, N001-014-GY
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series NetDirector USB-C Server Interface Unit with Virtual Media Support (B064 Series), TAA - KVM extender - TAA Compliant |
| Device Type | KVM extender |
| Form Factor | External |
| Max Transfer Distance | 164 ft |
| Dimensions (WxDxH) | 14.1 in x 2.2 in x 0.8 in |
| Weight | 3.88 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: B064-008-01-IPG, B064-016-01-IPG, B064-016-02-IPG, B064-016-02-IPH, B064-016-04-IPG, B064-016-04-IPH, B064-032-01-IPG, B064-032-01-IPH, B064-032-02-IPG, B064-032-02-IPH, B064-032-04-IPG, B064-032-04-IPH, B064C-16-1-IP, B064C-16-1X1-IP, N001-003-GY, N001-007-GY, N001-014-GY, N001-025-GY |
| General | |
| Device Type | KVM extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x network - RJ-45 female ¦ 1 x USB - Type C male |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - 9.8 in |
| Compliant Standards | VW-1, Plug and Play, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 1920 x 1200 / 1080p |
| Max Transfer Distance | 164 ft |
| Status Indicators | Power, link |
| Features | Virtual Media support |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 14.1 in |
| Depth | 2.2 in |
| Height | 0.8 in |
| Weight | 3.88 oz |
| Compatibility Information | |
| Designed For | P/N: B064-008-01-IPG, B064-016-01-IPG, B064-016-02-IPG, B064-016-02-IPH, B064-016-04-IPG, B064-016-04-IPH, B064-032-01-IPG, B064-032-01-IPH, B064-032-02-IPG, B064-032-02-IPH, B064-032-04-IPG, B064-032-04-IPH, B064C-16-1-IP, B064C-16-1X1-IP, N001-003-GY, N001-007-GY, N001-014-GY, N001-025-GY |
