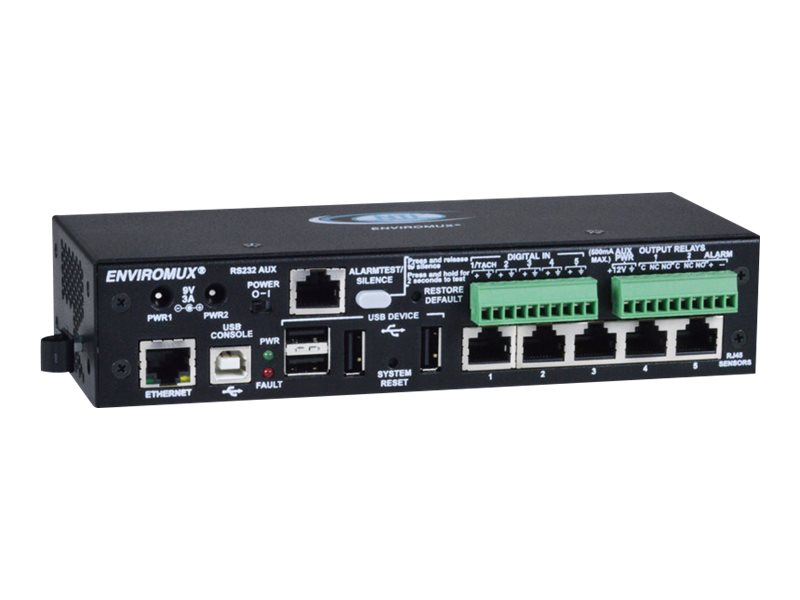

Environment monitoring device - 100Mb LAN - 1U
| Main Specifications | |
|---|---|
| Product Description | NTI ENVIROMUX Medium Enterprise Environment Monitoring System - environment monitoring device |
| Device Type | Environment monitoring device |
| Form Factor | External - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 7.9 in x 3 in x 1.7 in |
| Weight | 15.87 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Environment monitoring device |
| Height (Rack Units) | 1U |
| Built-in Devices | Temperature sensor, humidity sensor |
| Width | 7.9 in |
| Depth | 3 in |
| Height | 1.7 in |
| Weight | 15.87 oz |
| Expansion / Connectivity | |
| Interfaces | 5 x sensor - RJ-45 ¦ 5 x digital input - terminal block (screw) ¦ 2 x relay output - terminal block (screw) ¦ 1 x alarm - terminal block (screw) ¦ 4 x USB - Type A ¦ 1 x management (USB) - Type B ¦ 1 x RS-232 - RJ-45 ¦ 1 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| MTBF | 170,344 years |
| Compliant Standards | RoHS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, SMTP, DHCP, HTTP, HTTPs, IPv6 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Status Indicators | Power, fault |
| Features | ALERT notification, LDAP support, Syslog support, IP address filtering, half duplex mode, full duplex mode, SNTP support, surge protection, event log, SMS alert, reset button, 3G USB Dongle Support, cascadable, over-voltage protection, SNMP trap, e-mail notification, password protection |
| Encryption Algorithm | Triple DES, Blowfish, RSA, ARCFOUR, SSL 3.0, 256-bit AES, TLS 1.2 |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), XOAUTH2 authentication |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 15 Watt |
| Software / System Requirements | |
| OS Provided | Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
