KVM / audio switch - 4 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite Secure KVM Switch, 4-Port, Dual Head, HDMI to HDMI, 4K, NIAP PP4.0, Audio, TAA - KVM / audio switch - 4 ports - TAA Compliant |
| Device Type | KVM / audio switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | Dual head, 4K resolution support, 36-bit Deep Color support, 4:4:4 chroma subsampling support, Pushbutton/Hotkey switching, anti-tampering protection |
| Compliant Standards | USB 1.1 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 12.5 in x 6.7 in x 2.7 in |
| Weight | 4.21 lbs |
| Color | Black |
| Localization | United States, United Kingdom, Europe, Australia, North America |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: P782-006-HA, P782-010-HA |
| General | |
| Device Type | KVM / audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | Dual head, 4K resolution support, 36-bit Deep Color support, 4:4:4 chroma subsampling support, Pushbutton/Hotkey switching, anti-tampering protection |
| Compliant Standards | USB 1.1 |

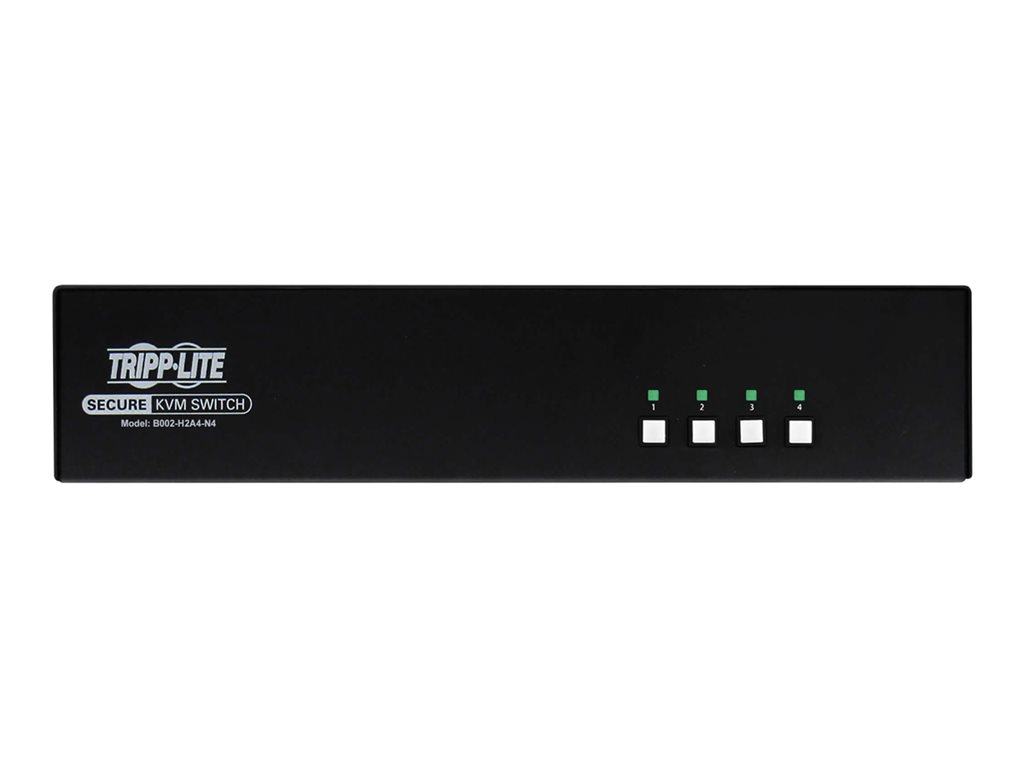

| Status Indicators | Port status, video |
| Expansion / Connectivity | |

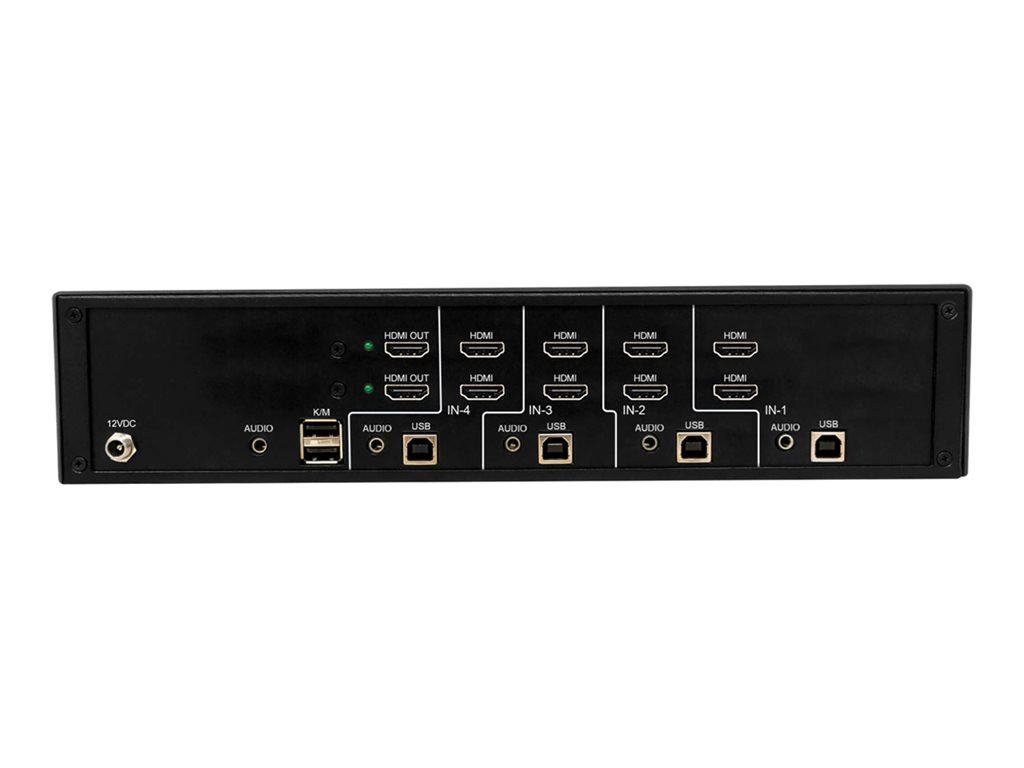

| Interfaces | 2 x HDMI output ¦ 1 x audio output mini-jack ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 8 x HDMI input ¦ 4 x audio input mini-jack ¦ 4 x USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |

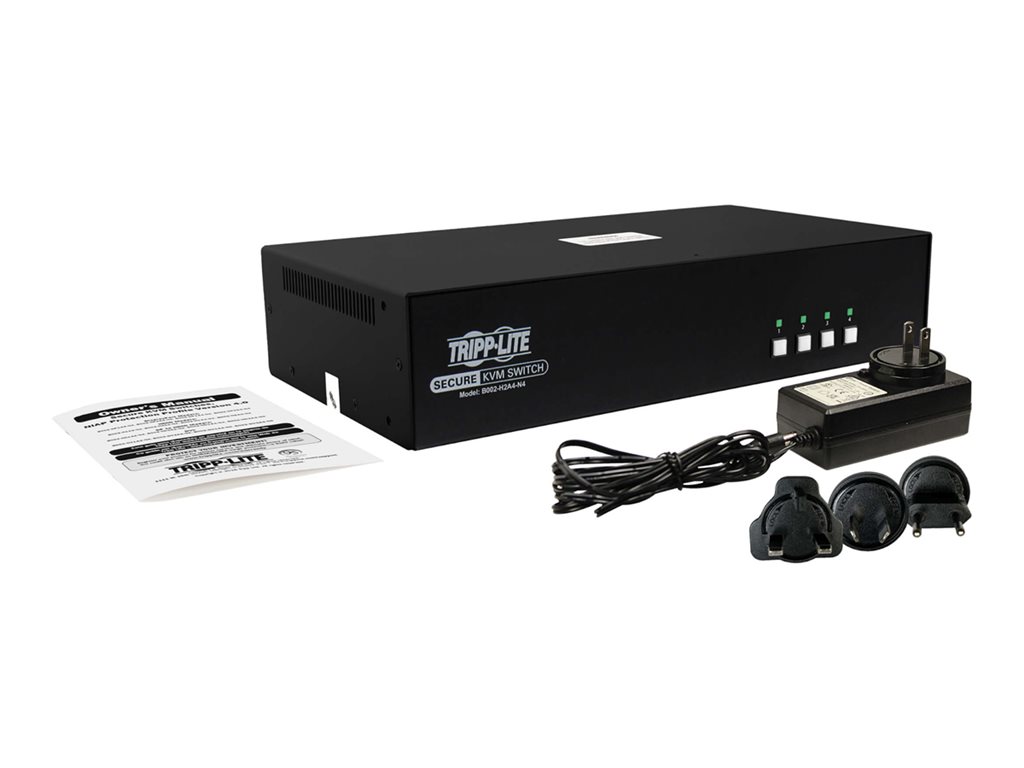

| Included Accessories | 4 power plug adapters |
| Cables Included | Power cable - 5 ft |
| Compliant Standards | NIAP PP 4.0, UKCA, cUL, NOM, RoHS, FCC, EDID compatible |
| TAA Compliant | Yes |
| Localization | United States, United Kingdom, Europe, Australia, North America |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 3 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 12.5 in |
| Depth | 6.7 in |
| Height | 2.7 in |
| Weight | 4.21 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 6 lbs |
| Compatibility Information | |
| Designed For | P/N: P782-006-HA, P782-010-HA |
