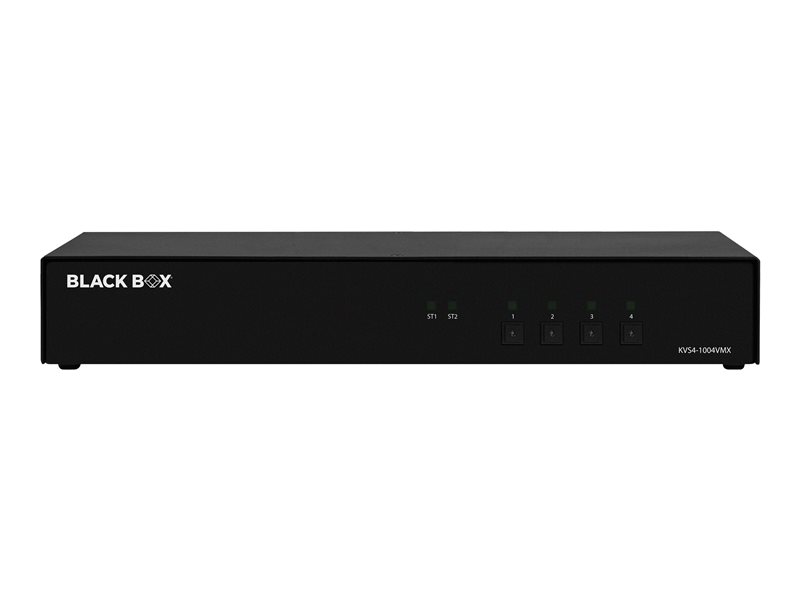

KVM / audio switch - NIAP 4.0 certified, DisplayPort with MST, HDMI Out - 4 x KVM / audio - 1 local user - desktop - TAA Compliant - with 3 years Double Diamond Warranty - for P/N: KVSC-16, KVSC-4, SKVMCBL-2DP-06, SKVMCBL-2DP-06TAA
| Main Specifications | |
|---|---|
| Product Description | Black Box SECURE KVS4-1004VMX - KVM / audio switch - NIAP 4.0 certified, DisplayPort with MST, HDMI Out - 4 ports - TAA Compliant |
| Device Type | KVM / audio switch - 4 ports |
| Bundled Services | 3 years Double Diamond Warranty |
| Subtype | HDMI / DisplayPort / audio |
| Ports | 4 x KVM / audio |
| KVM Users Qty | 1 local user |
| Features | NIAP Protection Profile 4.0, MST support, USB HID Transport |
| Dimensions (WxDxH) | 12.6 in x 6.7 in x 1.8 in |
| Weight | 4.21 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: KVSC-16, KVSC-4, SKVMCBL-2DP-06, SKVMCBL-2DP-06TAA |
| General | |
| Device Type | KVM / audio switch - 4 ports |
| Bundled Services | 3 years Double Diamond Warranty |
| Enclosure Type | Desktop |
| Subtype | HDMI / DisplayPort / audio |
| Ports | 4 x KVM / audio |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 60 Hz |
| Features | NIAP Protection Profile 4.0, MST support, USB HID Transport |
| Expansion / Connectivity | |
| Interfaces | 4 x DisplayPort input ¦ 4 x audio input mini-jack ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x CAC input Type B ¦ 1 x USB output Type A common access card (CAC) ¦ 1 x audio output mini-jack ¦ 2 x HDMI output ¦ 2 x keyboard (USB) / mouse (USB) Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | CAC, NIAP PP 4.0, EDID compatible, DDC |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 3 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 12.6 in |
| Depth | 6.7 in |
| Height | 1.8 in |
| Weight | 4.21 lbs |
| Compatibility Information | |
| Designed For | P/N: KVSC-16, KVSC-4, SKVMCBL-2DP-06, SKVMCBL-2DP-06TAA |
