Docking station - USB-C / USB4 / Thunderbolt 3 / Thunderbolt 4 - HDMI, DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | HyperDrive USB4 Mobile Dock - docking station - USB-C / USB4 / Thunderbolt 3 / Thunderbolt 4 - HDMI, DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / USB4 / Thunderbolt 3 / Thunderbolt 4 |
| Video Interfaces | HDMI, DP |
| Dimensions (WxDxH) | 3.3 in x 3.3 in x 0.8 in |
| Weight | 3.84 oz |
| Color | Gray |
| Networking | Gigabit Ethernet |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.3 in |
| Depth | 3.3 in |
| Height | 0.8 in |
| Weight | 3.84 oz |
| Enclosure Color | Gray |
| Expansion / Connectivity | |

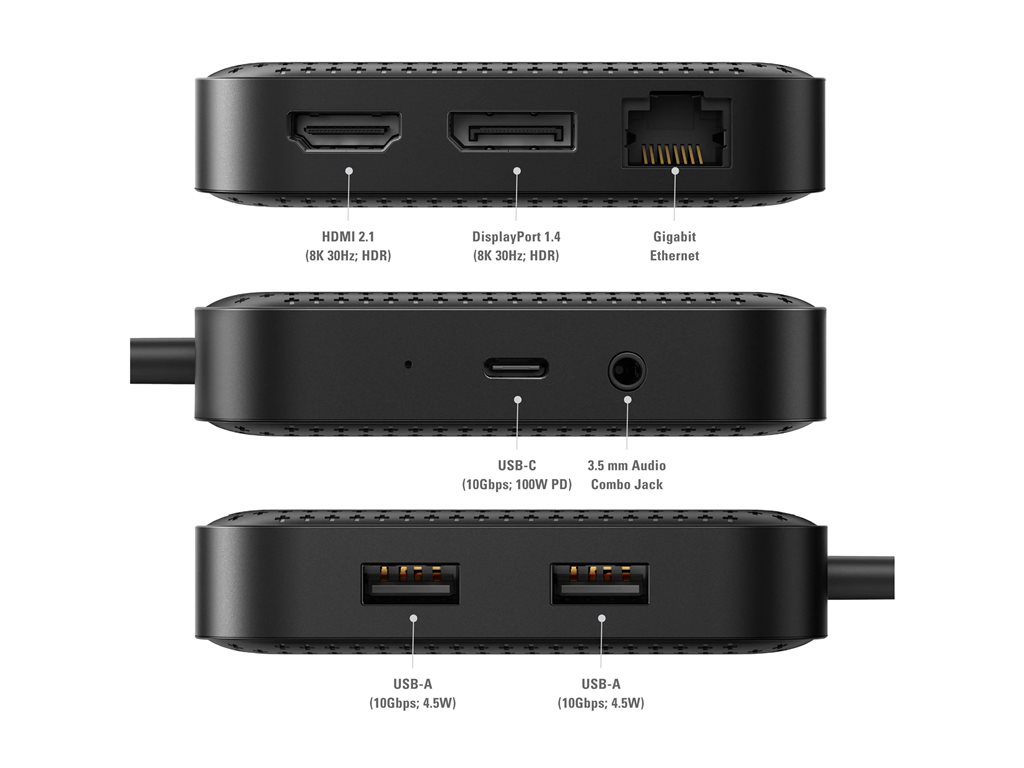

| Interfaces | 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Thunderbolt 4/USB4 with Power Delivery (85W) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB4 cable - external |
| Features | MST (multi-stream transport), DisplayPort Alt Mode, 85W power delivery |
| Compliant Standards | DisplayPort 1.4, RoHS, REACH, PAHS, UKCA, FCC, RCM, WEEE, TSCA |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Video | |
| Max Resolution Details | 8K - 30 Hz ¦ 4K - 60 Hz (DisplayPort 1.4 and HDMI simultaneously) |
| System Requirements | |
| OS Required | Google Chrome OS, Linux, Apple iPadOS, Windows 8 or later, Apple macOS 10.16 or later |
