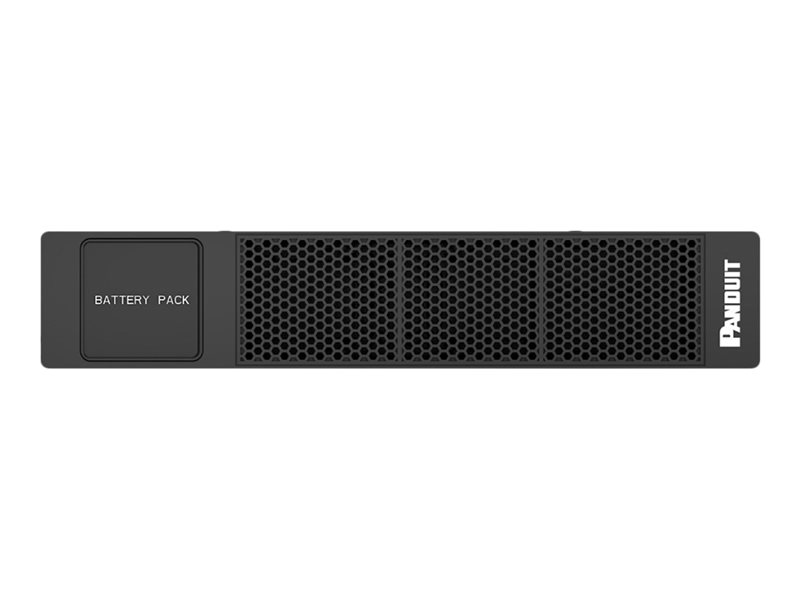

Battery enclosure (rack-mountable) - 8 x battery - lead acid - 2U - for P/N: U02N11V, U02S11V
| Main Specifications | |
|---|---|
| Product Description | Panduit SmartZone - battery enclosure - lead acid |
| Device Type | Battery enclosure - rack-mountable |
| Rack Size | 2U |
| Weight | 66.14 lbs |
| Battery | Lead acid |
| Batteries Qty | 8 |
| Dimensions (WxDxH) | 17.3 in x 21.7 in x 3.4 in |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: U02N11V, U02S11V |
| General | |
| Device Type | Battery enclosure - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | IEC 62040-1:2013, EN 62040-1:2008+A1:2013, UL 1778 5th edition, CSA C22.2 No.107.3-14, ISTA 2A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 40 dB |
| Battery | |
| Quantity | 8 |
| Technology | Lead acid |
| Voltage Provided | DC 48 V |
| Features | Maintenance free, valve-regulated |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 21.7 in |
| Height | 3.4 in |
| Weight | 66.14 lbs |
| Compatibility Information | |
| Designed For | P/N: U02N11V, U02S11V |
