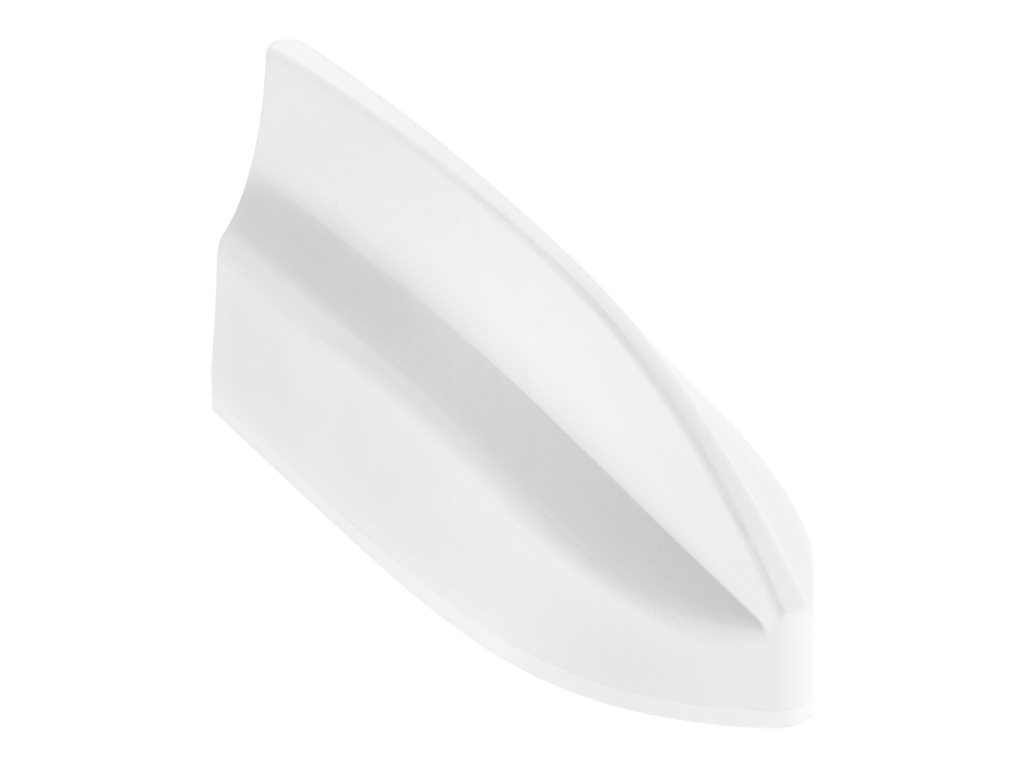

Antenna - navigation, cellular - omni-directional - threaded bolt mount
| Main Specifications | |
|---|---|
| Product Description | Airgain Antenna Plus MULTIMAX 4G - antenna |
| Device Type | Antenna |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Threaded bolt mount |
| Dimensions (WxDxH) | 2.4 in x 6.3 in x 2.5 in |
| Color | White |
| Compatibility | LTE, GNSS, GPS, GLONASS, GALILEO, BeiDou, QZSS |
| Frequency Range | 698 - 960 MHz, 1.7 - 2.7 GHz, 1550 - 1610 MHz |
| Directivity | Omni-directional |
| Features | RoHS, IP66, MIL-STD 810G, right-hand circular polarization (RHCP) |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Antenna |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Threaded bolt mount |
| Width | 2.4 in |
| Depth | 6.3 in |
| Height | 2.5 in |
| Color | White |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 2 x antenna cable - 15 ft |
| Antenna | |
| Compatibility | LTE, GNSS, GPS, GLONASS, GALILEO, BeiDou, QZSS |
| Frequency Range | 698 - 960 MHz, 1.7 - 2.7 GHz, 1550 - 1610 MHz |
| Directivity | Omni-directional |
| Features | RoHS, IP66, MIL-STD 810G, right-hand circular polarization (RHCP) |
| Connector Provided | |
| Type | Cellular antenna - SMA (male) ¦ GPS antenna - SMA (male) |
