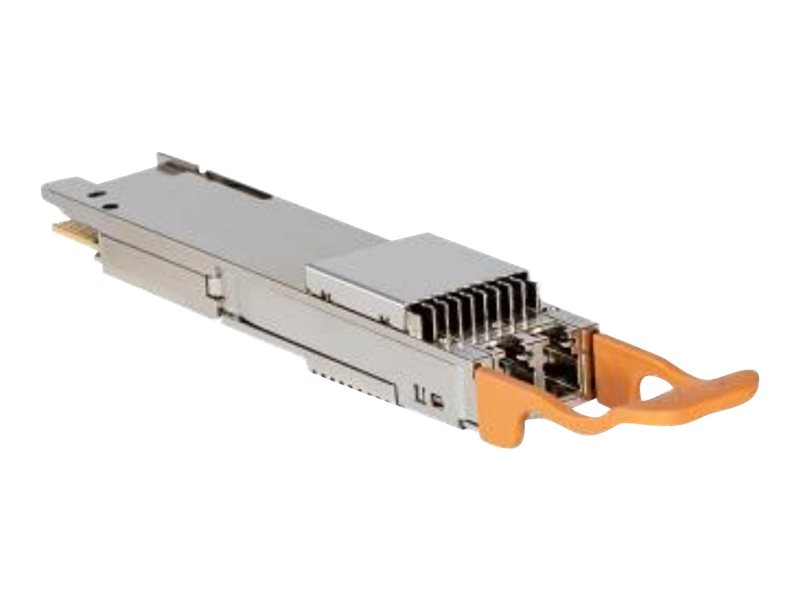

QSFP-DD transceiver module - 400GbE - 400GBase-ZR+ - LC single-mode - up to 74.6 miles
| Main Specifications | |
|---|---|
| Product Description | SmartOptics - QSFP-DD transceiver module - 400GbE |
| Device Type | QSFP-DD transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 400GBase-ZR+ |
| Data Transfer Rate | 400 Gbps |
| Data Link Protocol | 400GbE |
| Max Transfer Distance | 74.6 miles |
| General | |
| Device Type | QSFP-DD transceiver module |
| Form Factor | Plug-in module |
| Color | Gray |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBase-ZR+ - LC single-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | MSA, TUV, UL, FDA, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 400GBase-ZR+ |
| Data Link Protocol | 400GbE |
| Data Transfer Rate | 400 Gbps |
| Max Transfer Distance | 74.6 miles |
| Features | DWDM, 191.3 - 196.1 THz frequency, Digital Diagnostics Monitoring (DDM), LLDP support, RMON statistic counter |
| Environmental Parameters | |
| Min Operating Temperature | 59 °F |
| Max Operating Temperature | 167 °F |
