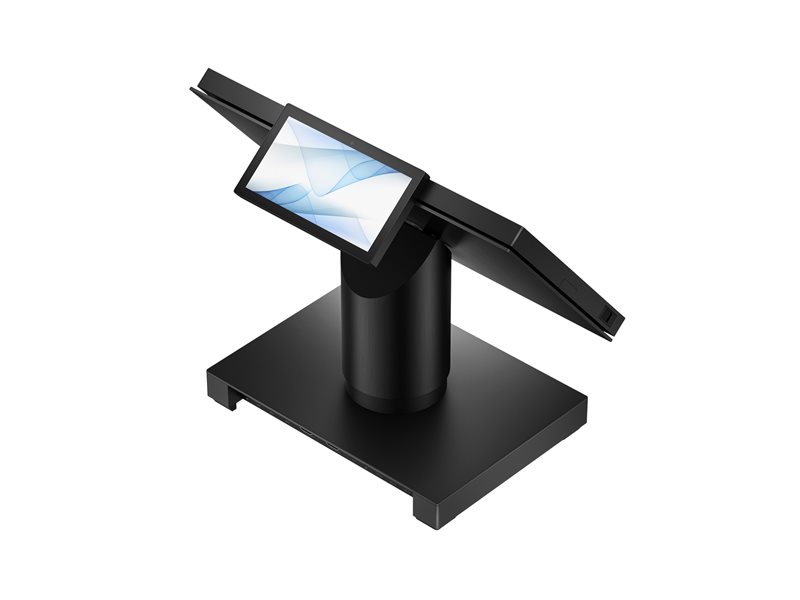

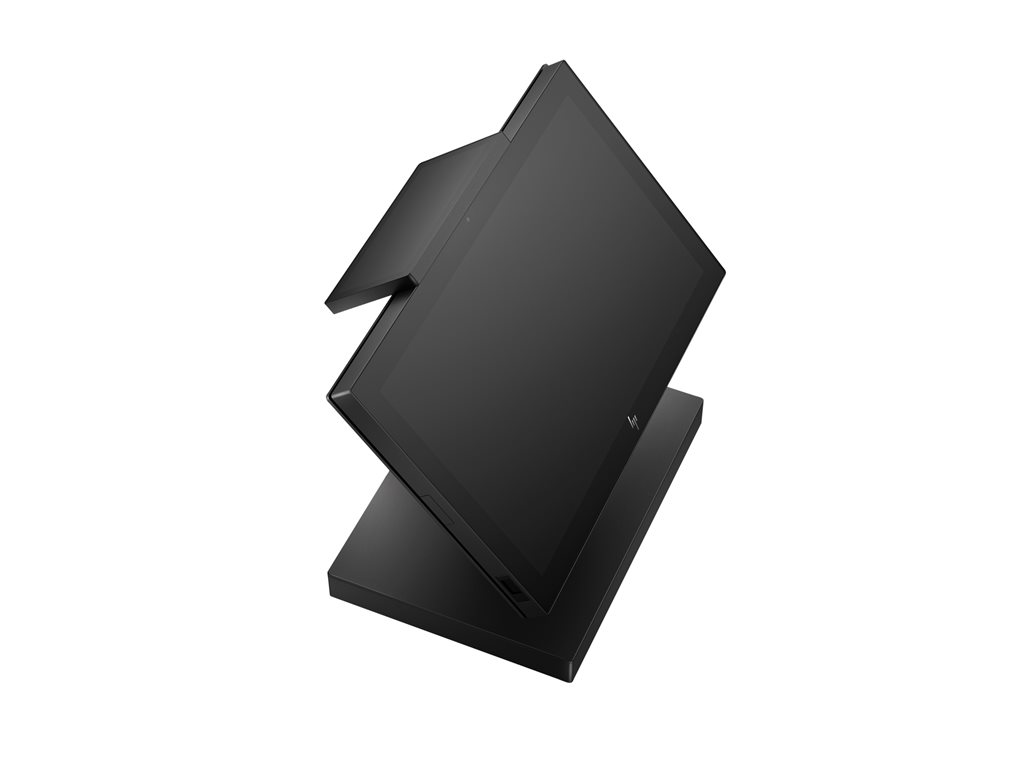

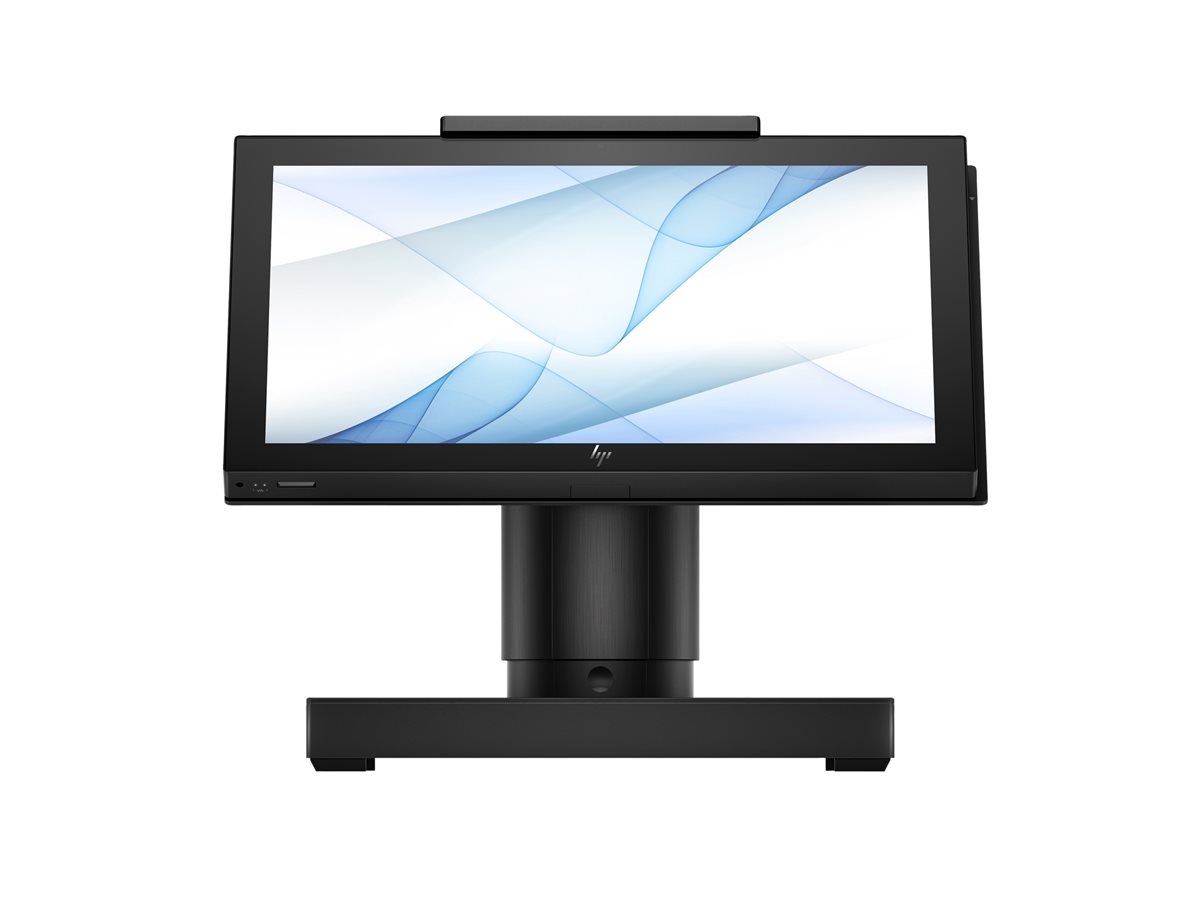

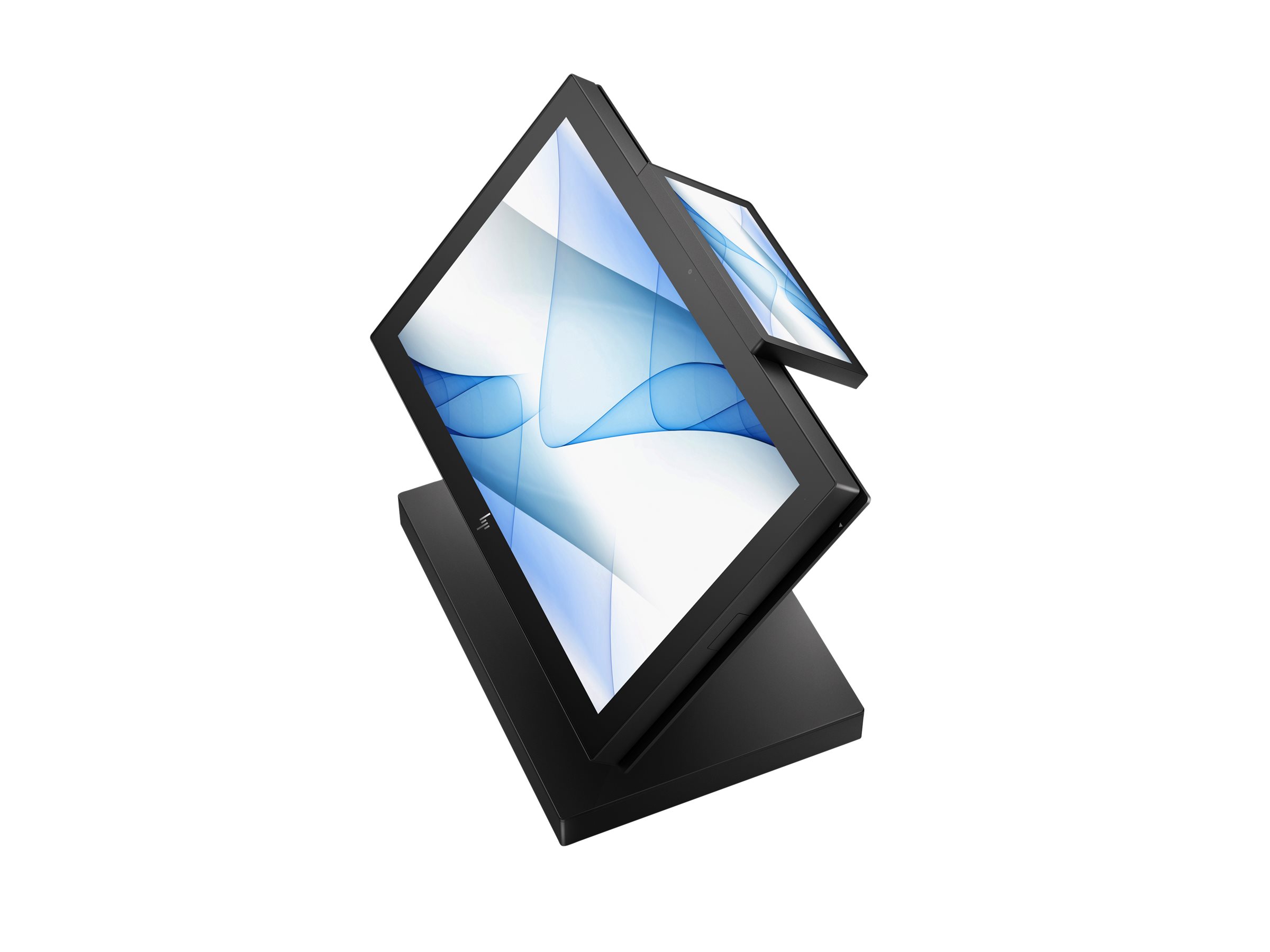

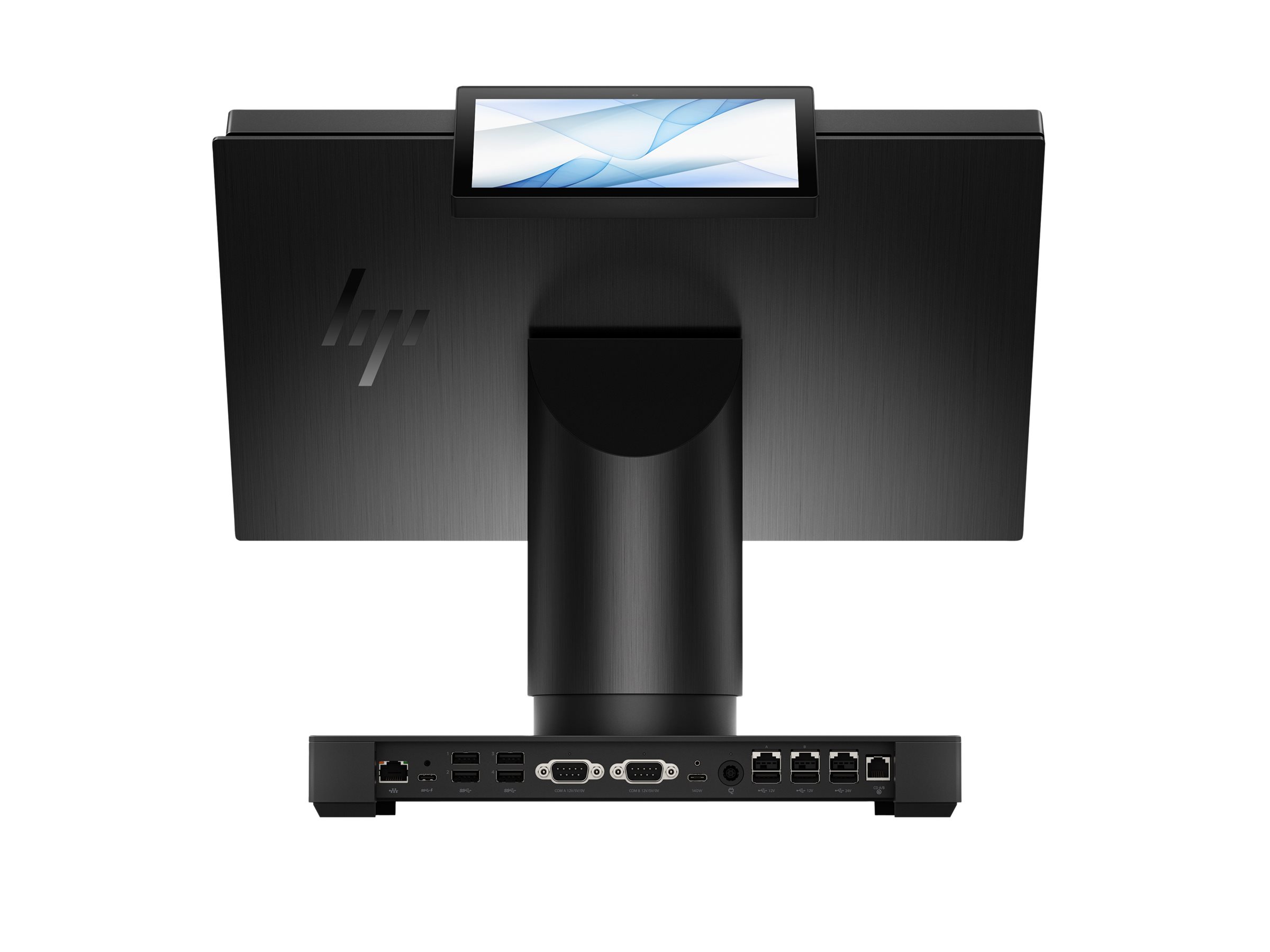

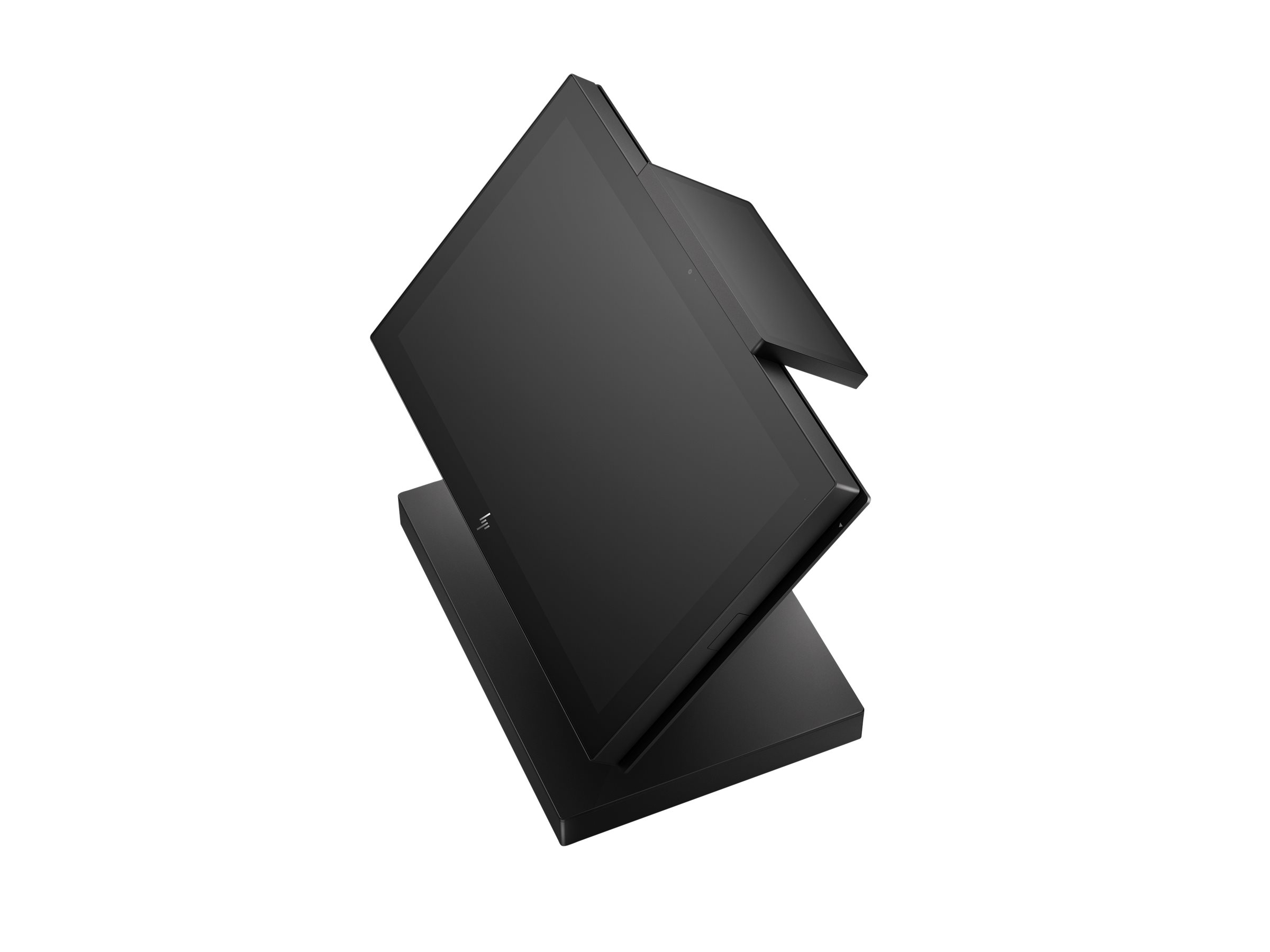

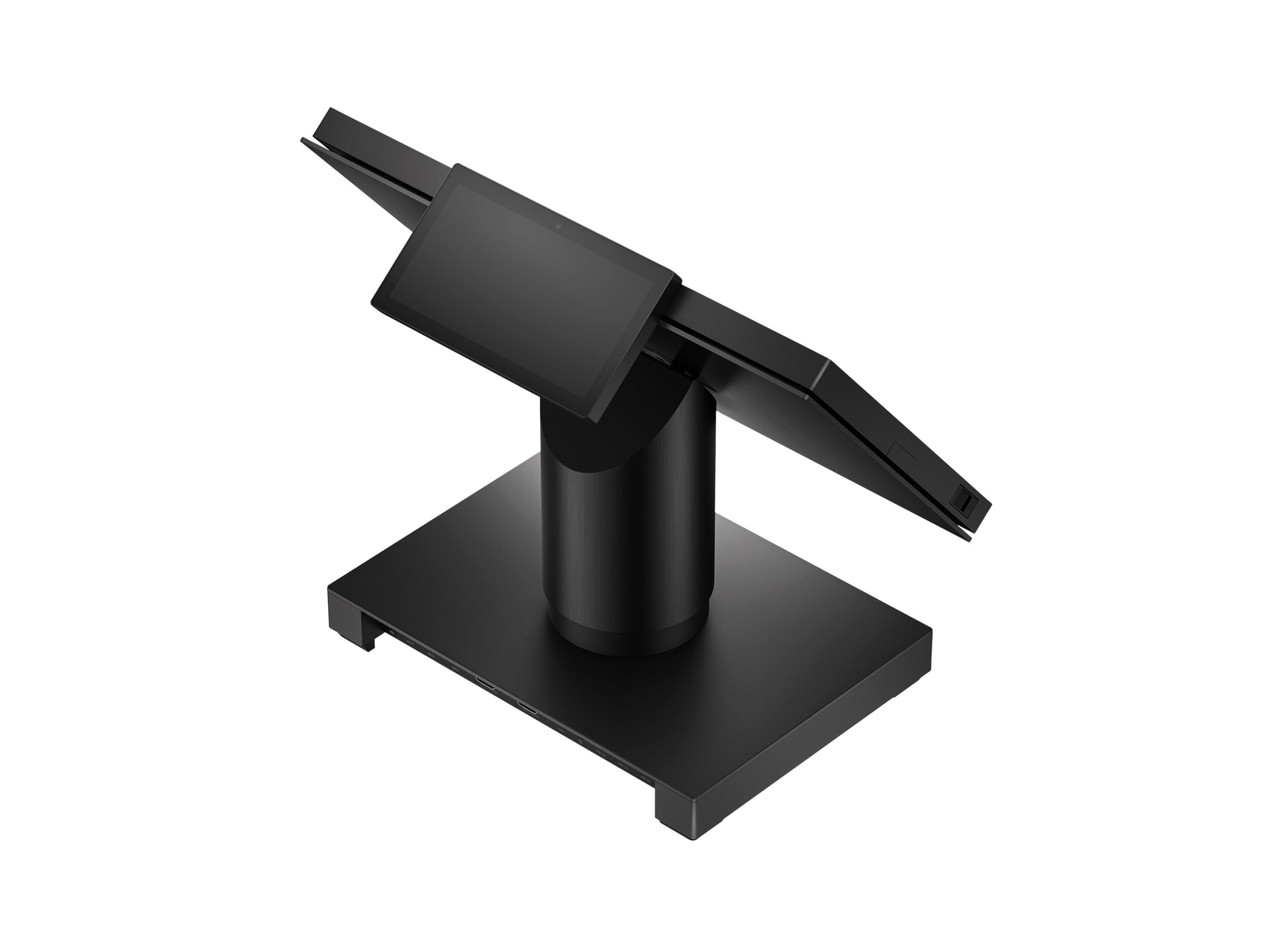

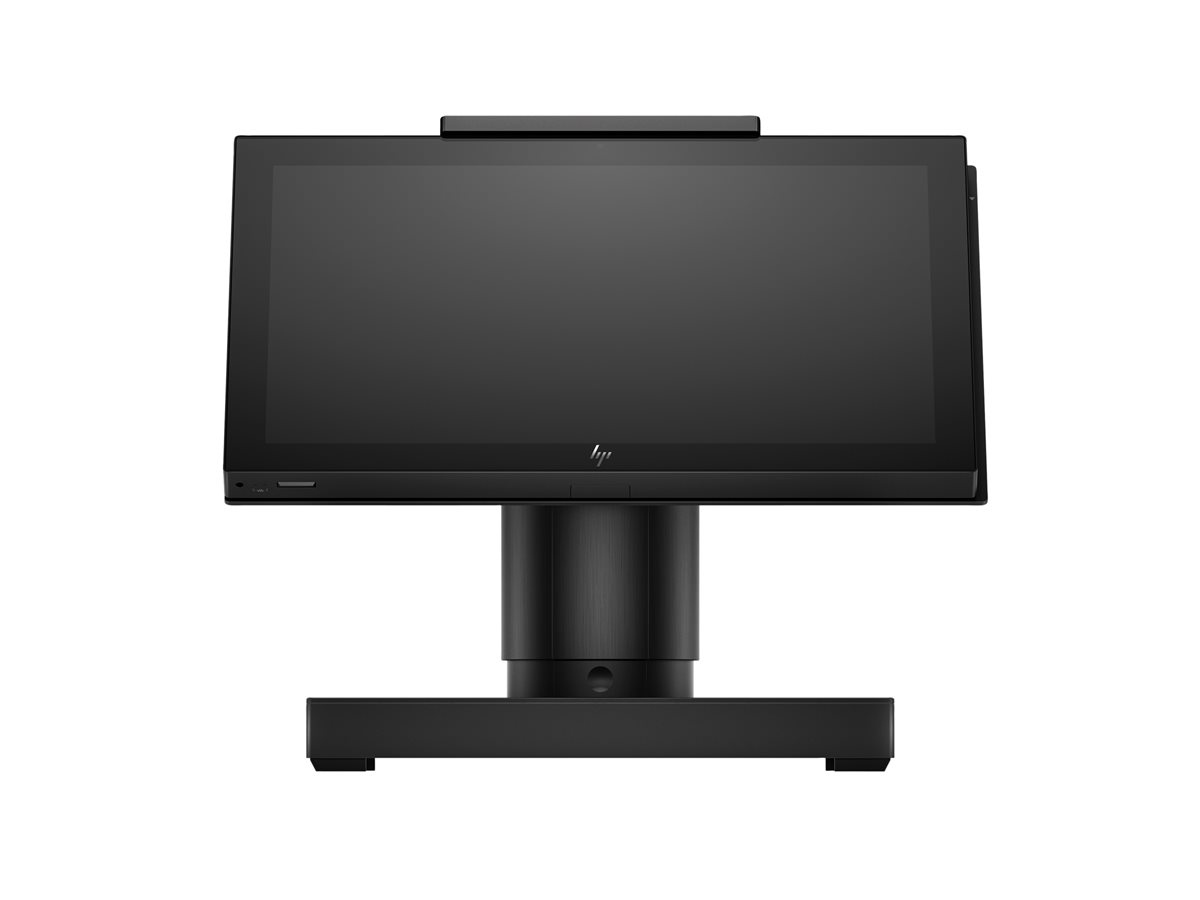

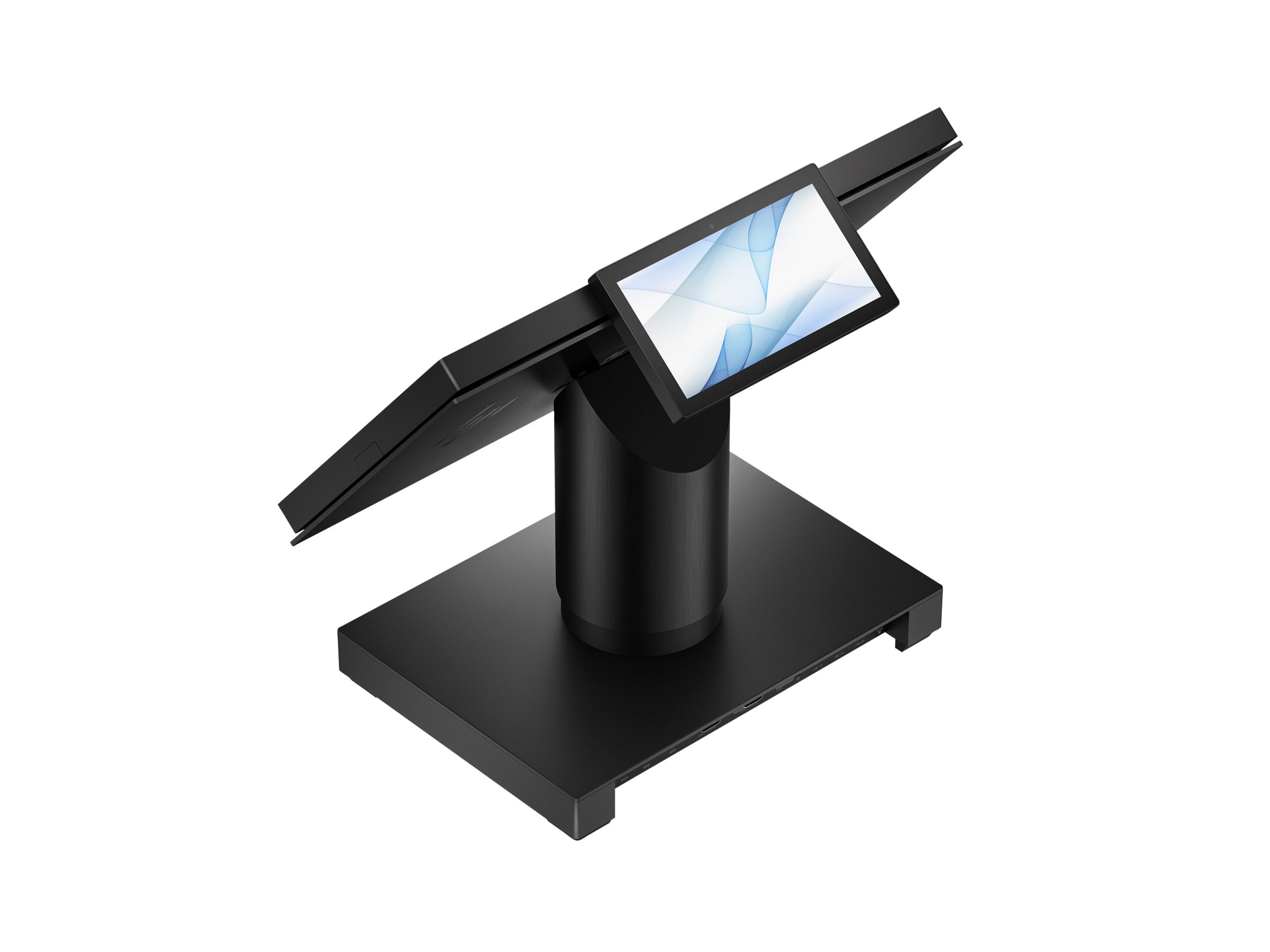

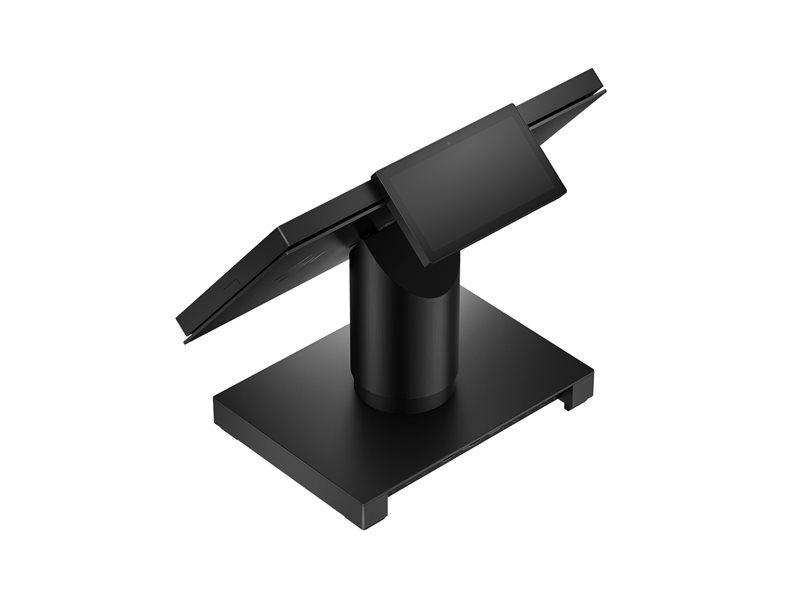

Customer display - 6.6" - touchscreen - 1400 x 720 - 400 cd/m² - 1000:1 - 25 ms - USB - black - USB
| Main Specifications | |
|---|---|
| Product Description | HP Engage customer display - 6.6" |
| Device Type | Customer display - 6.6" - touchscreen |
| Native Resolution | 1400 x 720 |
| Pixel Pitch | 0.105 mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 25 ms (rise+fall) |
| Color Gamut | 70% NTSC (CIE 1931) |
| Input Connectors | USB |

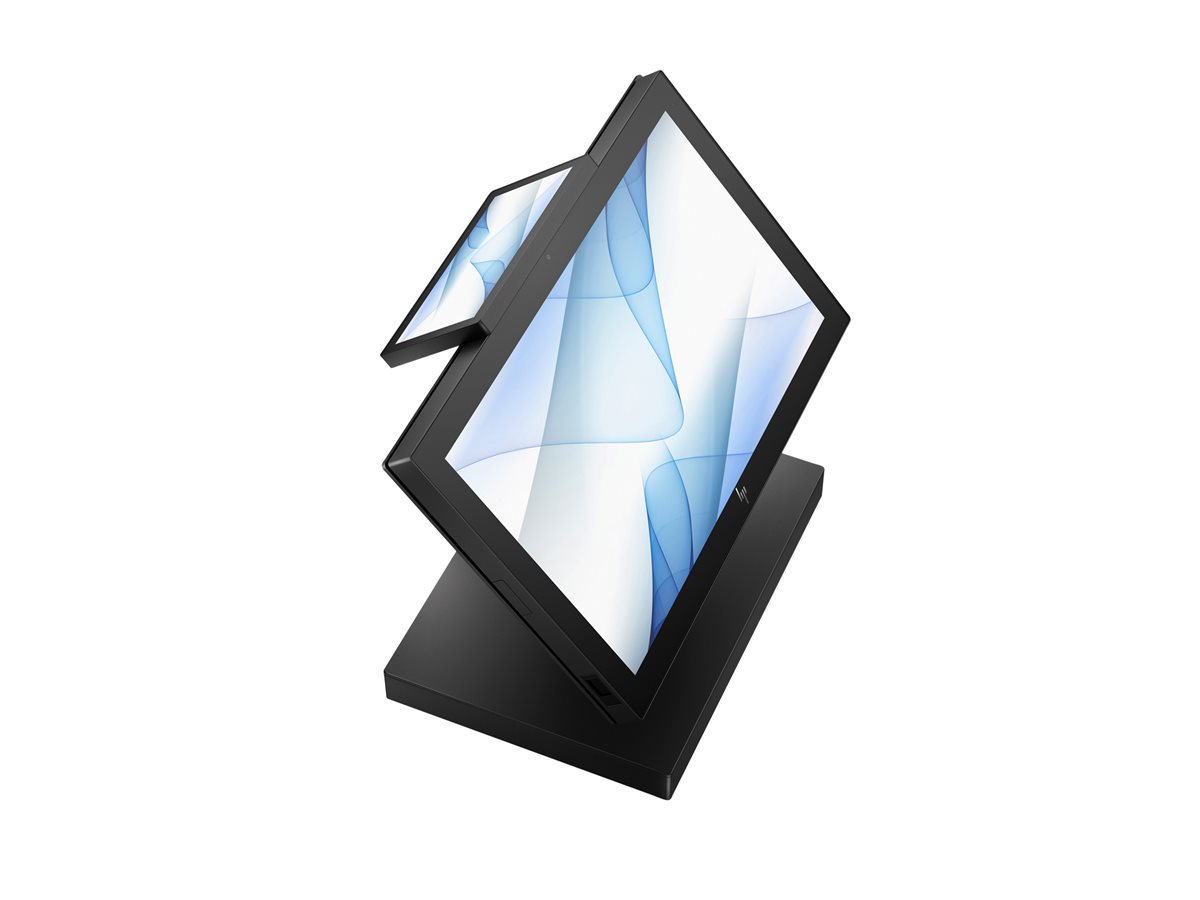

| Display Position Adjustments | Pivot (rotation) |
| Voltage | 5 V |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 3 in x 2.2 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | Customer display |
| Diagonal Size | 6.6" |
| Native Resolution | 1400 x 720 |
| Pixel Pitch | 0.105 mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Gamut | 70% NTSC (CIE 1931) |
| Response Time | 25 ms (rise+fall) |
| Horizontal Viewing Angle | 85 |
| Vertical Viewing Angle | 85 |
| Backlight Technology | LED backlight |
| Features | Edge-to-edge glass, dust resistant, bezel-free design |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 3 in x 2.2 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Input Voltage | 5 V |
| Power Consumption (Typical) | 6.5 watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Windows 10, CentOS 7.0, Windows 10 IoT Enterprise, FreeDOS 3.0, Ubuntu 18.04 LTS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Connectivity | |
| Interfaces | USB |
| Input | |
| Type | Touchscreen |
| Mechanical | |

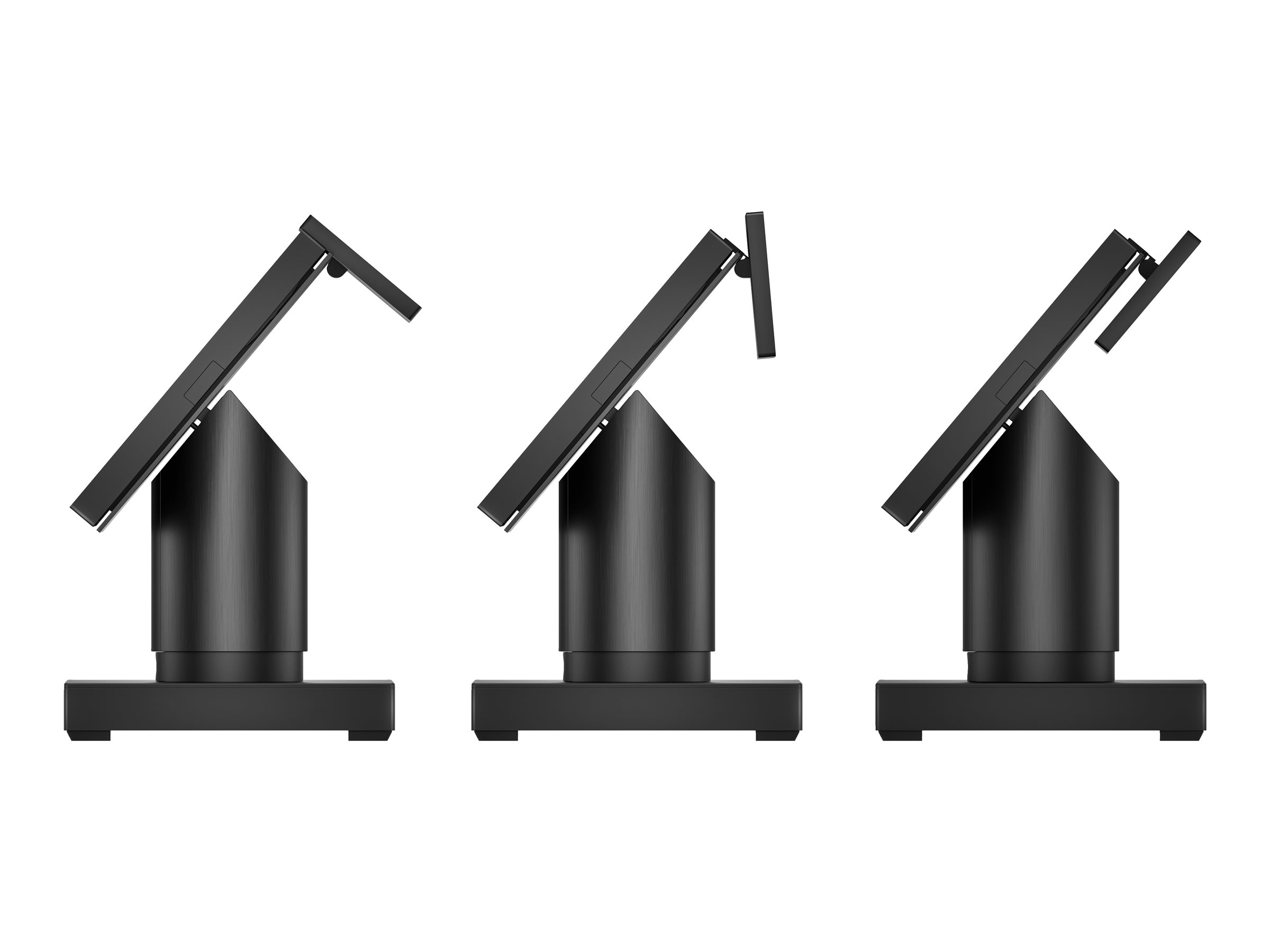

| Display Position Adjustments | Pivot (rotation) |
| Rotation Angle | 90 |
