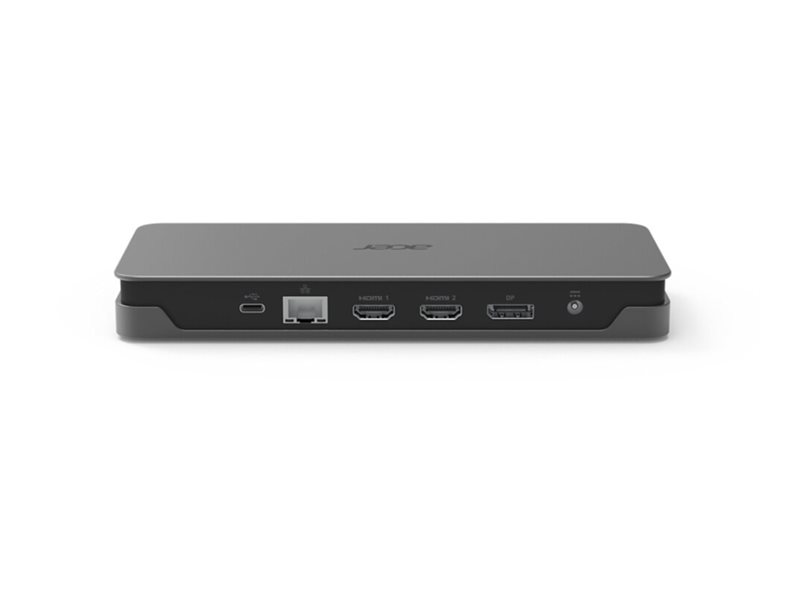

Docking station - USB-C 3.1 - HDMI, DP - 1GbE - 100 Watt
| Main Specifications | |
|---|---|
| Product Description | Acer ADK233 - docking station - USB-C 3.1 - HDMI, DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.1 |
| Video Interfaces | HDMI, DP |
| Dimensions (WxDxH) | 3.3 in x 7.9 in x 0.9 in |
| Weight | 11.29 oz |
| Color | Silver |
| Networking | Gigabit Ethernet |
| Power | Power adapter 100 Watt Power Provided |
| General | |
| Product Type | Docking station |
| Width | 3.3 in |
| Depth | 7.9 in |
| Height | 0.9 in |
| Weight | 11.29 oz |
| Enclosure Color | Silver |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C 3.1 Gen 1 ¦ 1 x network - RJ-45 ¦ 2 x audio / video - HDMI ¦ 1 x display / video - DisplayPort ¦ 1 x headphones / speakers ¦ 3 x USB 3.1 Gen 1 ¦ 1 x USB-C with Power Delivery (85 W) |
| Miscellaneous | |
| Input Device | SD card reader, microSD card reader |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Power Provided | 100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz (Single Display (DisplayPort 1.4 / HDMI)) ¦ 3840 x 2160 - 30 Hz (Dual Display (DisplayPort + HDMI / 2 x HDMI)) ¦ 3840 x 2160 - 30 Hz (Triple Display (2 x HDMI / DisplayPort)) |
| System Requirements | |
| OS Required | Microsoft Windows 10 / 11 |
