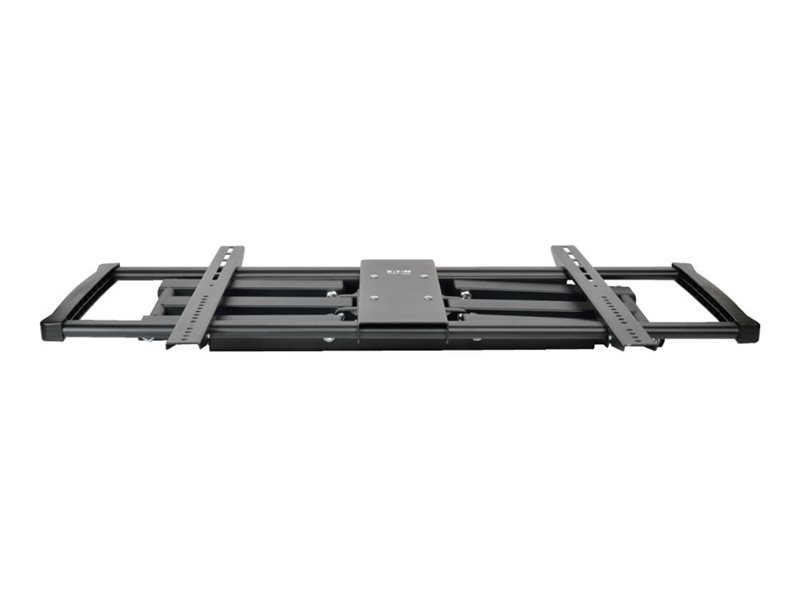

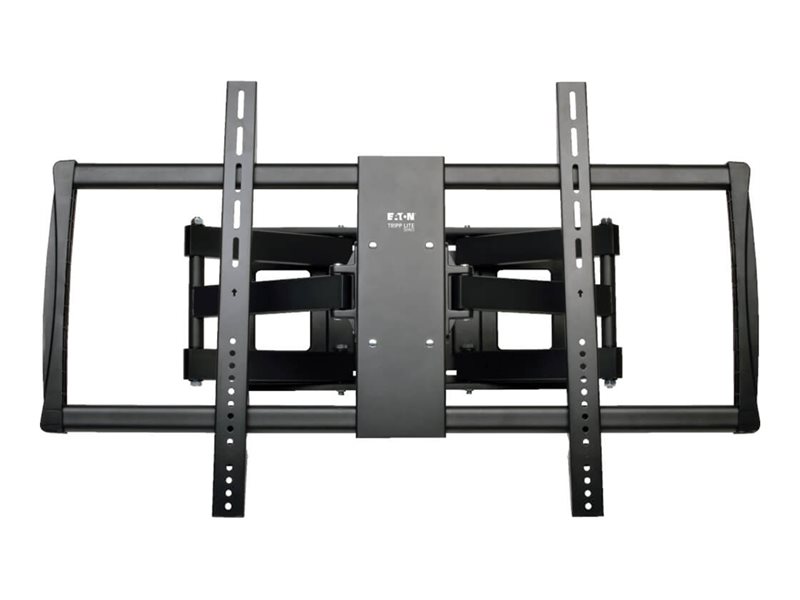

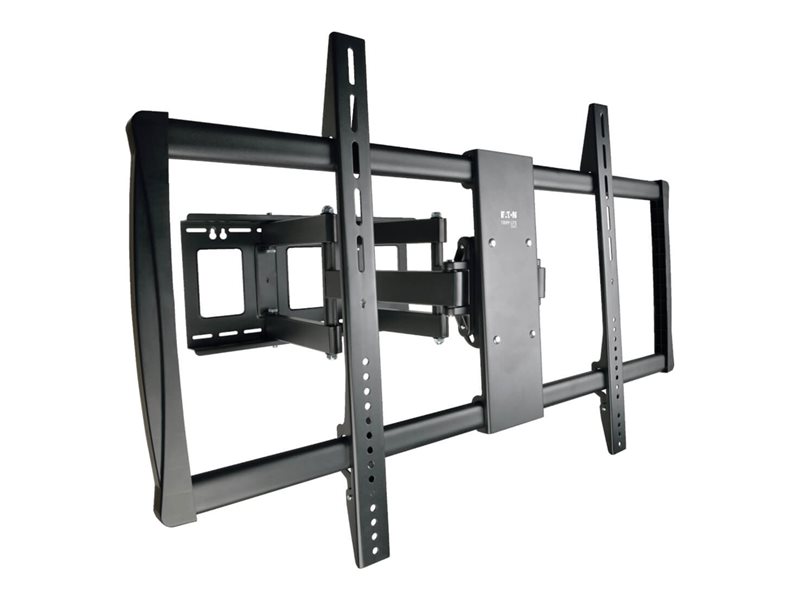

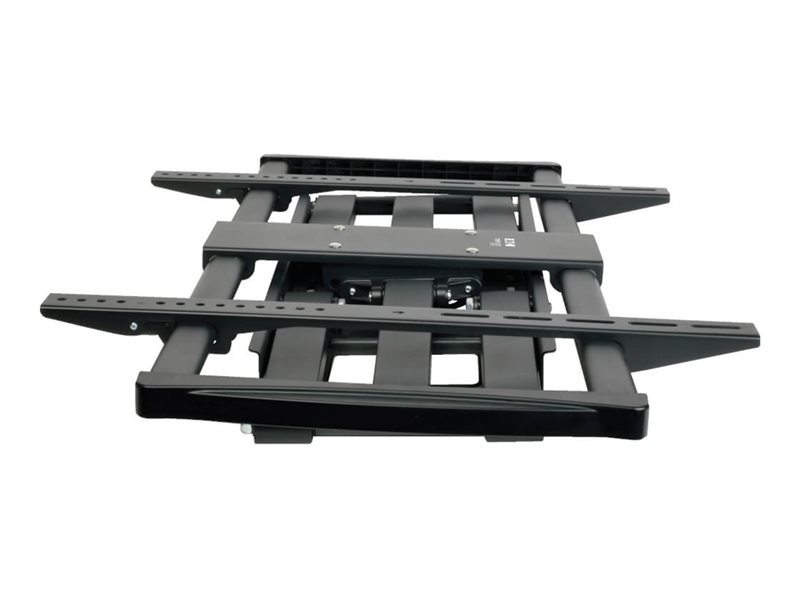

Bracket - for LCD display - steel - black - screen size: 60"-100" - wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Display TV Wall Monitor Mount Swivel/Tilt 60" to 100" TVs / EA / Flat-Screens bracket - for LCD display - black |
| Product Type | Bracket - wall-mountable |
| Dimensions (WxDxH) | 36.5 in x 24.6 in x 24.2 in |
| Tilt | -15° to 15° |
| Leveling | -3° to 3° |
| Swivel | 90° |
| Adjustments | Leveling, tilt, swivel |
| Weight | 31.53 lbs |
| Recommended Use | LCD display |
| Recommended Display Size | 60"-100" |
| VESA Mounting Interface | 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 800 x 600 mm, 900 x 600 mm, 300 x 300 mm |
| Max Load Weight | 299.8 lbs |
| Material | Steel |
| Color | Black |
| Package Content | 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 8 x spacers (small), 4 x spacers (big), 4 x concrete anchors, hex key, 4 x cable guides, mounting template, wall plate, wall brackets, 4 x anchor bolts, 4 x M4x6 screws, 2 x D8 washers |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Width | 36.5 in |
| Depth | 24.6 in |
| Height | 24.2 in |
| Weight | 31.53 lbs |
| Material | Steel |
| Color | Black |
| Package Content | 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 8 x spacers (small), 4 x spacers (big), 4 x concrete anchors, hex key, 4 x cable guides, mounting template, wall plate, wall brackets, 4 x anchor bolts, 4 x M4x6 screws, 2 x D8 washers |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| AV Furniture | |
| Type | Bracket |
| Recommended Use | LCD display |
| Placing / Mounting | Wall-mountable |
| VESA Mounting Interface | 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 800 x 600 mm, 900 x 600 mm, 300 x 300 mm |
| Recommended Display Size | 60"-100" |
| Tilt | -15° to 15° |
| Leveling | -3° to 3° |
| Swivel | 90° |
| Adjustments | Leveling, tilt, swivel |
| Max Load Weight | 299.8 lbs |
| Finish | Powder coated |
