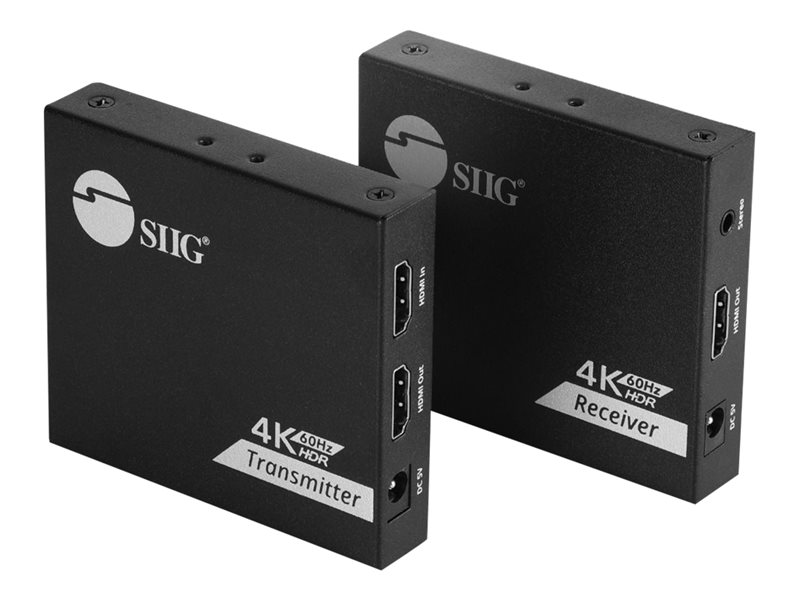

Video/audio/infrared extender - HDMI, infrared - over CAT 6/7 - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | SIIG 4K 60Hz HDMI Over Cat6 Extender - video/audio/infrared extender - HDMI, infrared |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI, infrared |
| Transmission Medium | CAT 6/7 |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x IR (transmitter) - mini jack ¦ 1 x audio line-out (receiver) - mini jack ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x IR (receiver) - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

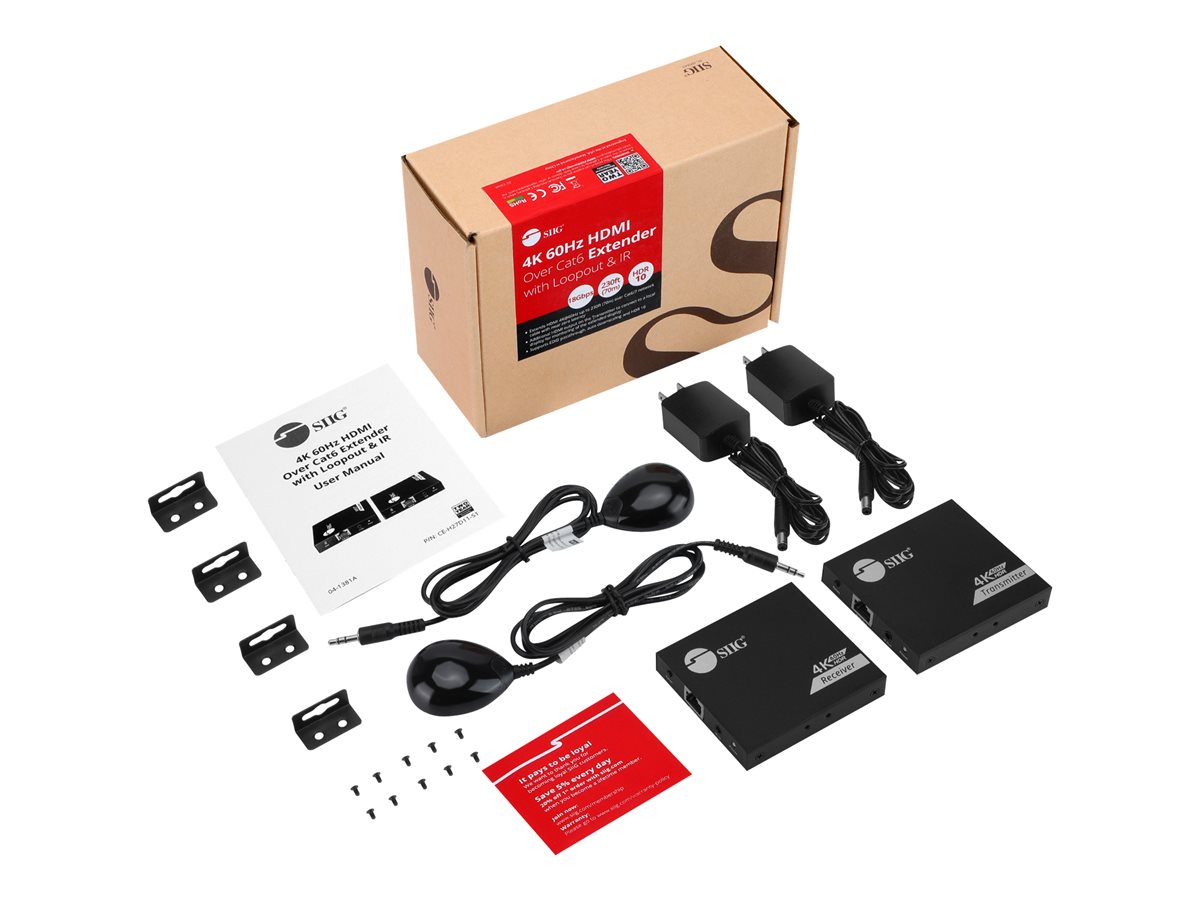

| Included Accessories | Mounting kit |
| Compliant Standards | Plug and Play, UL, RoHS, HDCP 2.2 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, infrared |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Features | Surge protection, reset button, 7.1 channel audio support, EDID Pass-Through, metal housing, 5.1 channel audio support, DTS-HD support, lightning protection, Dolby Digital support, down-scaling, HDMI loop out, audio extractor, ESD Protector, near zero latency |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 3.4 in x 3 in x 0.6 in / 4.8 oz ¦ Receiver: 3.4 in x 3 in x 0.6 in / 4.8 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.8 in |
| Shipping Depth | 5.9 in |
| Shipping Height | 3.1 in |
| Shipping Weight | 22.71 oz |
