Power amplifier - 8 x 160 Watt
| Main Specifications | |
|---|---|
| Product Description | LEA Professional Connect Series 168 - power amplifier |
| Product Type | Power amplifier |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 105 dB 0.1% |
| Equalizer | Parametric - 8 bands |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 14.3 in x 1.7 in |
| Weight | 13.56 lbs |
| Manufacturer Warranty | 6-year warranty with product registration |
| General | |
| Product Type | Power amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 6 years |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Connections | |

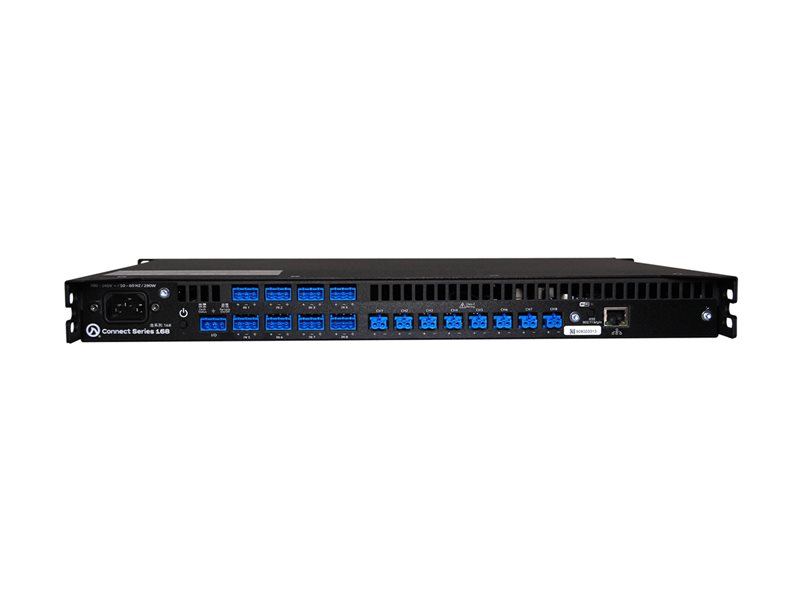

| Connectors | Network (RJ-45) - rear ¦ 8 x balanced audio input (3 pin terminal block) - rear ¦ 8 x speakers output (2 pin terminal block) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 14.3 in |
| Height | 1.7 in |
| Weight | 13.56 lbs |
| Audio System | |
| Functions | Amplifier |
| Amplifier Class | D |
| Equalizer | Yes |
| Digital Sound Processor (DSP) | Yes |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 105 dB - THD - 0.1% |
| Output Channel Qty | 8 channels |
| Output Power (per channel) | 160 Watt |
| Amplifier Output Details | 80 Watt - 2 Ohm - 8 channels ¦ 160 Watt - 4 Ohm - 8 channels ¦ 160 Watt - 8 Ohm - 8 channels ¦ 160 Watt - 8 channels (25V) ¦ 160 Watt - 8 channels (70/100V) |
| Features | Rack mountable, 25V/70V/100V or 2/4/8 Ohm operation, web browser user interface, thermal protection, over current protection, cooling fan |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 22.8 in |
| Depth (Shipping) | 20 in |
| Height (Shipping) | 3.7 in |
| Weight (Shipping) | 17.95 lbs |
| Equalizer | |
| Equalizer Type | Parametric |
| Equalizer Band Qty | 8 bands |
