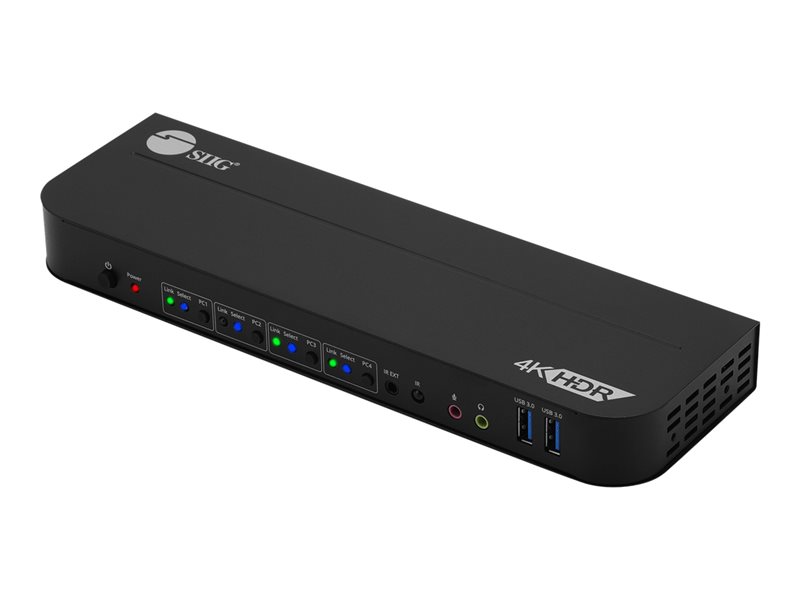

KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
| Main Specifications | |
|---|---|
| Product Description | SIIG 4x1 HDMI 4K HDR KVM USB 3.0 Switch - KVM / audio / USB switch - 4 ports |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | HDMI / USB |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Performance | Video bandwidth: 18 Gbps |
| Features | Metal housing, 4K resolution support, 7.1 channel audio support, Dolby TrueHD support, DTS-HD support, HDR support, switch buttons, 3D support |
| Compliant Standards | HDCP 2.2 |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 9.6 in x 3 in x 1 in |
| Weight | 17.74 oz |
| Color | Black |
| System Requirements | Apple macOS 10.13 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI / USB |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Performance | Video bandwidth: 18 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | Metal housing, 4K resolution support, 7.1 channel audio support, Dolby TrueHD support, DTS-HD support, HDR support, switch buttons, 3D support |
| Compliant Standards | HDCP 2.2 |
| Status Indicators | Online, select |
| Expansion / Connectivity | |

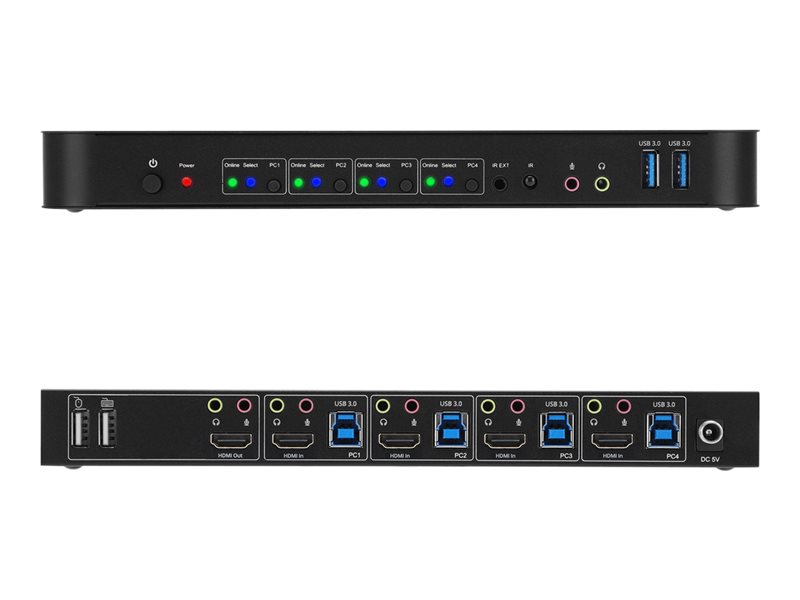

| Interfaces | 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 4 x HDMI Type A ¦ 4 x microphone mini-jack ¦ 4 x audio input mini-jack ¦ 4 x USB 3.2 Gen 1 Type B ¦ 2 x microphone mini-jack console ¦ 1 x HDMI output Type A console ¦ 2 x audio output mini-jack console ¦ 2 x USB 3.2 Gen 1 Type A ¦ 1 x remote selector switches mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |

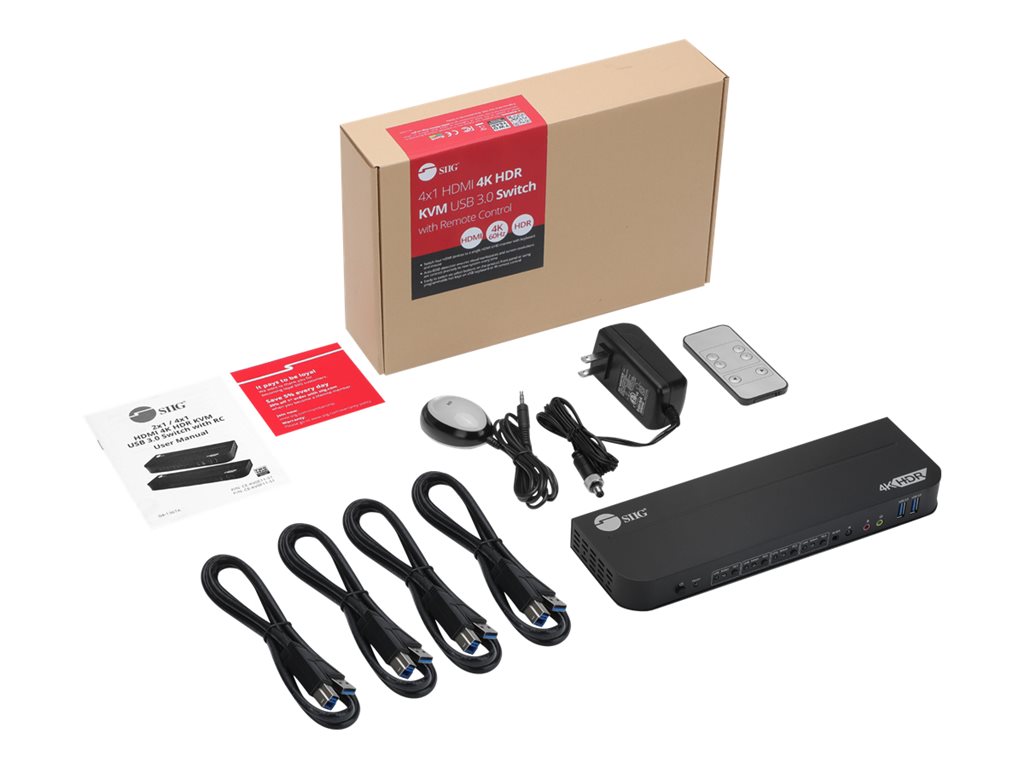

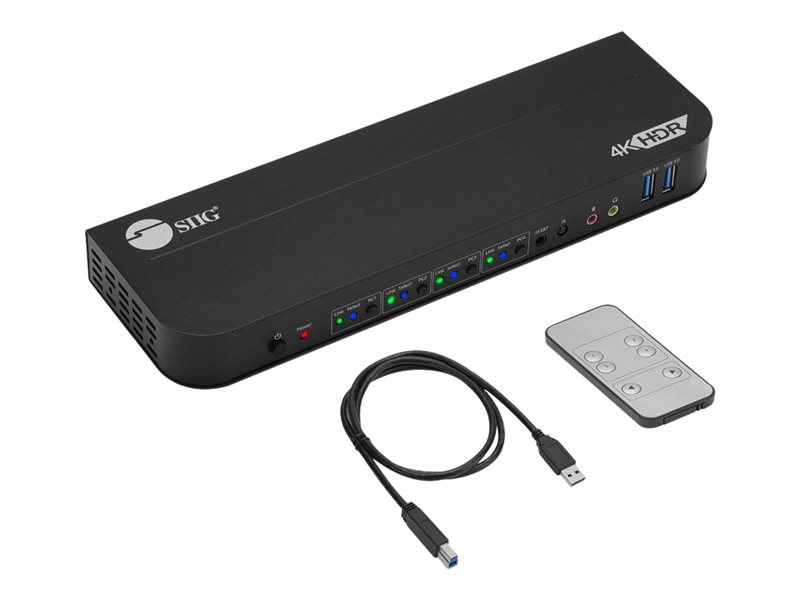

| Included Accessories | IR remote |
| Cables Included | IR extender cable ¦ 4 x USB 3.2 Gen 1 Type A to Type B cable |
| Compliant Standards | HDCP 2.2, FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Software / System Requirements | |
| OS Required | Apple macOS 10.13 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 9.6 in |
| Depth | 3 in |
| Height | 1 in |
| Weight | 17.74 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11 in |
| Shipping Depth | 7.1 in |
| Shipping Height | 2.6 in |
| Shipping Weight | 2.36 lbs |
