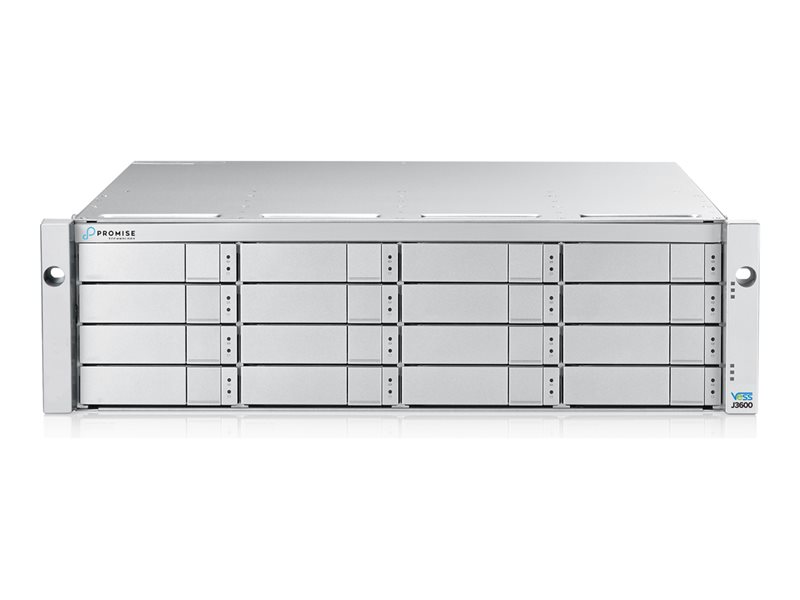

Hard drive array - 288 TB - 16 bays (SATA-600 / SAS-3) - HDD 18 TB x 16 - SAS 12Gb/s (external) - rack-mountable - 3U
| Main Specifications | |
|---|---|
| Product Description | Promise Vess J3000 Series J3600SD - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Total Array Capacity | 288 TB |
| Interface | SAS 12Gb/s |
| Installed Devices / Modules Qty | 16 (installed) / 16 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - RAID JBOD |
| Storage Controller Quantity | 2 |
| Hard Drive | 16 x 18 TB HDD - hot-swap |
| Power | AC 100-240 / DC 180-320 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 20 in x 5.2 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces | 2 x SAS 12Gb/s (input) - Mini SAS HD (SFF-8644) ¦ 2 x SAS 12Gb/s (output) - Mini SAS HD (SFF-8644) ¦ 2 x serial (management) - RJ-11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Vibration-resistant, LED indicator |
| Cables Included | 1 x SFF-8644 to SFF-8644 SAS cable ¦ 1 x serial cable |
| Compliant Standards | RoHS, WEEE, EMC Class A, VCCI, FCC, BSMI, RCM, CB, NTRL |
| Included Accessories | Rack mounting kit |
| Storage | |
| Total Array Capacity | 288 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 / DC 180-320 V |
| Power Provided | 550 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 60 dB |
| Storage Controller | |
| Type | RAID (SAS-3) |
| Installed Qty | 2 |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | JBOD |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 16 x 18 TB |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 20 in |
| Height | 5.2 in |
| Chassis | |
| Installed Devices / Modules Qty | 16 |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SATA-600 / SAS-3 |
