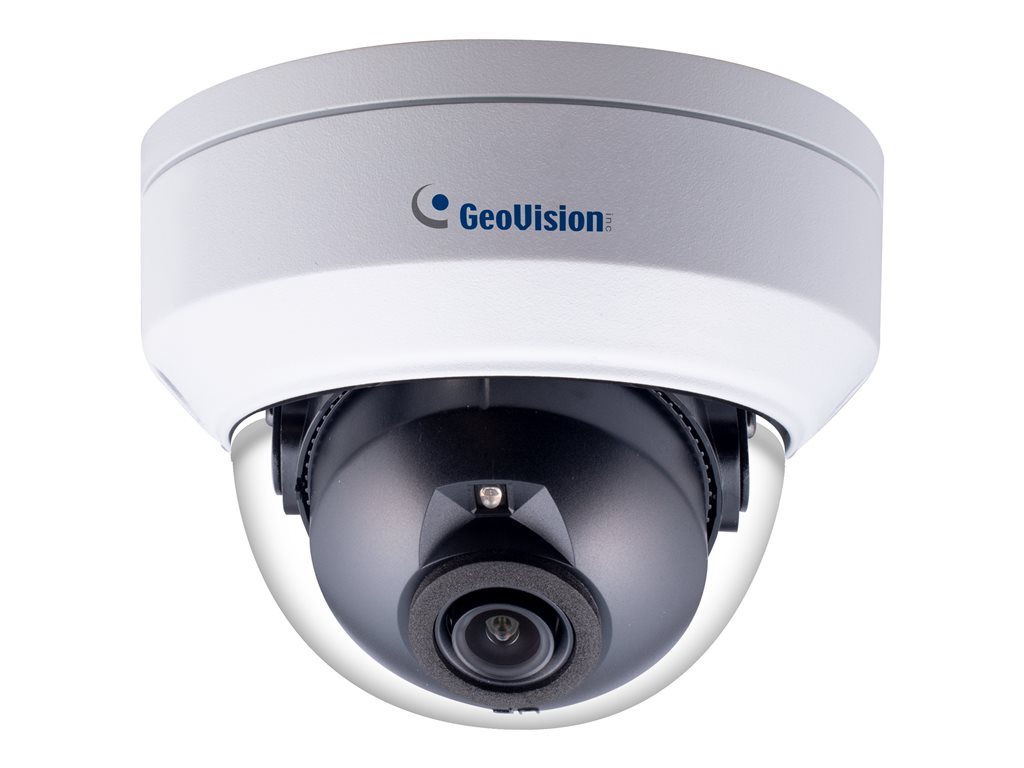

Network surveillance camera - dome - outdoor - vandal / waterproof - color (Day&Night) - 4 MP - 2688 x 1520 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | GeoVision GV-TDR4702 Series GV-TDR4803 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - vandal / waterproof |
| Dimensions (WxDxH) | 4.3 in x 4.3 in x 3.2 in |
| Weight | 14.81 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Optical Sensor Type | CMOS - 1/3" - 4 MP |
| Minimum Illumination | 0.03 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/1.6 - fixed iris |
| Panning Range (degree) | 3 to 360 |
| Tilting Range (degree) | 0 to 68 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, tamper-detection, motion detection, Audio Detection |
| Environmental Parameters (operating) | -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 3.2 in |
| Weight | 14.81 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Miscellaneous | |
| Included Accessories | Screw kit, waterproof rubber set, drill hole template, torx wrench |
| Compliant Standards | FCC, RoHS, UL |
| Power | |
| Power Requirements | DC 12 V / PoE - 1.25 A |
| Power Device | 4.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / waterproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2688 x 1520 |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.03 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | 1 |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Features | ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, tamper-detection, motion detection, Audio Detection |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 fixed iris |
| Horizontal Field of View (degree) | 101 |
| Vertical Field of View (degree) | 55.3 |
| Diagonal Field of View (degree) | 111.1 |
| Image Sensor | |
| Type | 4 MP CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF |
| Panning | |
| Range (degree) | 3 to 360 |
| Tilting | |
| Range (degree) | 0 to 68 |
