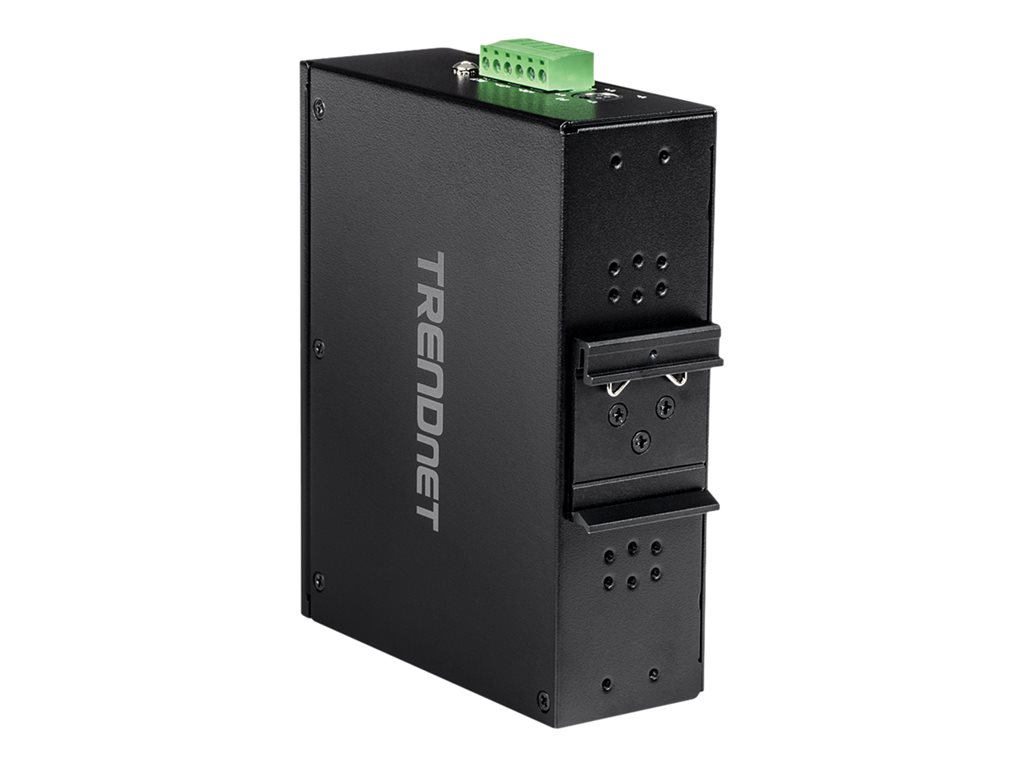

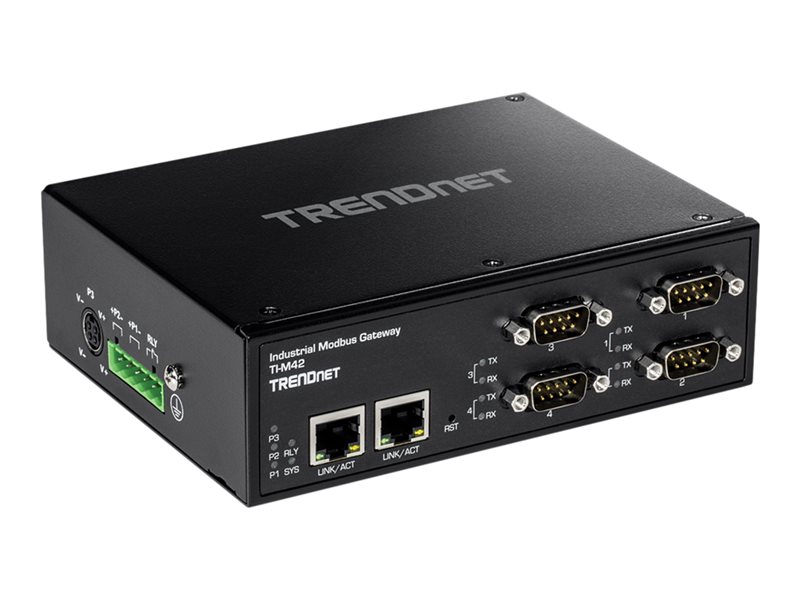

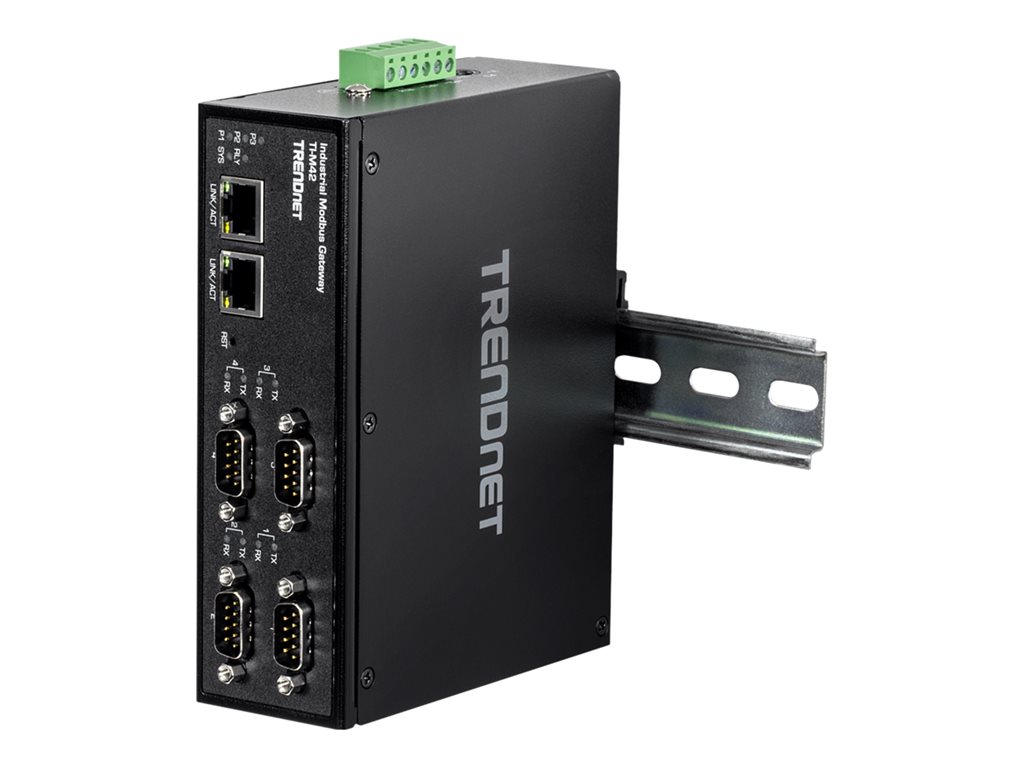

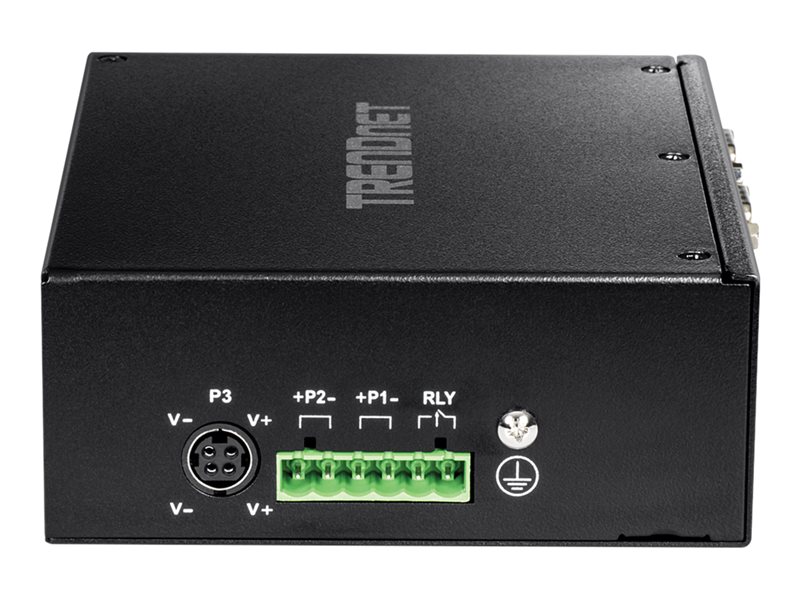

Gateway - industrial - 4 ports - 100Mb LAN, Modbus, RS-442, RS-485, RS-232 - DC power - wall / DIN rail mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-M42 - gateway - industrial - TAA Compliant |
| Device Type | Gateway |
| Form Factor | Wall / DIN rail mountable |
| Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Modbus, RS-442, RS-485, RS-232 |
| Power | DC 12 - 56 V |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 1.2 in x 3.1 in x 4.1 in |
| Weight | 5.43 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Gateway |
| Width | 1.2 in |
| Depth | 3.1 in |
| Height | 4.1 in |
| Weight | 5.43 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232/422/485 - DB-9 ¦ 2 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 535,534 hours |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-5, IP30, UL, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Wall / DIN rail mountable |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Modbus, RS-442, RS-485, RS-232 |
| Remote Management Protocol | Telnet |
| Features | Modbus compatible, metal housing |
| Power | |
| Voltage Required | DC 12 - 56 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 95% |
