Docking station - USB-C 3.2 Gen 1 x 2 - 3 x HDMI, 3 x DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | HyperDrive - docking station - USB-C 3.2 Gen 1 x 2 - 3 x HDMI, 3 x DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.2 Gen 1 x 2 |
| Video Interfaces | 3 x HDMI, 3 x DP |
| Dimensions (WxDxH) | 13.8 in x 2 in x 0.7 in |
| Weight | 10.6 oz |
| Networking | Gigabit Ethernet |
| General | |
| Product Type | Docking station |
| Width | 13.8 in |
| Depth | 2 in |
| Height | 0.7 in |
| Weight | 10.6 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x microSDXC UHS-I ¦ 1 (total) / 1 (free) x SDXC UHS-I Memory Card |

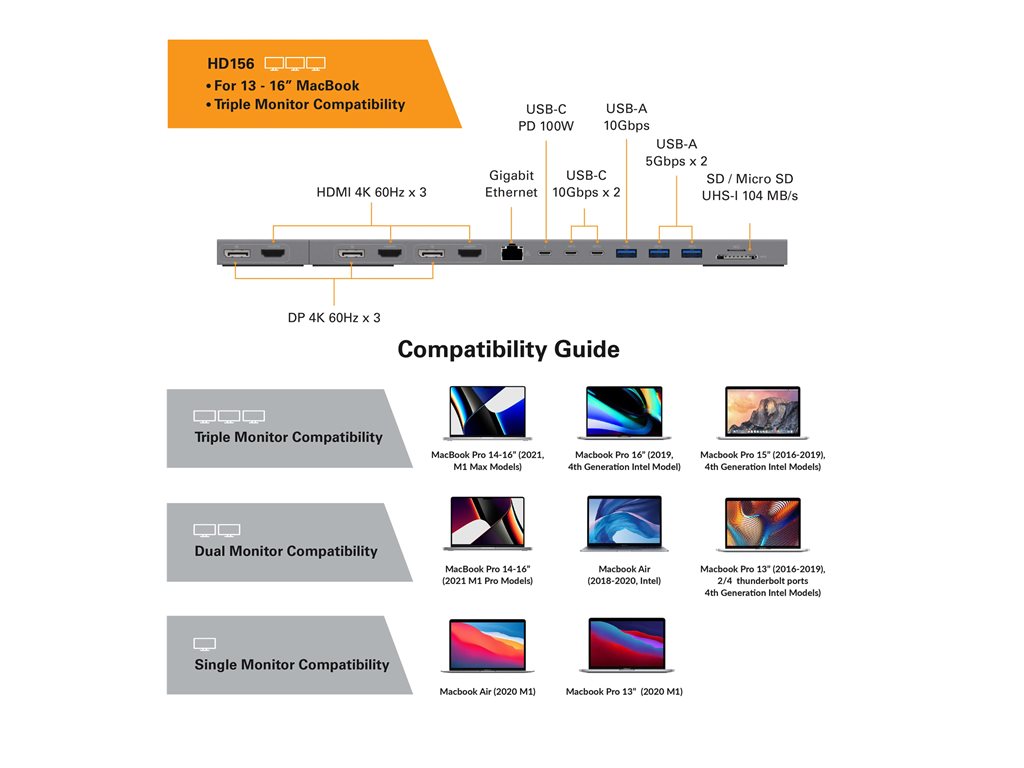

| Interfaces | 3 x audio / video - HDMI - 19 pin HDMI Type A ¦ 3 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 2 x USB-C 3.1 - 24 pin USB-C ¦ 1 x USB 3.1 - 9 pin USB Type A ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - external - 3.9 in |

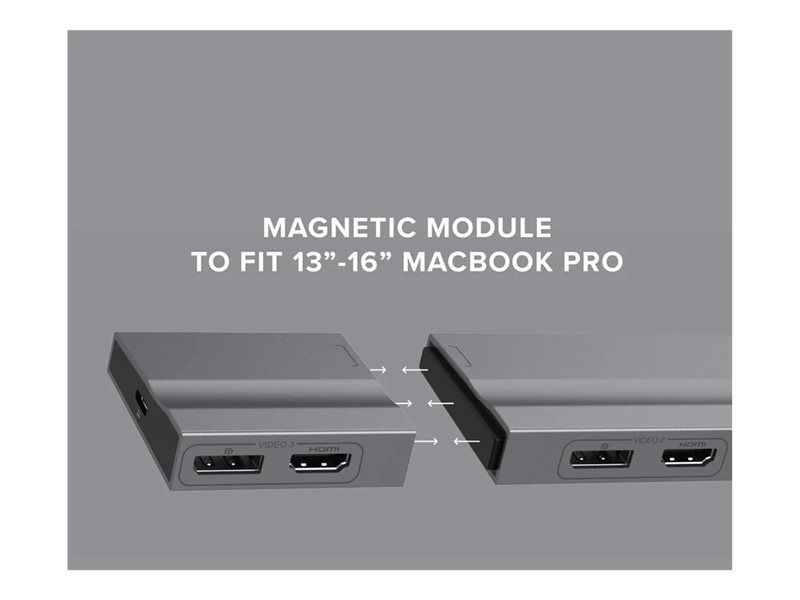

| Features | Aluminum enclosure, 100W power delivery, heat dissipating aluminum chassis, ergonomic, detachable secondary module |
| Compliant Standards | FCC, RoHS, REACH, UKCA |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz (DisplayPort1 and HDMI1 simultaneously (on primary module)) ¦ 7680?x?4320 - 30 Hz (DisplayPort2 only (on primary module)) ¦ 3840 x 2160 - 60 Hz (HDMI2 only (on primary module)) ¦ 3840 x 2160 - 60 Hz (Single Display (on secondary detachable module)) |
| System Requirements | |
| OS Required | Apple MacOS, Microsoft Windows 7 / 8 / 10 |
