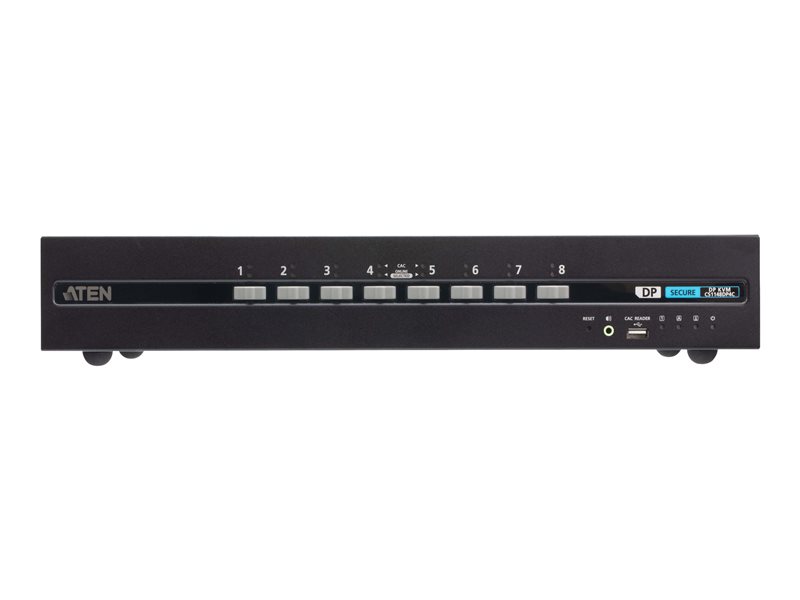

KVM / audio / USB switch - PSD PP v4.0 Compliant, DisplayPort, secure with CAC, dual display - desktop
| Main Specifications | |
|---|---|
| Product Description | ATEN CS1148DP4C - KVM / audio / USB switch - PSD PP v4.0 Compliant, DisplayPort, secure with CAC, dual display - 8 ports |
| Device Type | KVM / audio / USB switch - 8 ports |
| Subtype | KVM |
| Features | Metal housing |
| Power | (50/60 Hz) |
| Dimensions (WxDxH) | 8.1 in x 17 in x 2.6 in |
| Weight | 6.99 lbs |
| General | |
| Device Type | KVM / audio / USB switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | Metal housing |
| Expansion / Connectivity | |
| Interfaces | 2 x USB Type A console ¦ 2 x DisplayPort console ¦ 1 x RJ-11 ¦ 1 x audio mini-jack console ¦ 1 x USB Type A common access card (CAC) ¦ 16 x KVM / USB Type B female ¦ 16 x DisplayPort female ¦ 8 x KVM / audio mini-jack female |
| Miscellaneous | |
| Compliant Standards | PSD PP v4.0 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | (50/60 Hz) |
| Power Consumption Operational | 24.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 8.1 in |
| Depth | 17 in |
| Height | 2.6 in |
| Weight | 6.99 lbs |
