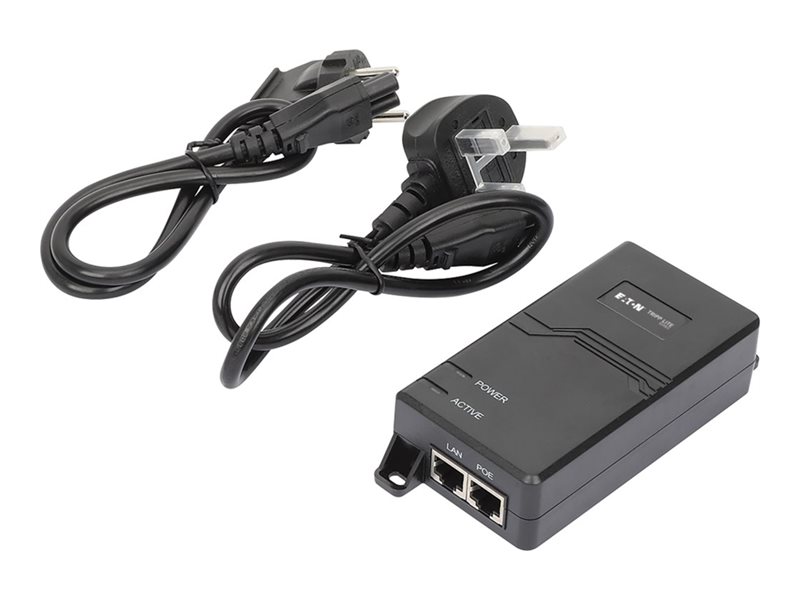

IEEE 802.3at/802.3af, 30W, 1 Port, International Power Cords - PoE injector - AC 100-240 V - 30 Watt - output connectors: 1 - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Gigabit PoE+ Midspan Active Injector - IEEE 802.3at/802.3af, 30W, 1 Port, International Power Cords - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 8.82 oz |
| Input Voltage | AC 100-240 V |
| Power Capacity | 30 Watt |
| Input Connectors | 1 |
| Output connectors | 1 x RJ-45 |
| Included Accessories | 4 power plug adapters |
| Color | Black |
| Dimensions (WxDxH) | 2.6 in x 5.4 in x 1.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 power plug adapters |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, FCC, RoHS, REACH, Plug and Play |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Input Voltage Range | AC 100 - 127 / 200 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 5.4 in |
| Height | 1.4 in |
| Weight | 8.82 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.7 in |
| Shipping Depth | 7 in |
| Shipping Height | 3.5 in |
