4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA - Video/audio extender - over CAT 6 - up to 230 ft - TAA Compliant
| Main Specifications | |
|---|---|

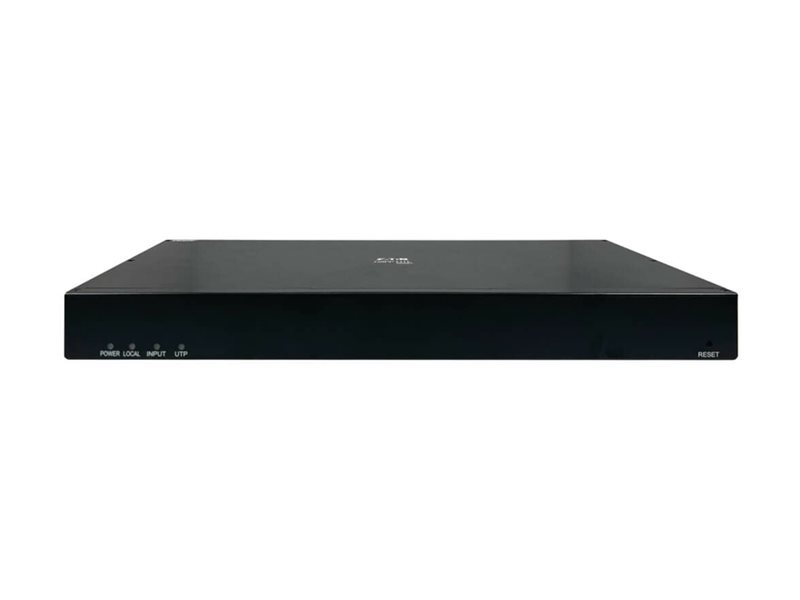

| Product Description | Eaton Tripp Lite Series HDMI over Cat6 Splitter 8-Port - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA - video/audio extender - TAA Compliant |
| Device Type | Video/audio extender |
| Form Factor | Wall / pole mountable / rack mountable |
| Localization | Australia, North America, United Kingdom, Europe |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.3 in x 7.1 in x 1.7 in |
| Weight | 4.63 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: B127A-1P0-PH |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Wall / pole mountable / rack mountable |
| Color | Black |
| Localization | Australia, North America, United Kingdom, Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - Type A female ¦ 8 x network (output) - RJ-45 female ¦ 1 x HDMI (local unit) - Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Mounting Kit | Included |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, UL, TUV, cUL, GS, CCC, FCC, RoHS, REACH |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power |
| Features | 3D support, video mirror mode, 7.1 channel audio support, Dolby TrueHD support, 36-bit Deep Color support, HDR support, 4:4:4 chroma subsampling support |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 7.1 in |
| Height | 1.7 in |
| Weight | 4.63 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Height | 2.2 in |
| Shipping Weight | 5.73 lbs |
| Compatibility Information | |
| Designed For | P/N: B127A-1P0-PH |
