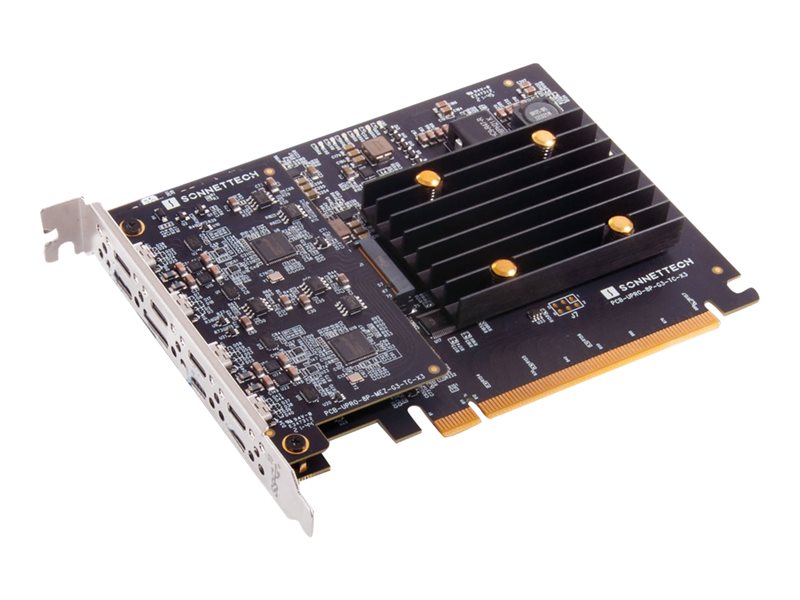

USB adapter - PCIe 3.0 x16 - USB-C 3.2 Gen 2 x 8
| Main Specifications | |
|---|---|
| Product Description | Sonnet Allegro Pro - USB adapter - PCIe 3.0 x16 - USB-C 3.2 Gen 2 x 8 |
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x16 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | USB-C 3.2 Gen 2 x 8 |
| Data Link Protocol | USB 3.2 Gen 2, USB 3.2 Gen 1, USB, USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Processor | 4 x ASMedia ASM3142 |
| Compliant Standards | USB 3.2 Gen 2, USB 3.2 Gen 1, USB 1.1, USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.1 Gen 2, USB 3.2 Gen 2x2 |
| System Requirements | Apple macOS 10.12.6 or later, Linux Kernel 5.4 or later, Ubuntu 20.04.1 or later, Microsoft Windows 10 / 11 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x16 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 8 x USB 3.2 Gen 2 - 24 pin USB-C - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Directive 2015/863, IEC 62368-1, IEC 62368-2, RoHS3 |
| Networking | |
| Ports | USB-C 3.2 Gen 2 x 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 2, USB 3.2 Gen 1, USB, USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Compliant Standards | USB 3.2 Gen 2, USB 3.2 Gen 1, USB 1.1, USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.1 Gen 2, USB 3.2 Gen 2x2 |
| Software / System Requirements | |
| OS Required | Apple macOS 10.12.6 or later, Linux Kernel 5.4 or later, Ubuntu 20.04.1 or later, Microsoft Windows 10 / 11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Processor / Memory | |
| Processor | 4 x ASMedia ASM3142 |
