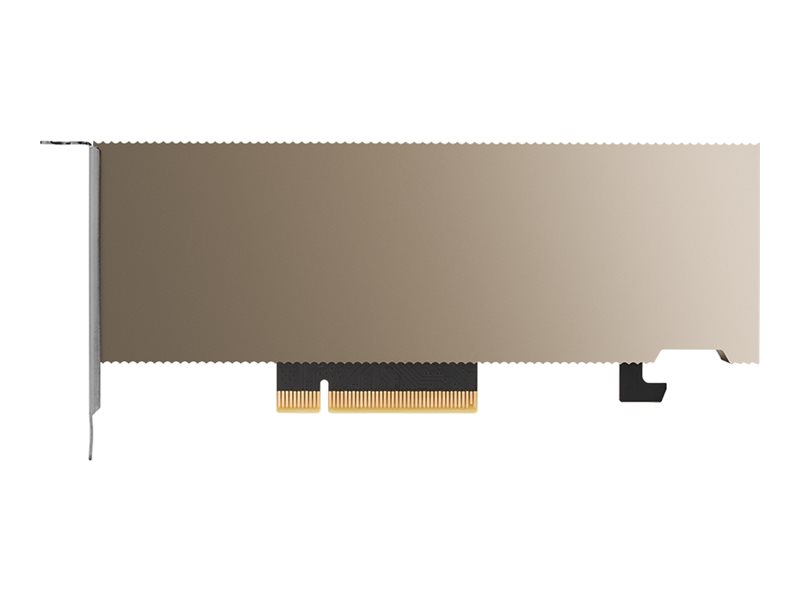

GPU computing processor - A2 - 16 GB GDDR6 - PCIe 4.0 x8 low profile - fanless
| Main Specifications | |
|---|---|
| Product Description | NVIDIA A2 - GPU computing processor - A2 - 16 GB |
| Device Type | GPU computing processor - low profile |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | NVIDIA A2 - up to 72 TOPS |
| Memory | 16 GB GDDR6 |
| Core Clock | 1440 MHz |
| Boost Clock | 1770 MHz |
| CUDA Cores | 1280 |
| Effective Memory Clock | 6251 MHz |
| Memory Interface | 128-bit |
| Fanless | Yes |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| General | |
| Device Type | GPU computing processor - low profile - fanless |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | NVIDIA A2 |
| Core Clock | 1440 MHz |
| Boost Clock | 1770 MHz |
| CUDA Cores | 1280 |
| Features | NVIDIA Ampere GPU technology, 3rd gen Tensor Cores, 2nd gen Ray Tracing Cores, 4.5 Tflops peak single precision (FP32) performance, 18 Tflops peak half precision (FP16) performance, 10 NVIDIA RT Cores |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 6251 MHz |
| Bus Width | 128-bit |
| Bandwidth | 200 GBps |
| Miscellaneous | |
| Power Consumption Operational | 60 watt |
| Included Accessories | ATX bracket |
| Software Included | NVIDIA AI Enterprise, VCS Control, NVIDIA Virtual PC, NVIDIA Virtual Applications, NVIDIA RTX Virtual Workstation, NVIDIA Virtual Compute Server |
| Compliant Standards | RoHS |
| Depth | 6.6 in |
| Height | 2.7 in |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% |
| System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat CoreOS 4.7, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Linux 6.6 or later, SUSE Linux Enterprise Server 15 SP2, SuSE Linux Enterprise Server 12 SP3 or later, Ubuntu 14.04 LTS, Ubuntu 16.04, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Performance | |
| NPU Performance Up To (TOPS) | 72 TOPS |
| AI Datatype Support on NPU | INT4, INT8 |
